Ferris 0.1 Low
Ferris family: Ferris 0.1 Base · Ferris 0.1 Compact · Ferris 0.1 High · Ferris 0.1 Low · Ferris 0.2 Bling · Ferris 0.2 Compact · Ferris 0.2 High · Ferris 0.2 Mini
34 keys split
Kailh Mini Choc soldered ATmega32U4 QMK

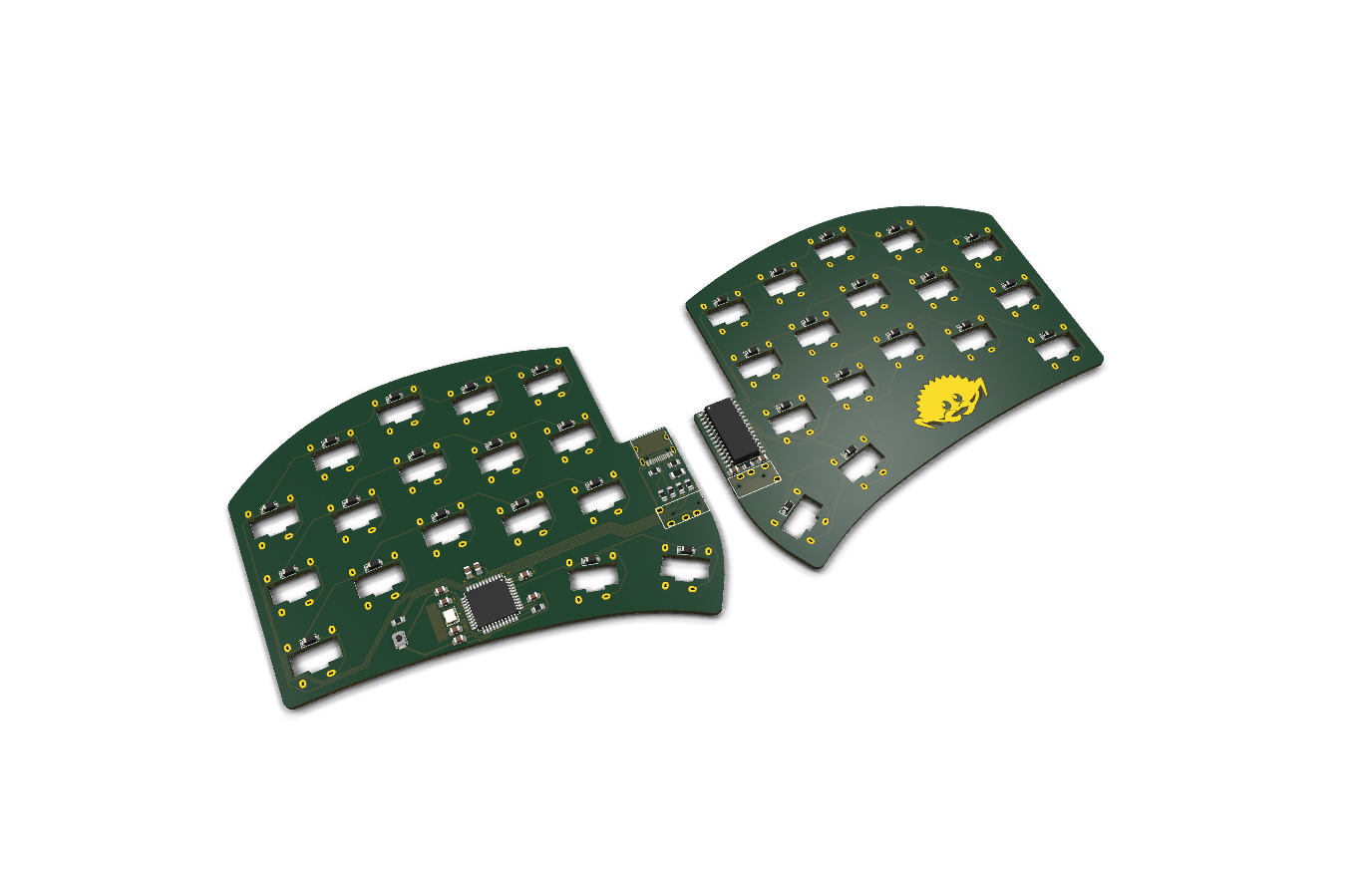

ferris.kicad_pcb.
No switches or keycaps: this is the board as manufactured.
What fits this board → Compare with another board →
Record 78% complete · 14 of 18 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware license
- ✓ Firmware license
- ✓ Documentation license
- ✓ Key pitch
- ✓ Soldering
- ✓ Soldered MCU
- ✗ Firmware targets
- ✗ Summary
- ✗ Key wiring
- ✗ Switch sockets
- ✓ Splay
- ✓ Stagger
No summary recorded.
Layouts
- 34 keys
Spec
Shape
- Body
- split, 2 halves (left and right PCBs differ, order both)
- Split link
- TRRS cable
- Splay
- no
- Stagger
- column-staggered
- Key spacing
- MX spacing · 19.05 × 19.05 mm
Switches
- Switch footprint
- Kailh Mini Choc
- Switch sockets
- — not recorded —
Electronics
- Controller
- soldered ATmega32U4
- Connectivity
- Wired — the soldered ATmega32U4 has no radio
- USB port
- USB-C
- Firmware
- QMK (ferris/0_1)
- Firmware targets
- — not recorded —
- Key wiring
- — not recorded —
- Room for
- — not recorded —
Building it
- Build method
- PCB
- Soldering
- SMD, fine-pitch (USB)
- SMD required
- yes
Licensing
- Hardware
- Solderpad 2.1
- Firmware
- GPL-3.0-or-later
- Documentation
- CC0 1.0
