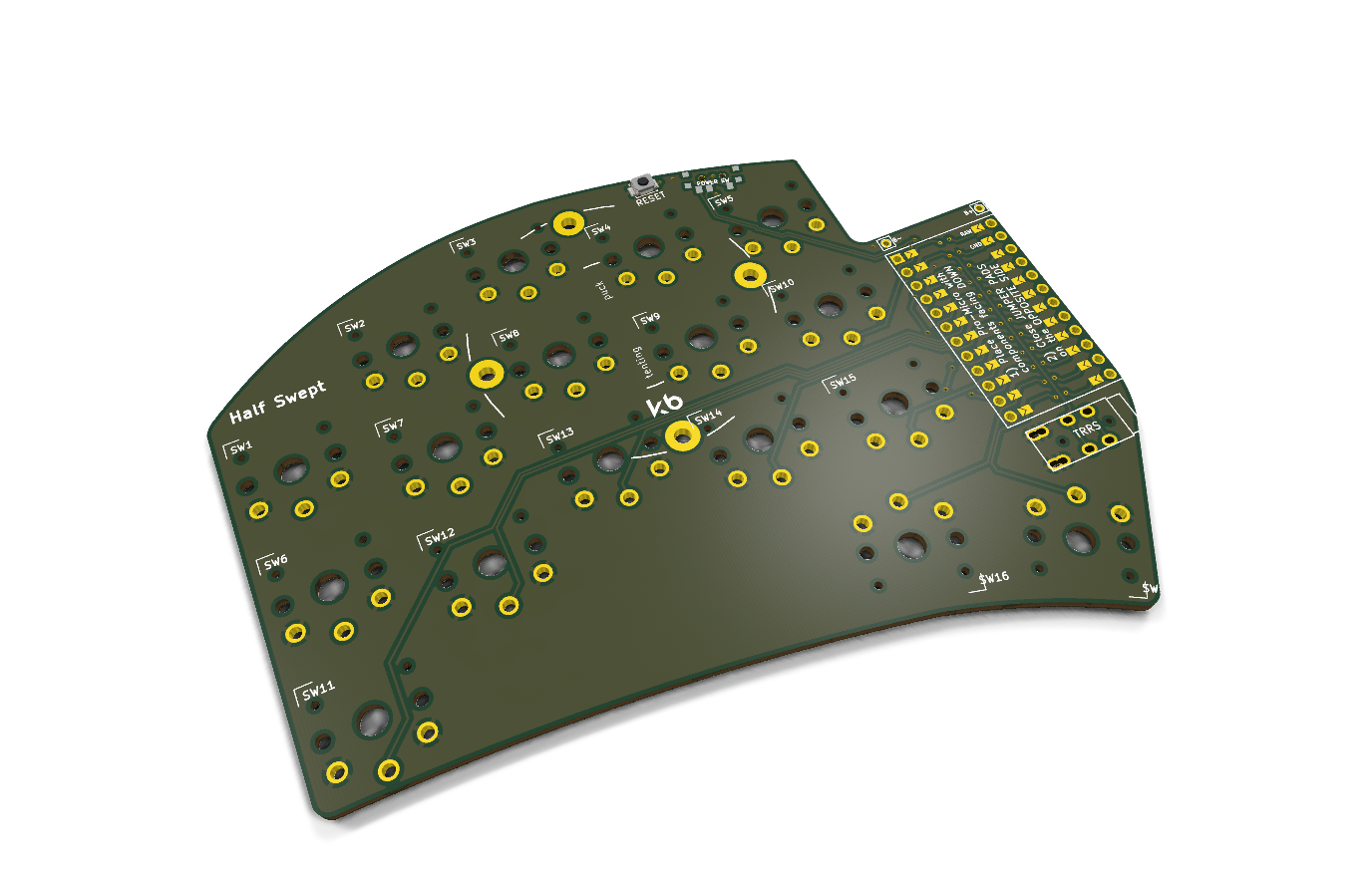

Sweep Half Swept

by davidphilipbarr

34 keys split, 2 halves, TRRS cable between halves

Choc v1 Pro Micro socket ZMK

What fits this board →

No summary recorded.

Layouts

• 34 keys

Spec

Stars

2,114 · checked today

Key spacing

— not recorded —

Build method

PCB

Soldering

— not recorded —

SMD required

— not recorded —

Controller

Pro Micro socket

Body

split, 2 halves, TRRS cable between halves

Switch footprint

Choc v1

Firmware

ZMK (cradio)

Firmware targets

— not recorded —

Key wiring

— not recorded —

Room for

— not recorded —

Licensing

Hardware

Apache-2.0

Firmware

Apache-2.0

Documentation

Apache-2.0

Sources

• https://github.com/davidphilipbarr/sweep
