Sweep High
from the Sweep family
34 keys split
Alps / Choc v1 / MX Pro Micro socket ZMK

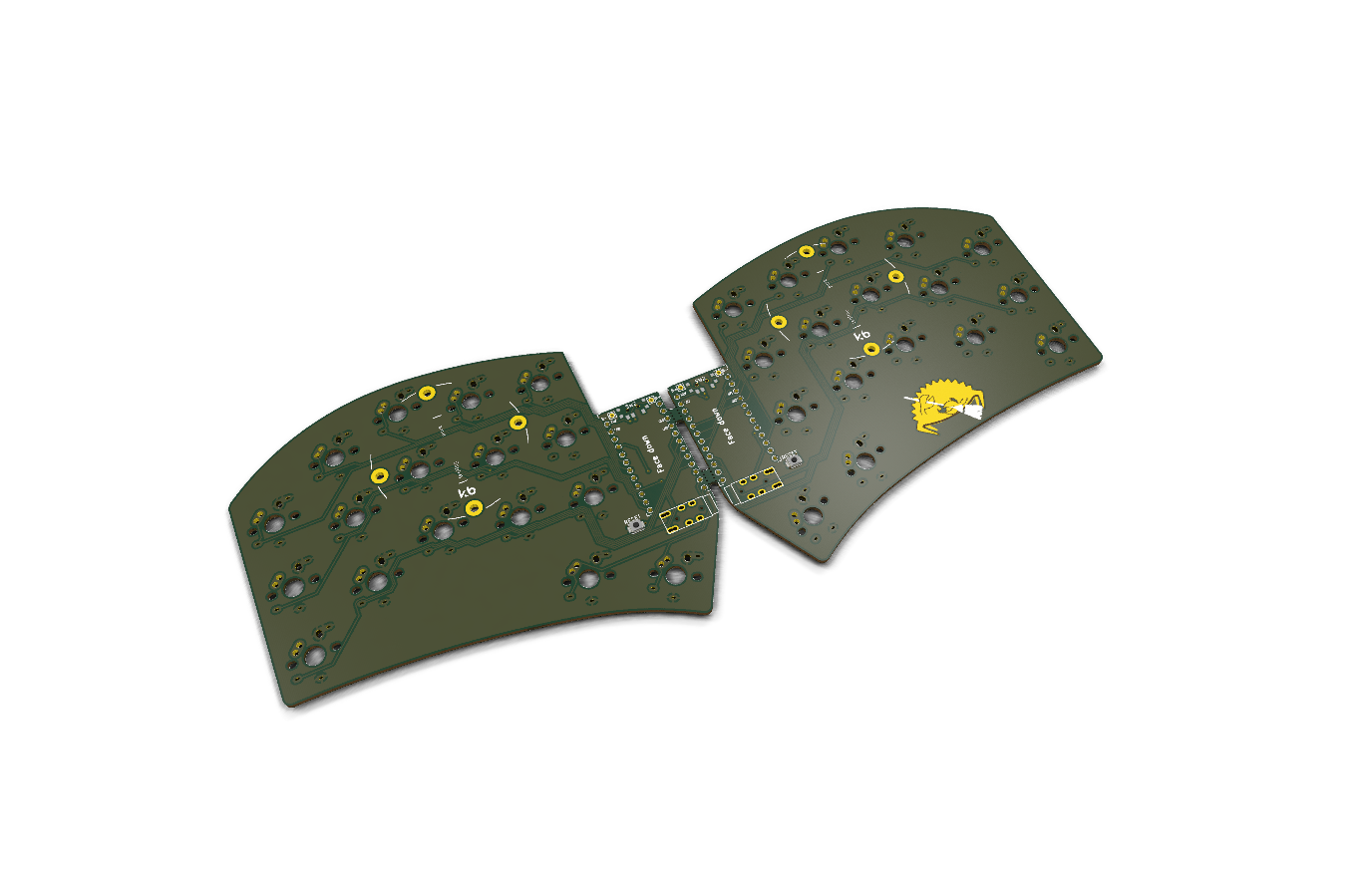

sweep-high.kicad_pcb.
No switches or keycaps: this is the board as manufactured.
What fits this board → Compare with another board →
Record 94% complete · 15 of 16 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware license
- ✓ Firmware license
- ✓ Documentation license
- ✓ Key pitch
- ✓ Soldering
- ✗ Summary
- ✓ Key wiring
- ✓ Hotswap
- ✓ Splay
- ✓ Stagger
No summary recorded.
Layouts
- 34 keys
Spec
Shape
- Body
- split, 2 halves
- Split link
- TRRS cable
- Splay
- no
- Stagger
- column-staggered
- Key spacing
- MX spacing · 19.05 × 19.05 mm
Switches
- Switch footprint
- Alps, Choc v1, MX
- Hotswap
- No, the switches solder in
Electronics
- Controller
- Pro Micro socket
- Connectivity
- Wireless with a nice!nano v2, or 6 other controllers
- USB port
- USB-C or micro-USB, depends on the dev board
- Firmware
- ZMK (cradio)
- Firmware targets
- — not recorded —
- Key wiring
- 17 direct pins per half
- Room for
- — not recorded —
- Power switch
- yes
- Exposed components
- — not recorded —
Building it
- Build method
- PCB
- Soldering
- through-hole (connector)
- SMD required
- no
Licensing
- Hardware
- Solderpad 2.1
- Firmware
- all rights reserved — no license stated
- Documentation
- all rights reserved — no license stated
