Sweep 2
Sweep family: Sweep 2 · Sweep Bling LP · Sweep Bling MX · Sweep Half Swept · Sweep High · Sweep High M
34 keys split
Choc v1 Pro Micro socket ZMK
sweepv2.kicad_pcb.

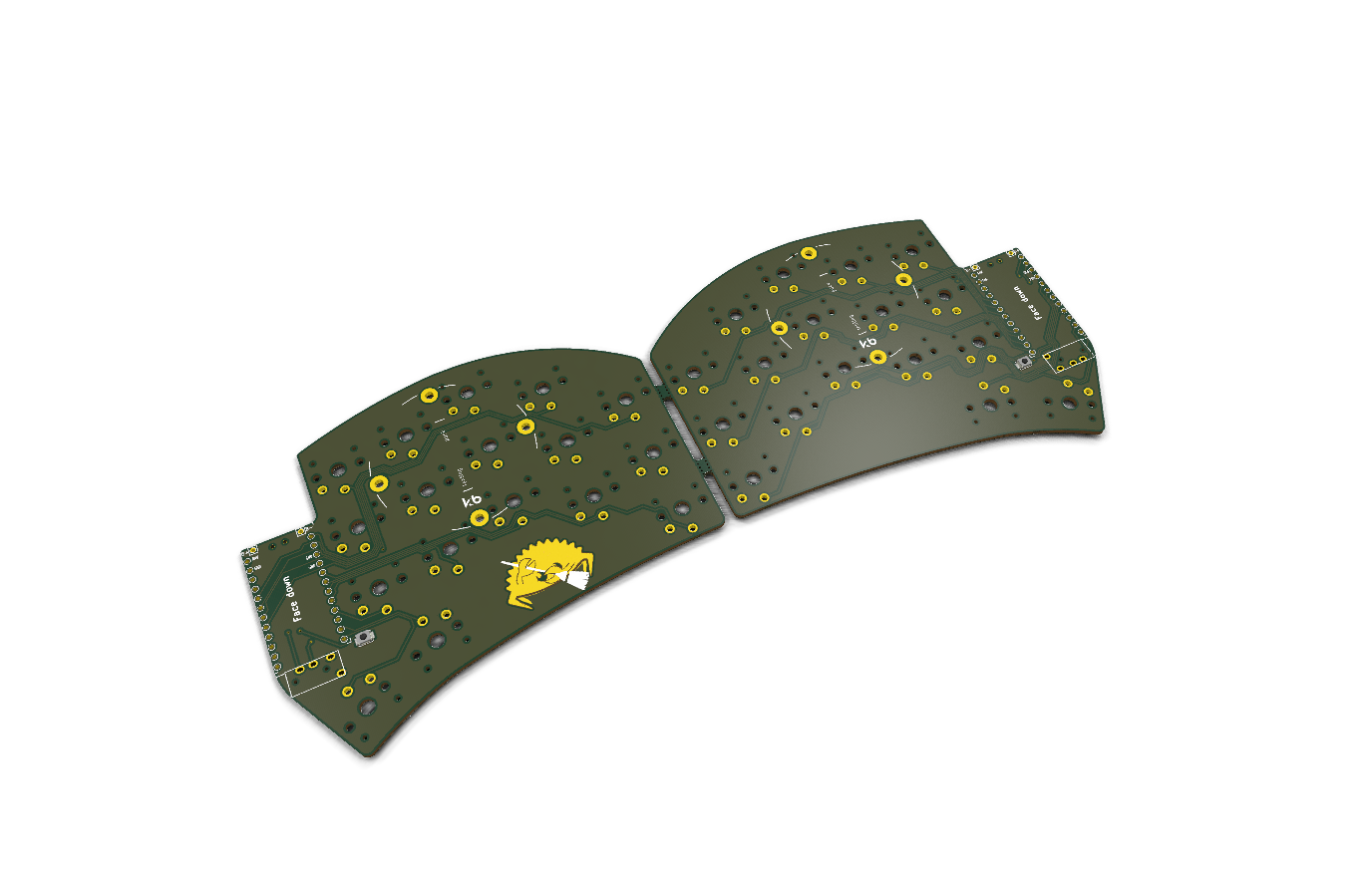

No switches or keycaps: this is the board as manufactured.
What fits this board → Compare with another board →
Record 88% complete · 14 of 16 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware license
- ✓ Firmware license
- ✓ Documentation license
- ✓ Key pitch
- ✓ Soldering
- ✗ Summary
- ✗ Key wiring
- ✓ Switch sockets
- ✓ Splay
- ✓ Stagger
No summary recorded.
Layouts
- 34 keys
Spec
Shape
- Body
- split, 2 halves
- Split link
- TRRS cable
- Splay
- no
- Stagger
- column-staggered
- Key spacing
- 18 × 17 mm · reduced keycaps only (MBK and similar)
Switches
- Switch footprint
- Choc v1
- Switch sockets
- Mill-Max
Electronics
- Controller
- Pro Micro socket
- Connectivity
- Wireless with a nice!nano v2, or 6 other controllers
- USB port
- USB-C or micro-USB, depends on the dev board
- Firmware
- ZMK (cradio)
- Firmware targets
- — not recorded —
- Key wiring
- — not recorded —
- Room for
- — not recorded —
Building it
- Build method
- PCB
- Soldering
- through-hole (connector)
- SMD required
- no
Licensing
- Hardware
- Apache-2.0
- Firmware
- Apache-2.0
- Documentation
- Apache-2.0
