Unicorne

by yanghu · ★ 63 · checked 18 days ago

44 keys unibody

MX soldered STM32F411 QMK

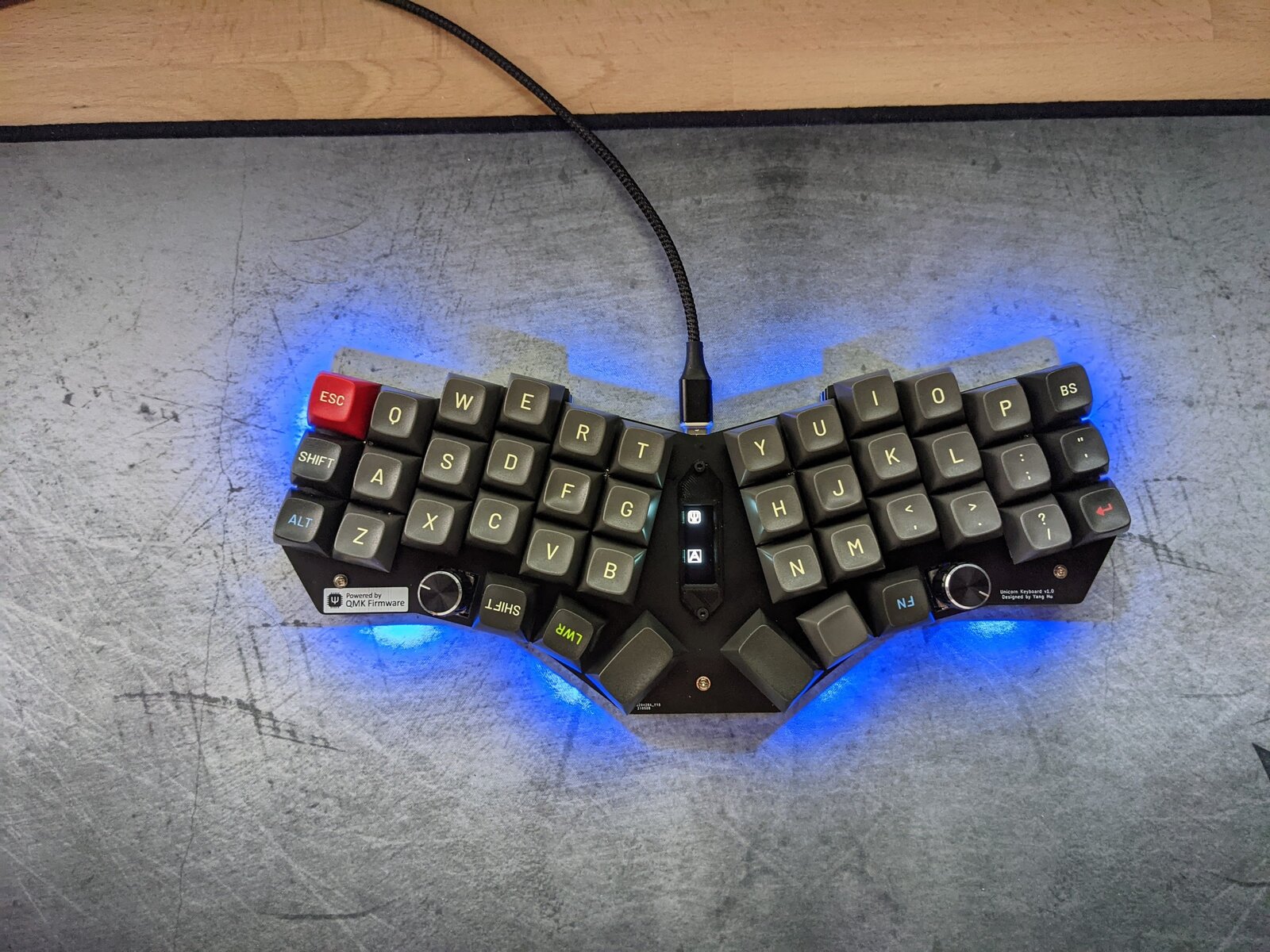

Photo of an assembled Unicorne — An assembled Unicorne, from the project's own README.

What fits this board → Compare with another board →

Record 89% complete · 16 of 18 fields

✓ Layout
✓ Switch footprint
✓ Build method
✓ Controller
✓ Body
✓ Firmware
✓ Hardware licence
✓ Firmware licence
✓ Documentation licence
✓ Key pitch
✓ Soldering
✓ Soldered MCU
✗ Firmware targets
✗ Summary
✓ Key wiring
✓ Switch sockets
✓ Splay
✓ Stagger

No summary recorded.

Layouts

44 keys

Spec

Shape

Body: unibody
Splay: no
Stagger: column-staggered
Key spacing: 19.05 mm · MX-stem keycaps (OEM, SA, XDA, Cherry)

Switches

Switch footprint: MX
Switch sockets: hotswap

Electronics

Controller: soldered STM32F411
Connectivity: Wired — the soldered STM32F411 has no radio
USB port: USB-C
Firmware: QMK (yanghu/unicorne/f411)
Firmware targets: — not recorded —
Key wiring: 4×12 matrix, column-to-row diodes
Room for: display encoder speaker

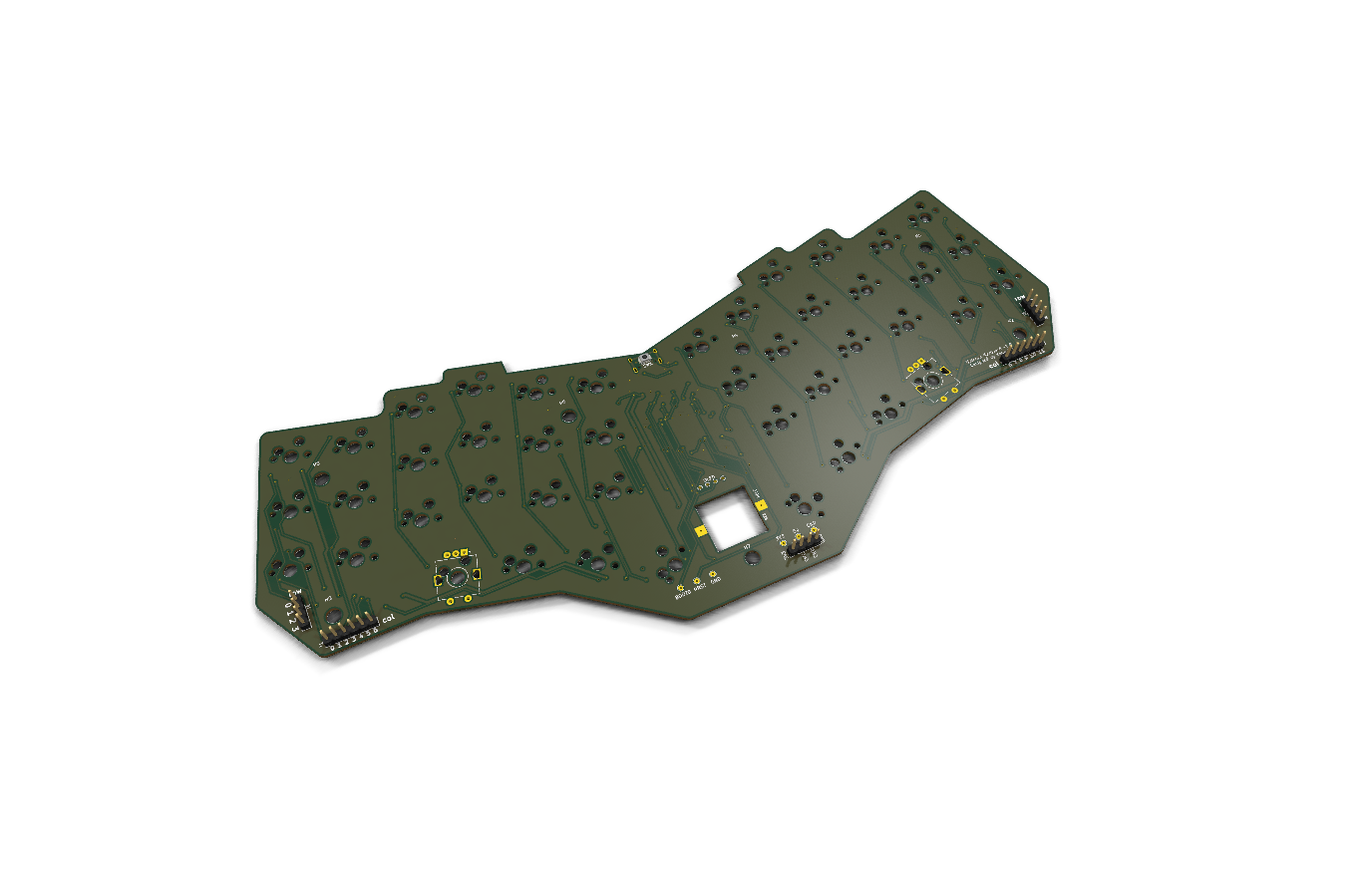

Building it

Build method: PCB
Soldering: SMD, fine-pitch (MCU, USB, IC)
SMD required: yes

Licensing

Hardware: MIT
Firmware: MIT
Documentation: MIT

Sources

https://github.com/yanghu/unicorne
