unicorn f072

by yanghu · ★ 63 · checked today ·

44 keys unibody

MX soldered STM32F072

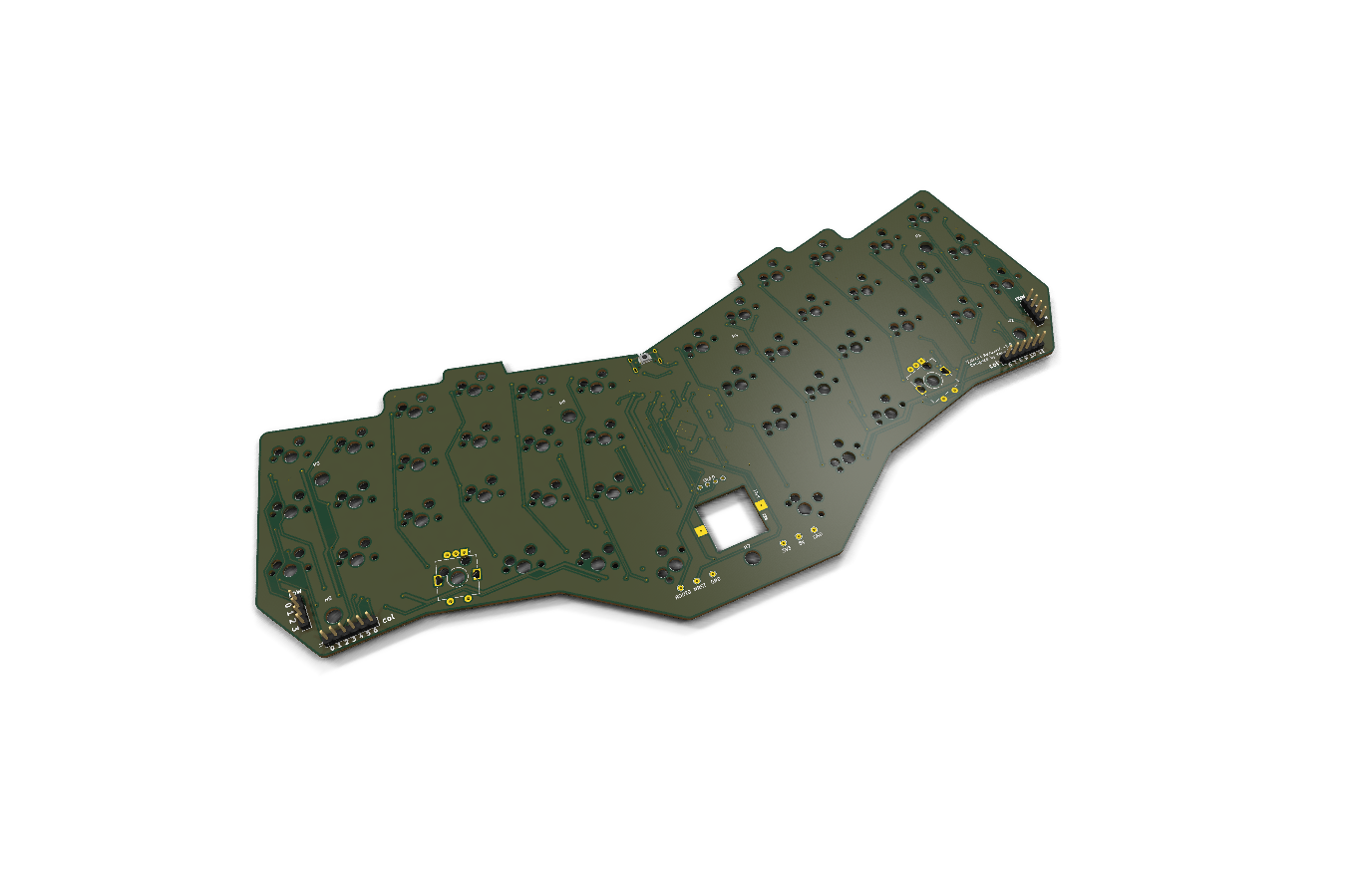

Photo of an assembled unicorn f072 — An assembled unicorn f072, from the project's own README.

What fits this board → Compare with another board →

Record 88% complete · 14 of 16 fields

✓ Layout
✓ Switch footprint
✓ Build method
✓ Controller
✓ Body
✓ Hardware license
✓ Firmware license
✓ Documentation license
✓ Key pitch
✓ Soldering
✓ Soldered MCU
✗ Summary
✗ Key wiring
✓ Hotswap
✓ Splay
✓ Stagger

No summary recorded.

Layouts

44 keys

Spec

Shape

Body: unibody
Splay: no
Stagger: column-staggered
Key spacing: MX spacing · 19.05 × 19.05 mm

Switches

Switch footprint: MX
Hotswap: Kailh socket, Gateron socket

Electronics

Controller: soldered STM32F072
Connectivity: Wired — the soldered STM32F072 has no radio
USB port: USB-C
Firmware: — not recorded —
Key wiring: — not recorded —
Room for: display, encoder, speaker
Power switch: no
Exposed components: no

Building it

Build method: PCB
Soldering: SMD, fine-pitch (MCU, USB, IC)
SMD required: yes

Licensing

Hardware: MIT
Firmware: MIT
Documentation: MIT

Sources

https://github.com/yanghu/unicorne
