G35

by kaylynb · ★ 0 · checked today ·

35 keys unibody

MX soldered ATmega32U4 QMK

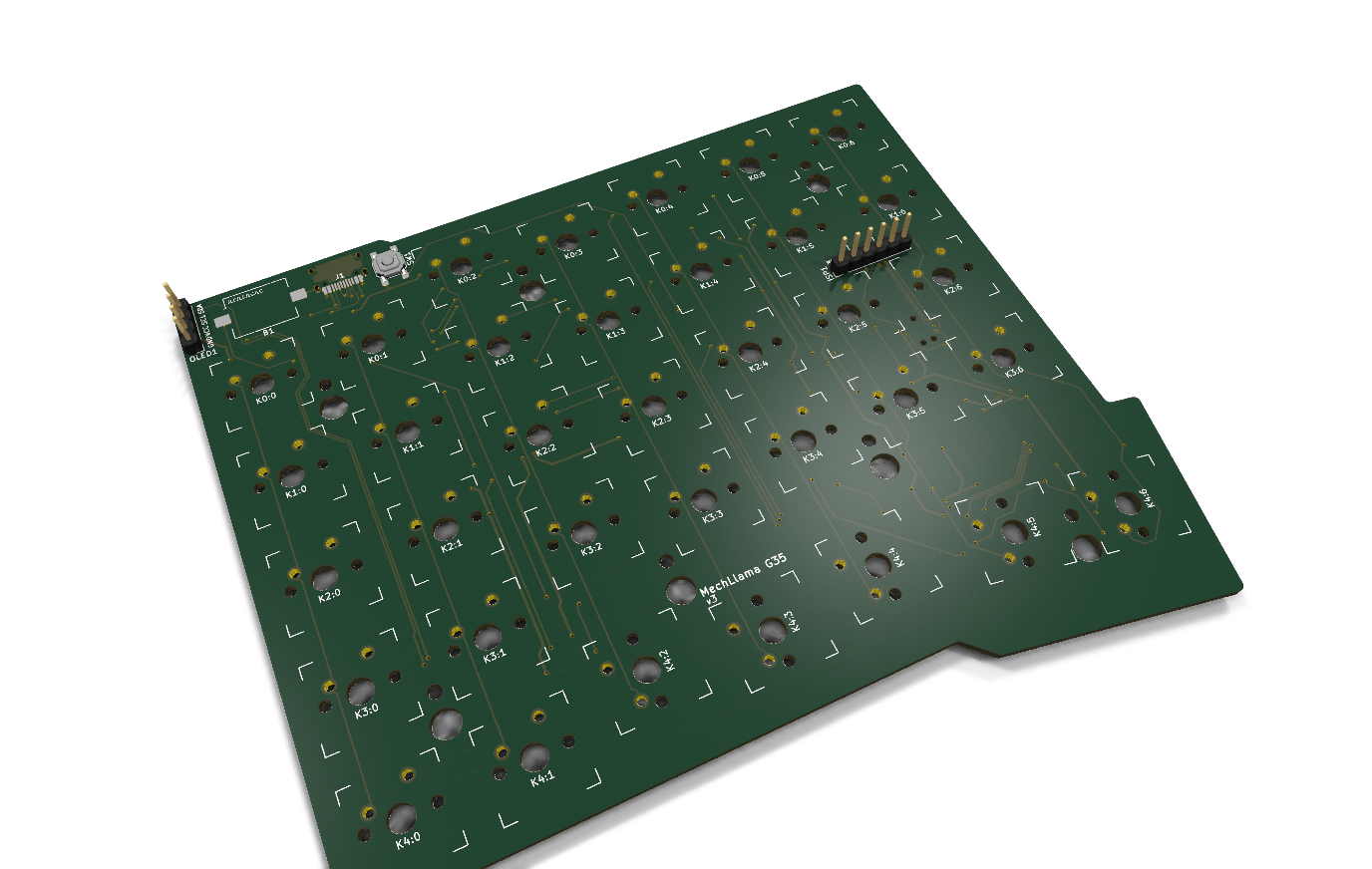

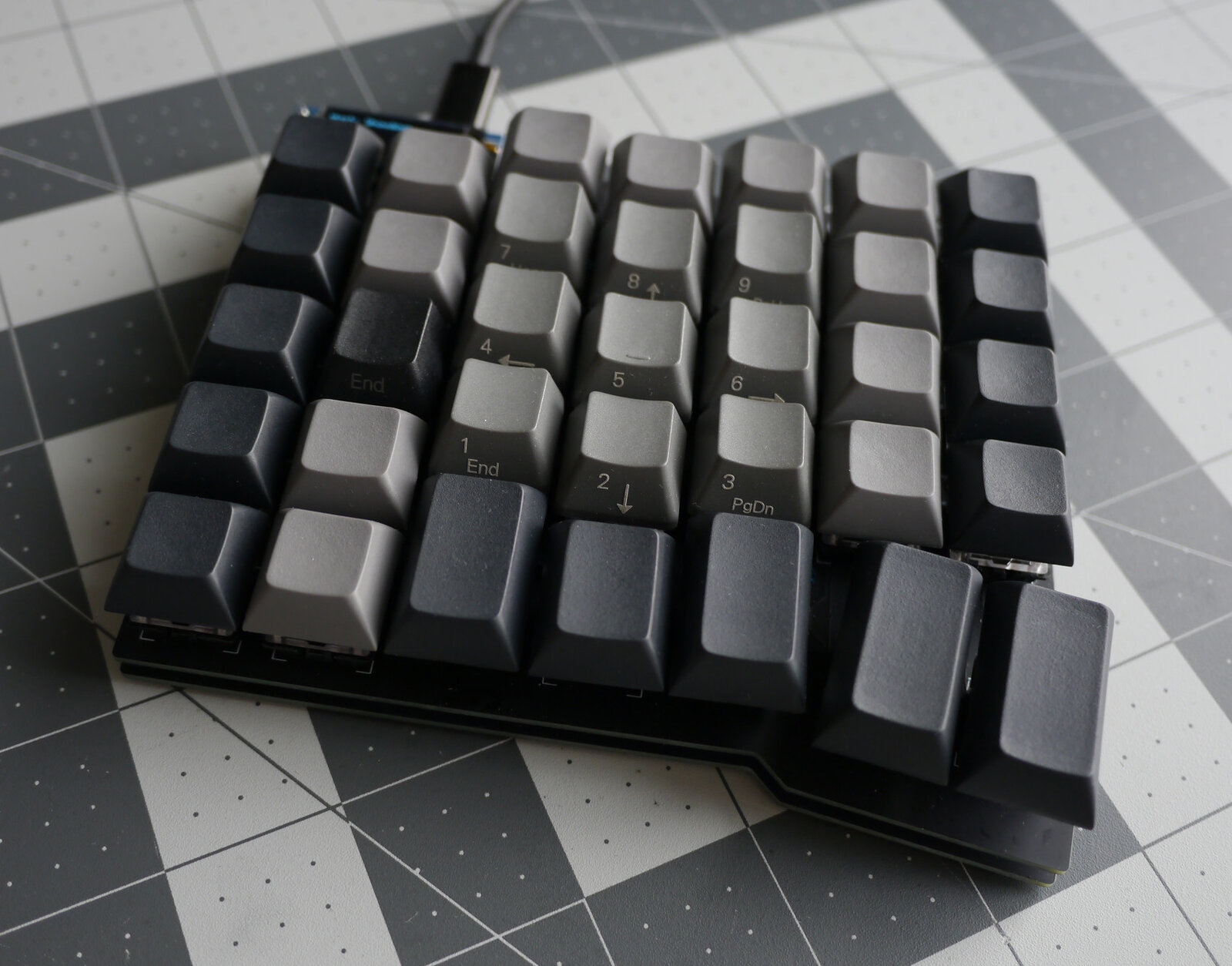

Photo of an assembled G35 — An assembled G35, from the project's own README.

What fits this board → Compare with another board →

Record 100% complete · 18 of 18 fields

✓ Layout
✓ Switch footprint
✓ Build method
✓ Controller
✓ Body
✓ Firmware
✓ Hardware license
✓ Firmware license
✓ Documentation license
✓ Key pitch
✓ Soldering
✓ Soldered MCU
✓ Firmware targets
✓ Summary
✓ Key wiring
✓ Hotswap
✓ Splay
✓ Stagger

A 35 key left-handed columnar layout macropad.

From the project’s README · https://github.com/kaylynb/mechllama-g35

Layouts

35 keys

Spec

Shape

Body: unibody
Splay: no
Stagger: ortholinear
Key spacing: MX spacing · 19.05 × 19.05 mm

Switches

Switch footprint: MX
Hotswap: Mill-Max, or solder the switches in

Electronics

Controller: soldered ATmega32U4
Connectivity: Wired — the soldered ATmega32U4 has no radio
USB port: USB-C
Firmware: QMK (mechllama/g35/v1), QMK (mechllama/g35/v2)
Firmware targets: ATmega32U4
Key wiring: 5×7 matrix, column-to-row diodes
Room for: display, speaker
Power switch: no
Exposed components: no

Building it

Build method: PCB
Soldering: SMD, fine-pitch (USB)
SMD required: yes

Licensing

Hardware: MIT
Firmware: MIT
Documentation: MIT

Sources

https://github.com/kaylynb/mechllama-g35
