KLOR
42 / 40 / 38 / 36 keys split
MX Pro Micro socket QMK
What fits this board → Compare with another board →
Record 100% complete · 17 of 17 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware license
- ✓ Firmware license
- ✓ Documentation license
- ✓ Key pitch
- ✓ Soldering
- ✓ Firmware targets
- ✓ Summary
- ✓ Key wiring
- ✓ Hotswap
- ✓ Splay
- ✓ Stagger

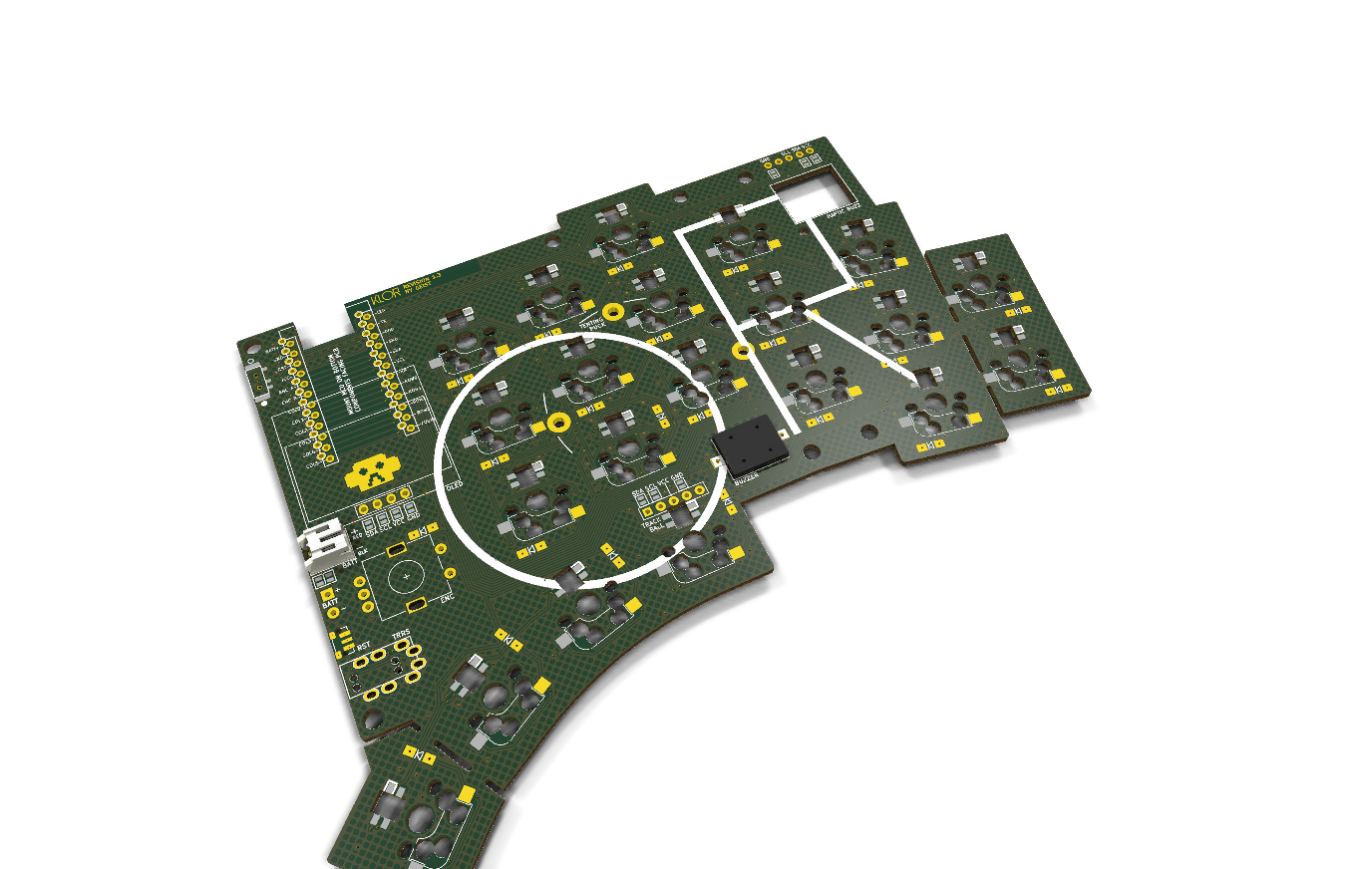

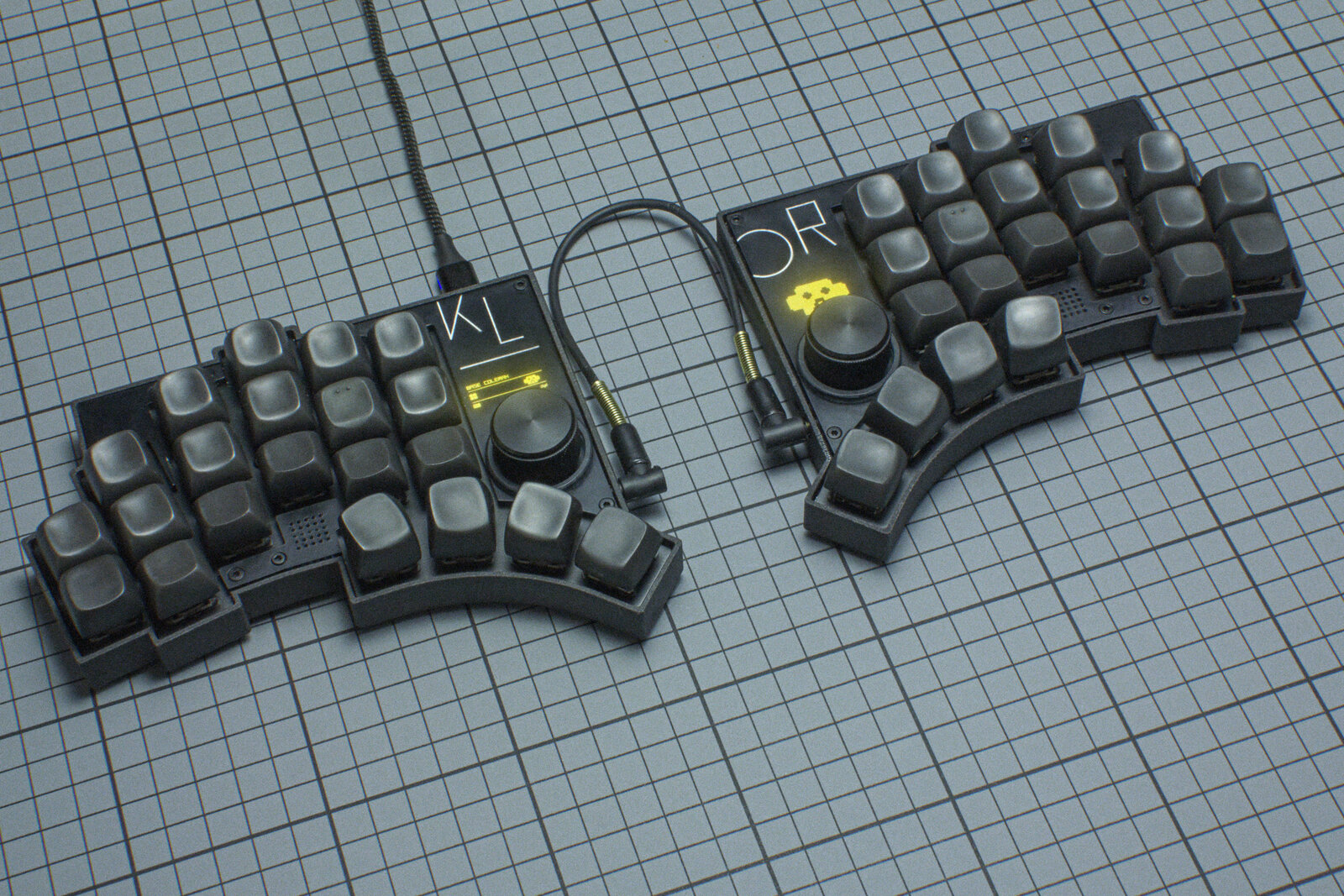

KLOR is a 36-42 key column-staggered split keyboard. It supports a per-key RGB matrix, encoders, OLED displays, haptic feedback, speakers, a Pixart Paw3204 trackball, the SplitKB tenting puck, and four different layouts, through break-off parts.
Layouts
- 42 keys — Polydactyl
- 40 keys — Konrad
- 38 keys — Yubitsume
- 36 keys — Saegewerk
Spec
Shape
- Body
- split, 2 halves
- Split link
- TRRS cable
- Splay
- yes
- Stagger
- column-staggered
- Key spacing
- MX spacing · 19.05 × 19.05 mm
Switches
- Switch footprint
- MX
- Hotswap
- Kailh socket, Gateron socket
Electronics
- Controller
- Pro Micro socket
- Connectivity
- Wireless with a nice!nano v2 — needs a ZMK config
- USB port
- USB-C or micro-USB, depends on the dev board
- Firmware
- QMK (geigeigeist/klor)
- Firmware targets
- ATmega32U4
- Key wiring
- 4×6 matrix per half, column-to-row diodes
- Room for
- display, encoder, haptic, speaker, trackball
- Power switch
- yes
- Exposed components
- no
Building it
- Build method
- PCB
- Soldering
- SMD, hand-solderable (LED)
- SMD required
- yes
Licensing
- Hardware
- GPL-3.0-or-later
- Firmware
- GPL-3.0-or-later
- Documentation
- GPL-3.0-or-later
