plain60 c
65 / 64 / 63 / 62 / 61 / 60 keys unibody
MX soldered ATmega32U4 QMK

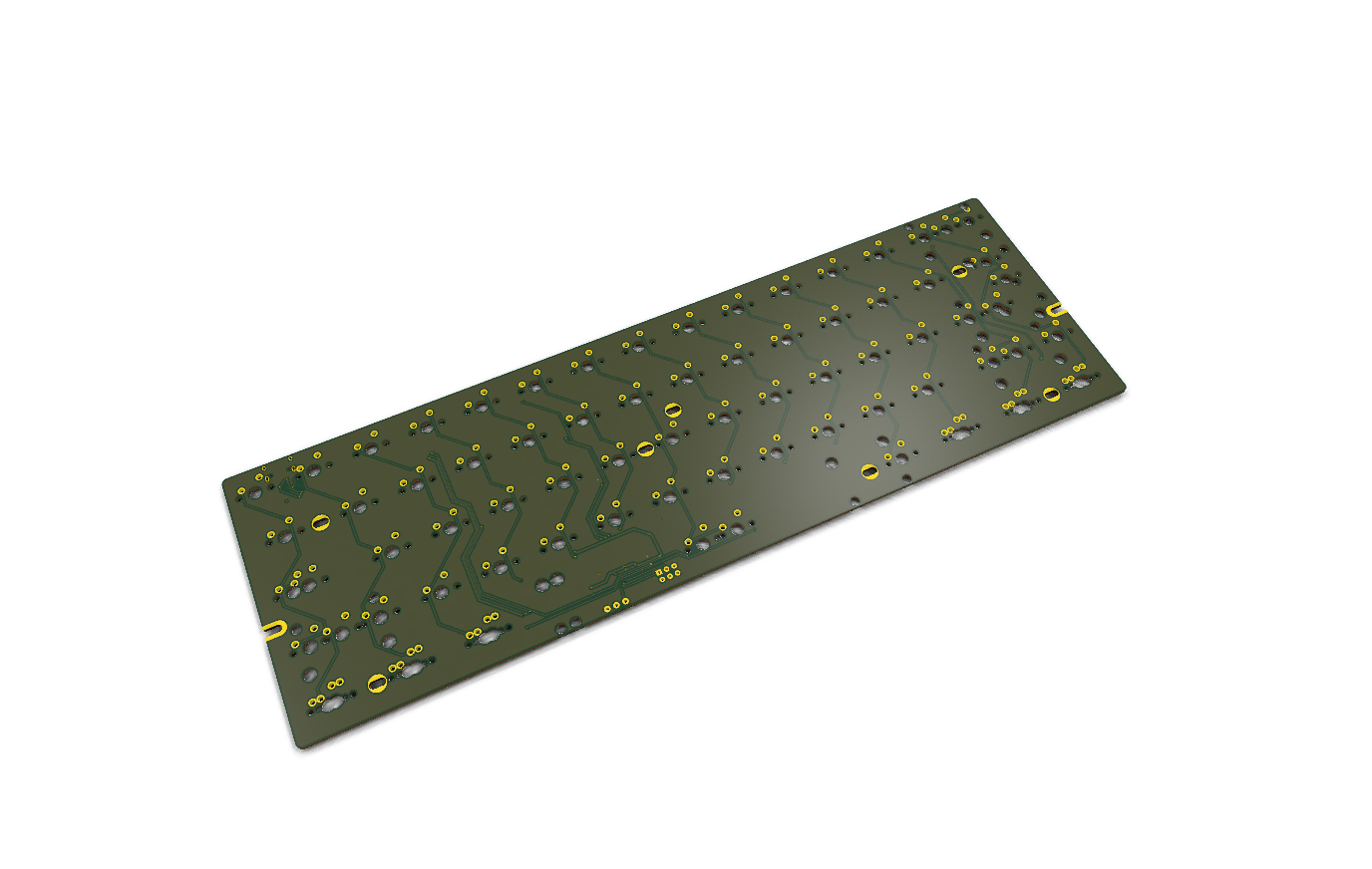

plain60-c.kicad_pcb.
No switches or keycaps: this is the board as manufactured.
What fits this board → Compare with another board →
Record 89% complete · 16 of 18 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware license
- ✓ Firmware license
- ✓ Documentation license
- ✓ Key pitch
- ✓ Soldering
- ✓ Soldered MCU
- ✓ Firmware targets
- ✓ Summary
- ✓ Key wiring
- ✓ Hotswap
- ✗ Splay
- ✗ Stagger
This universal 60% PCB is designed to support as little layouts as possible without limiting usability for most users. The reason I did this is because other PCBs made for this form factor usually have so many supported layouts that it could almost qualify as swiss cheese.
Layouts
- 65 keys
- 64 keys
- 63 keys
- 62 keys
- 61 keys
- 60 keys
Spec
Shape
- Body
- unibody
- Splay
- — not recorded —
- Stagger
- — not recorded —
- Key spacing
- MX spacing · 19.05 × 19.05 mm
Switches
- Switch footprint
- MX
- Hotswap
- Mill-Max, or solder the switches in
Electronics
- Controller
- soldered ATmega32U4
- Connectivity
- Wired — the soldered ATmega32U4 has no radio
- USB port
- USB-C
- Firmware
- QMK (evyd13/plain60)
- Firmware targets
- ATmega32U4
- Key wiring
- 5×15 matrix, column-to-row diodes
- Room for
- speaker
- Power switch
- no
- Exposed components
- no
Building it
- Build method
- PCB
- Soldering
- SMD, fine-pitch (USB)
- SMD required
- yes
Licensing
- Hardware
- CC BY-SA 4.0
- Firmware
- CC BY-SA 4.0
- Documentation
- CC BY-SA 4.0
