Kobold
16 keys unibody
Choc v1 soldered STM32G431 QMK
Kobold.kicad_pcb.

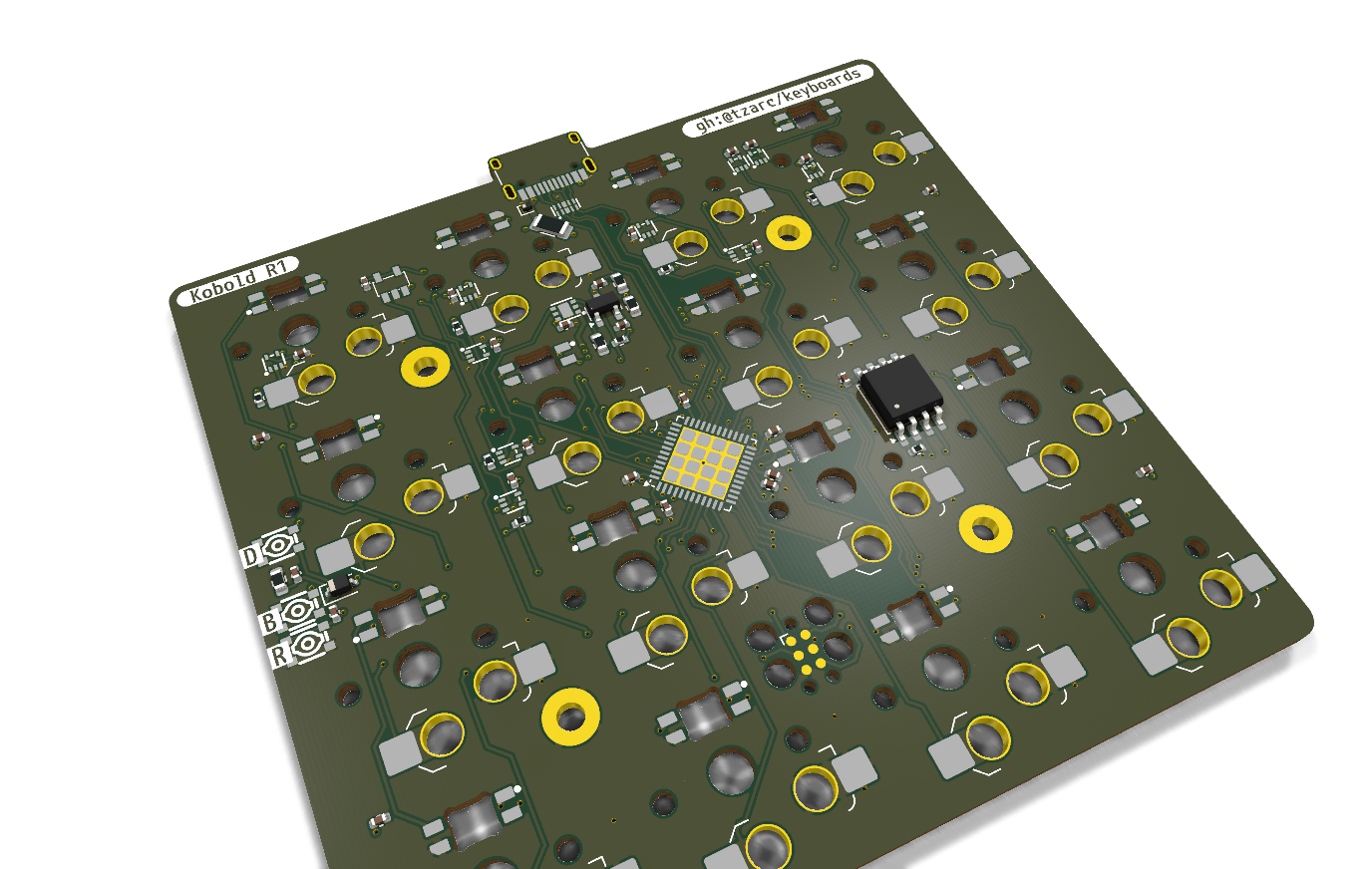

No switches or keycaps: this is the board as manufactured.
What fits this board → Compare with another board →
Record 100% complete · 18 of 18 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware license
- ✓ Firmware license
- ✓ Documentation license
- ✓ Key pitch
- ✓ Soldering
- ✓ Soldered MCU
- ✓ Firmware targets
- ✓ Summary
- ✓ Key wiring
- ✓ Hotswap
- ✓ Splay
- ✓ Stagger
The Kobold is an ortho 4x4 macropad, as a replacement for a bm16s with modern hardware.
Layouts
- 16 keys
Spec
Shape
- Body
- unibody
- Splay
- no
- Stagger
- ortholinear
- Key spacing
- Non-standard · 17.50 mm
Switches
- Switch footprint
- Choc v1
- Hotswap
- Kailh socket
Electronics
- Controller
- soldered STM32G431
- Connectivity
- Wired — the soldered STM32G431 has no radio
- USB port
- USB-C
- Firmware
- QMK (tzarc/kobold/r1)
- Firmware targets
- STM32G431
- Key wiring
- 16 direct pins
- Room for
- — not recorded —
- Power switch
- no
- Exposed components
- — not recorded —
Building it
- Build method
- PCB
- Soldering
- SMD, fine-pitch (MCU, USB, diode, passive)
- SMD required
- yes
Licensing
- Hardware
- CERN-OHL-S 2.0
- Firmware
- CERN-OHL-S 2.0
- Documentation
- CERN-OHL-S 2.0
