karn
from the Karn family
38 keys split
Choc v1 Pro Micro socket QMK

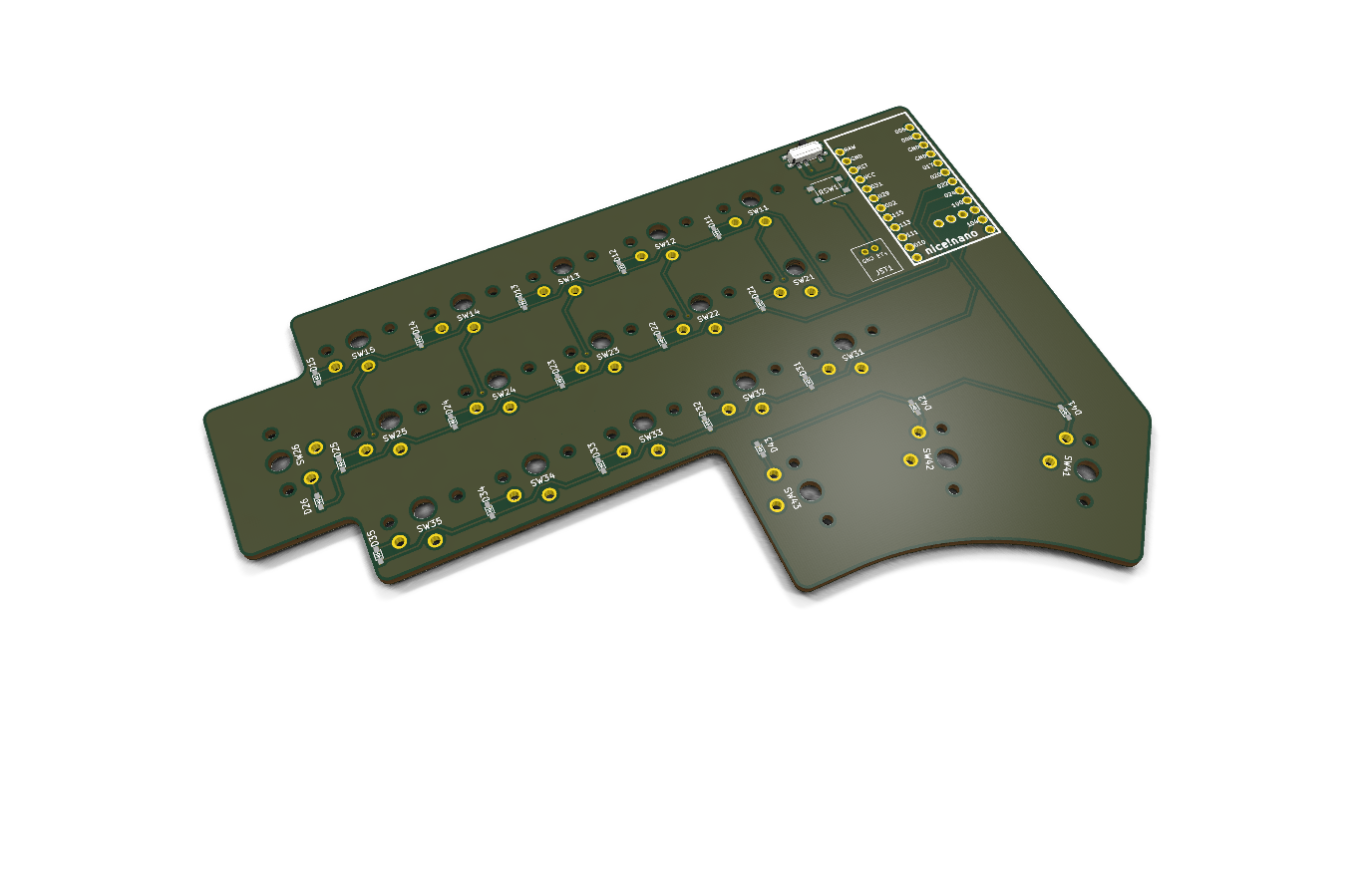

karn-left.kicad_pcb —
this design has 1 other board file
not shown.
No switches or keycaps: this is the board as manufactured.
What fits this board → Compare with another board →
Record 82% complete · 14 of 17 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware license
- ✓ Firmware license
- ✓ Documentation license
- ✓ Key pitch
- ✓ Soldering
- ✗ Firmware targets
- ✗ Summary
- ✗ Key wiring
- ✓ Hotswap
- ✓ Splay
- ✓ Stagger
No summary recorded.
Layouts
- 38 keys
Spec
Shape
- Body
- split, 2 halves
- Split link
- — not recorded —
- Splay
- no
- Stagger
- ortholinear
- Key spacing
- Non-standard · 17.50 mm
Switches
- Switch footprint
- Choc v1
- Hotswap
- Mill-Max, or solder the switches in
Electronics
- Controller
- Pro Micro socket
- Connectivity
- Wireless with a nice!nano v2 — needs a ZMK config
- USB port
- USB-C or micro-USB, depends on the dev board
- Firmware
- QMK (karn)
- Firmware targets
- — not recorded —
- Key wiring
- — not recorded —
- Room for
- — not recorded —
- Power switch
- yes
- Exposed components
- no
Building it
- Build method
- PCB
- Soldering
- SMD, hand-solderable (LED, diode)
- SMD required
- yes
Licensing
- Hardware
- all rights reserved — no license stated
- Firmware
- all rights reserved — no license stated
- Documentation
- all rights reserved — no license stated
