chocofly
60 keys unibody
Choc v1 Pro Micro socket QMK
What fits this board → Compare with another board →
Record 100% complete · 17 of 17 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware license
- ✓ Firmware license
- ✓ Documentation license
- ✓ Key pitch
- ✓ Soldering
- ✓ Firmware targets
- ✓ Summary
- ✓ Key wiring
- ✓ Hotswap
- ✓ Splay
- ✓ Stagger

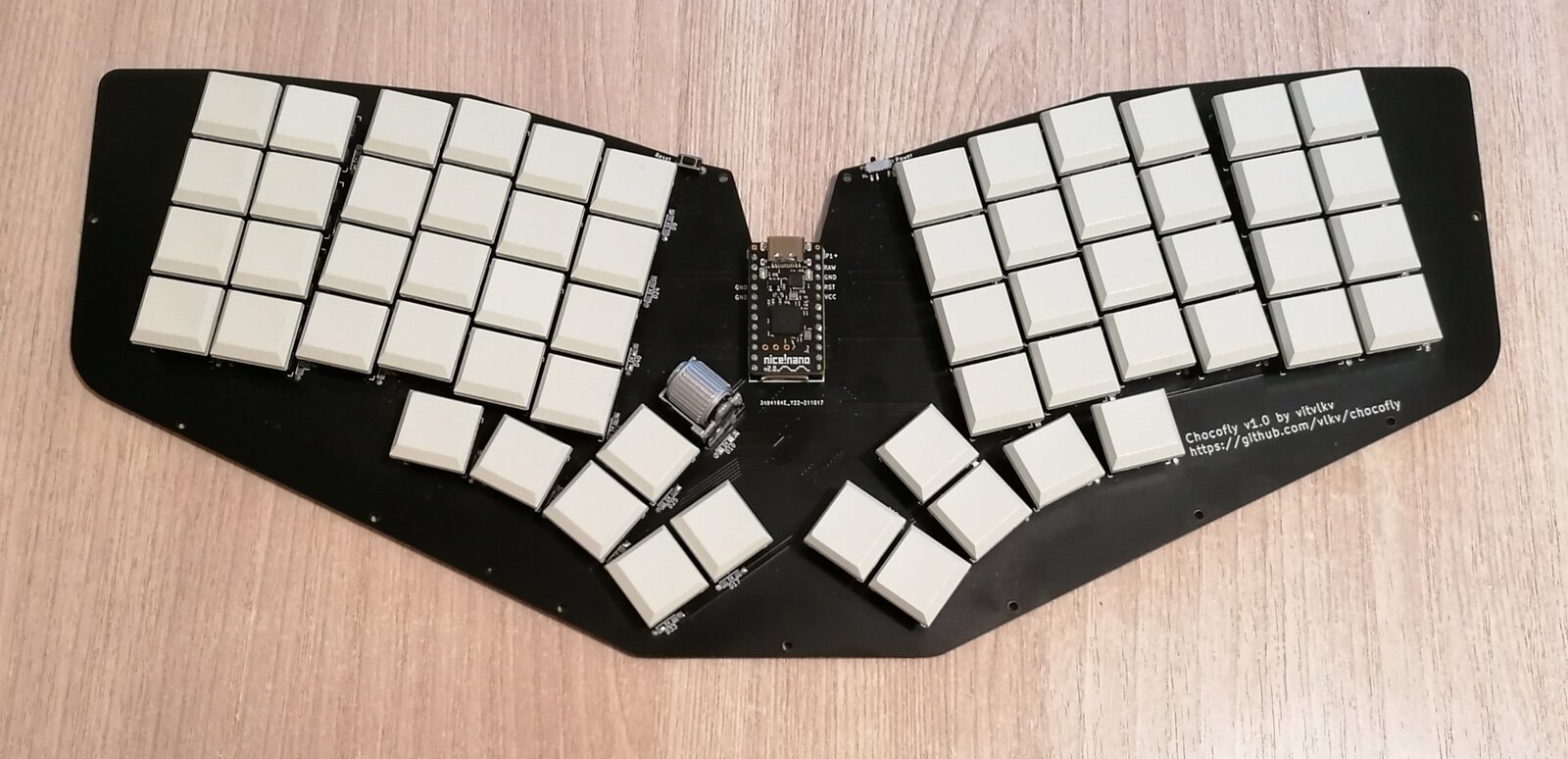

The Chocofly is an ergonomic monosplit keyboard with 4x6 column staggered keys, 4 thumb keys and 2 additional inner keys for the index finger (60 keys total) plus one rotary encoder.
Layouts
- 60 keys
Spec
Shape
- Body
- unibody
- Splay
- yes
- Stagger
- column-staggered
- Key spacing
- Non-standard · 17.50 mm
Switches
- Switch footprint
- Choc v1
- Hotswap
- Kailh socket, or solder the switches in
Electronics
- Controller
- Pro Micro socket
- Connectivity
- Wireless with a nice!nano v2 — needs a ZMK config
- USB port
- USB-C or micro-USB, depends on the dev board
- Firmware
- QMK (chocofly/v1)
- Firmware targets
- ATmega32U4
- Key wiring
- 8×8 matrix, column-to-row diodes
- Room for
- encoder
- Power switch
- yes
- Exposed components
- no
Building it
- Build method

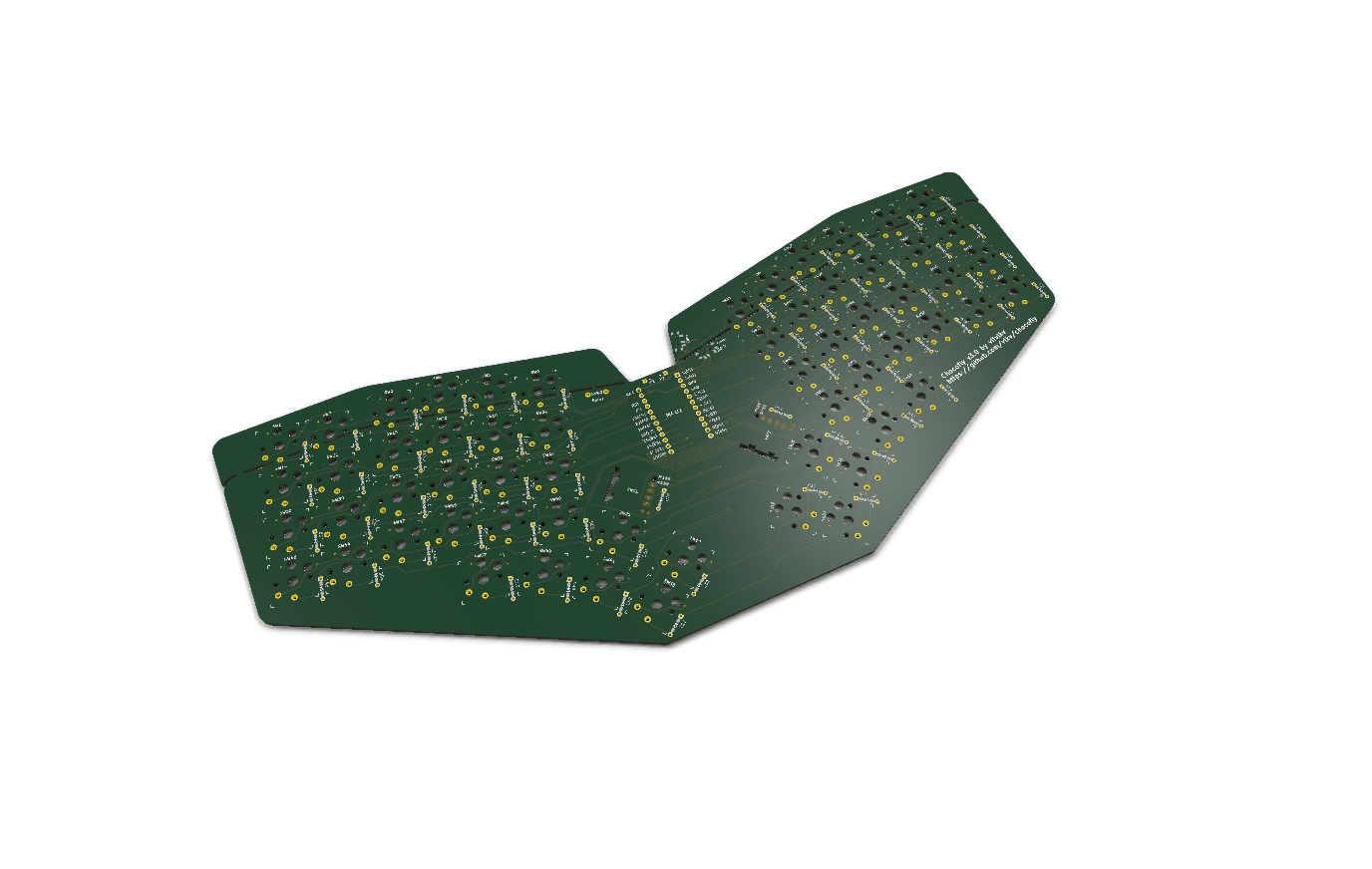

- PCB
- Soldering
- through-hole (diode, other)
- SMD required
- no
Licensing
- Hardware
- MIT
- Firmware
- MIT
- Documentation
- MIT
