Zodiark
70 keys split
MX Pro Micro socket ZMK

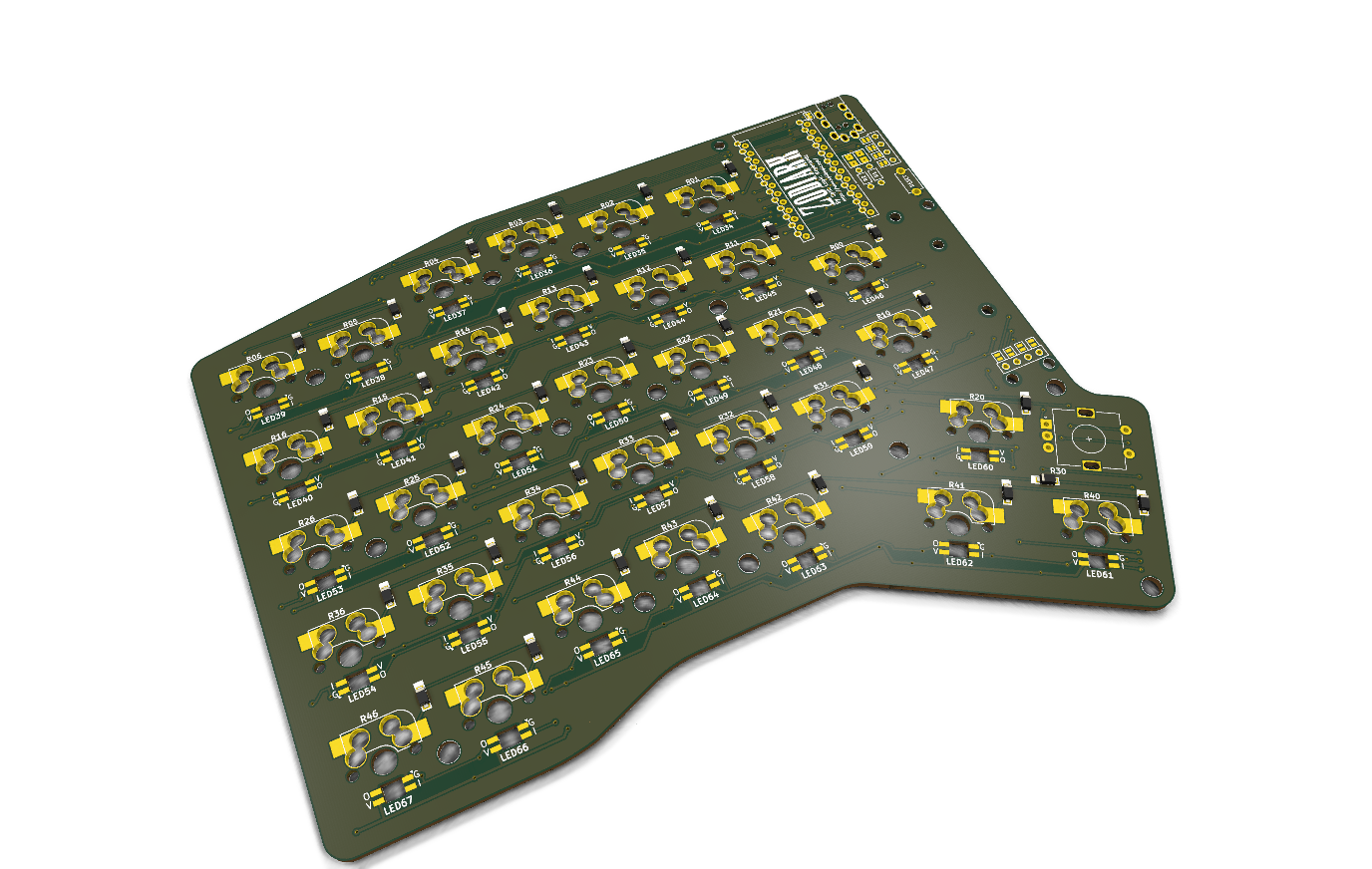

ZodiarkSplit.kicad_pcb.
No switches or keycaps: this is the board as manufactured.
What fits this board → Compare with another board →
Record 81% complete · 13 of 16 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware license
- ✓ Firmware license
- ✓ Documentation license
- ✓ Key pitch
- ✓ Soldering
- ✗ Summary
- ✓ Key wiring
- ✓ Hotswap
- ✗ Splay
- ✗ Stagger
No summary recorded.
Layouts
- 70 keys
Spec
Shape
- Body
- split, 2 halves
- Split link
- TRRS cable
- Splay
- — not recorded —
- Stagger
- — not recorded —
- Key spacing
- MX spacing · 19.05 × 19.05 mm
Switches
- Switch footprint
- MX
- Hotswap
- Kailh socket, Gateron socket
Electronics
- Controller
- Pro Micro socket
- Connectivity
- Wireless with a nice!nano v2, or 6 other controllers
- USB port
- USB-C or micro-USB, depends on the dev board
- Firmware
- ZMK (zodiark)
- Firmware targets
- — not recorded —
- Key wiring
- 5×7 matrix per half, column-to-row diodes
- Room for
- display, encoder
- Power switch
- no
- Exposed components
- no
Building it
- Build method
- PCB
- Soldering
- SMD, hand-solderable (LED, other)
- SMD required
- yes
Licensing
- Hardware
- MIT
- Firmware
- MIT
- Documentation
- MIT
