avalanche hotswap
64 keys split
MX Pro Micro socket QMK
What fits this board → Compare with another board →
Record 100% complete · 17 of 17 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware license
- ✓ Firmware license
- ✓ Documentation license
- ✓ Key pitch
- ✓ Soldering
- ✓ Firmware targets
- ✓ Summary
- ✓ Key wiring
- ✓ Hotswap
- ✓ Splay
- ✓ Stagger

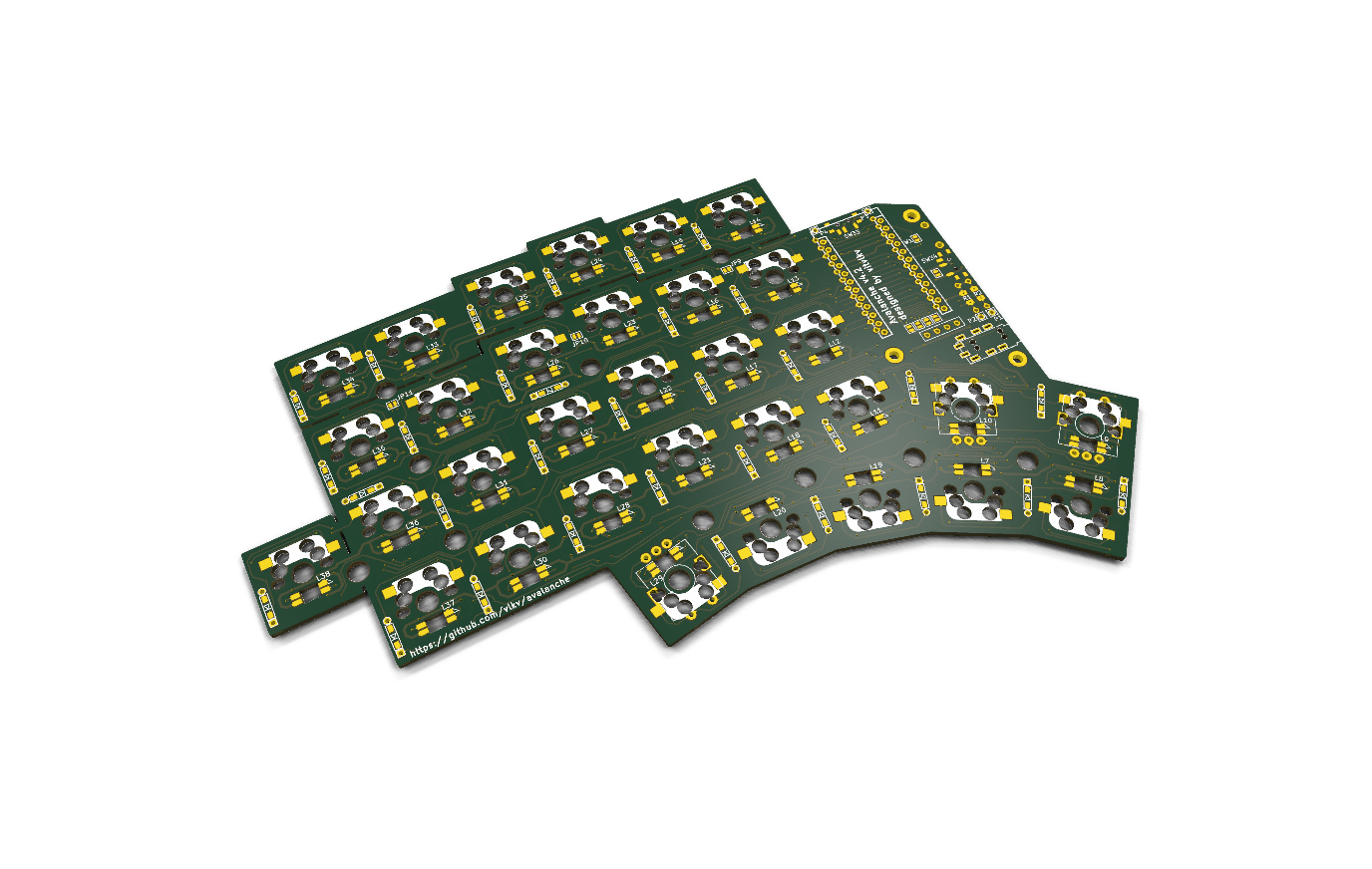

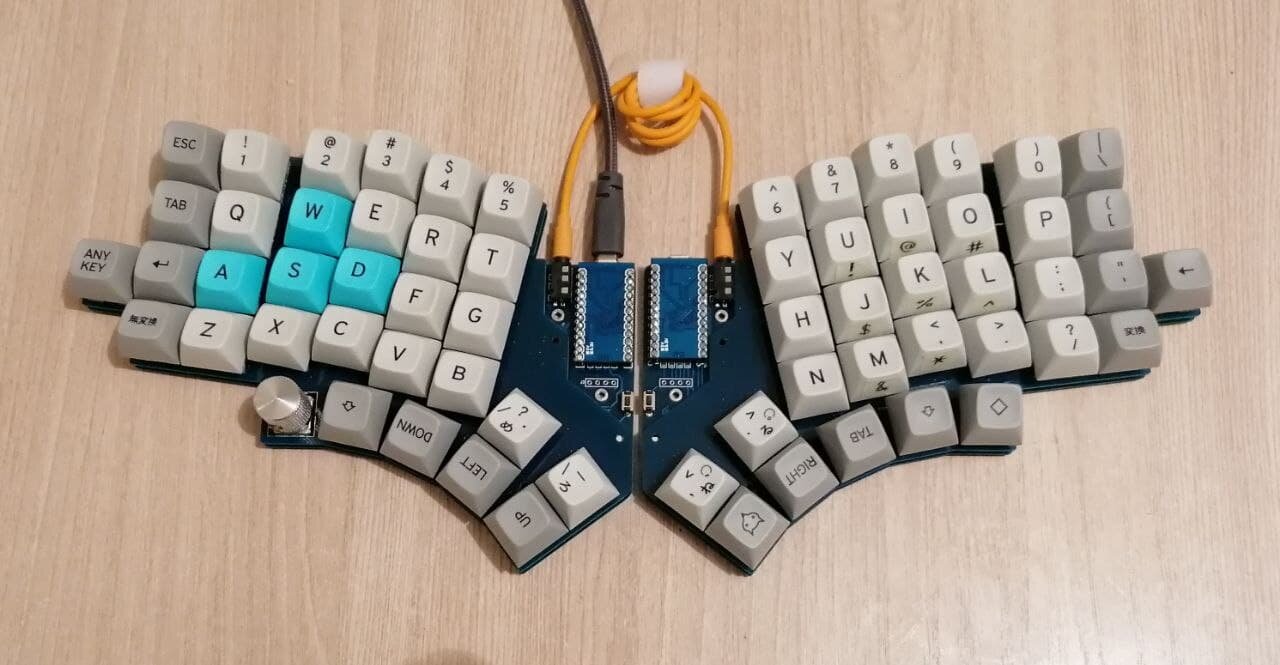

The Avalanche keyboard is an ergonomic split keyboard with 4x6 (or 3x6 if you break off the 'digits' row) column staggered keys, 5 thumb keys, 1 additional key for the pinky (break off-able too) and 2 additional keys for the index finger (64 keys total).
Layouts
- 64 keys
Spec
Shape
- Body
- split, 2 halves
- Split link
- TRRS cable
- Splay
- yes
- Stagger
- column-staggered
- Key spacing
- MX spacing · 19.05 × 19.05 mm
Switches
- Switch footprint
- MX
- Hotswap
- Kailh socket, Gateron socket
Electronics
- Controller
- Pro Micro socket
- Connectivity
- Wireless with a nice!nano v2 — needs a ZMK config
- USB port
- USB-C or micro-USB, depends on the dev board
- Firmware
- QMK (avalanche/v2), QMK (avalanche/v3), QMK (avalanche/v4)
- Firmware targets
- ATmega32U4
- Key wiring
- 5×7 matrix per half, column-to-row diodes
- Room for
- display, encoder
- Power switch
- yes
- Exposed components
- no
Building it
- Build method
- PCB
- Soldering
- SMD, hand-solderable (LED)
- SMD required
- yes
Licensing
- Hardware
- MIT
- Firmware
- MIT
- Documentation
- MIT
