lotus58
60 keys split
MX Pro Micro socket ZMK
What fits this board → Compare with another board →
Record 88% complete · 14 of 16 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware license
- ✓ Firmware license
- ✓ Documentation license
- ✓ Key pitch
- ✓ Soldering
- ✓ Summary
- ✓ Key wiring
- ✓ Hotswap
- ✗ Splay
- ✗ Stagger

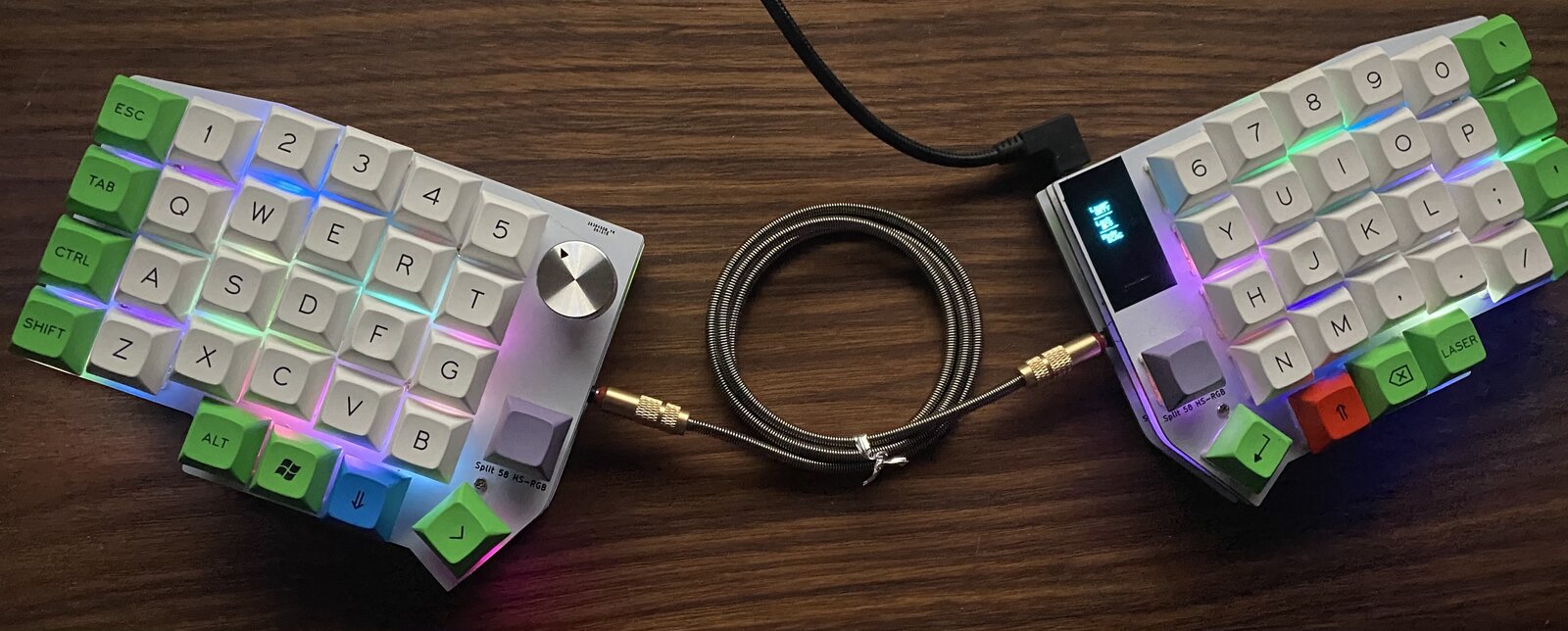

Lotus 58 Classic is the wired designs of the Lotus keyboard. Wireless with BLE and 2.4Ghz dongled wireless reside in other repositories.
Layouts
- 60 keys
Spec
Shape
- Body
- split, 2 halves
- Split link
- TRRS or USB-C cable
- Splay
- — not recorded —
- Stagger
- — not recorded —
- Key spacing
- MX spacing · 19.05 × 19.05 mm
Switches
- Switch footprint
- MX
- Hotswap
- Kailh socket, Gateron socket
Electronics
- Controller
- Pro Micro socket
- Connectivity
- Wireless with a nice!nano v2, or 6 other controllers
- USB port
- USB-C or micro-USB, depends on the dev board
- Firmware
- ZMK (lotus58)
- Firmware targets
- — not recorded —
- Key wiring
- 5×6 matrix per half, column-to-row diodes
- Room for
- display, encoder
- Power switch
- yes
- Exposed components
- no

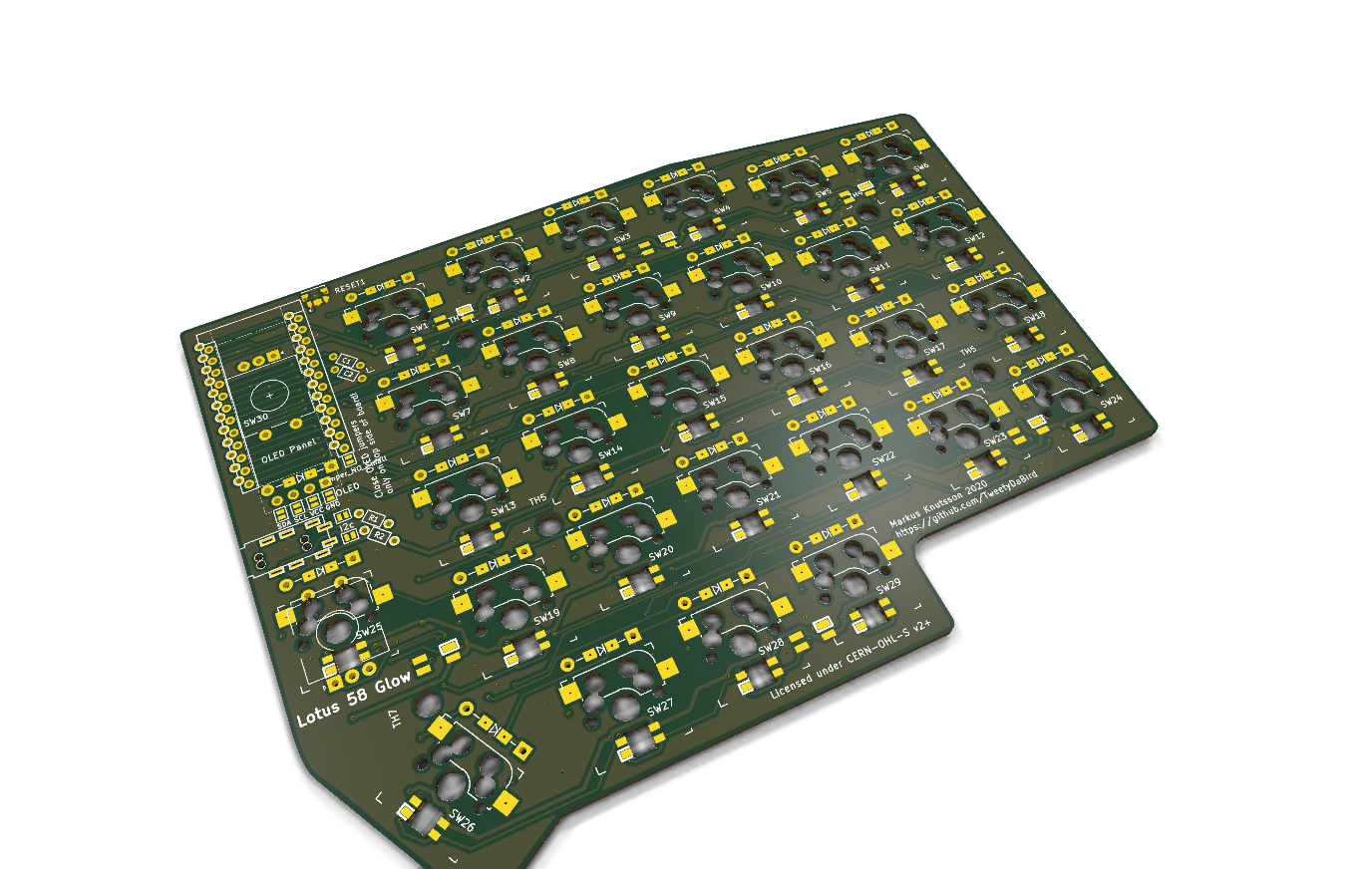

Building it
- Build method
- PCB
- Soldering
- SMD, fine-pitch (USB, IC)
- SMD required
- yes
Licensing
- Hardware
- CERN-OHL-S 2.0
- Firmware
- CERN-OHL-S 2.0
- Documentation
- CERN-OHL-S 2.0
