torn
44 keys split
Choc v1 / MX soldered ATmega328P QMK

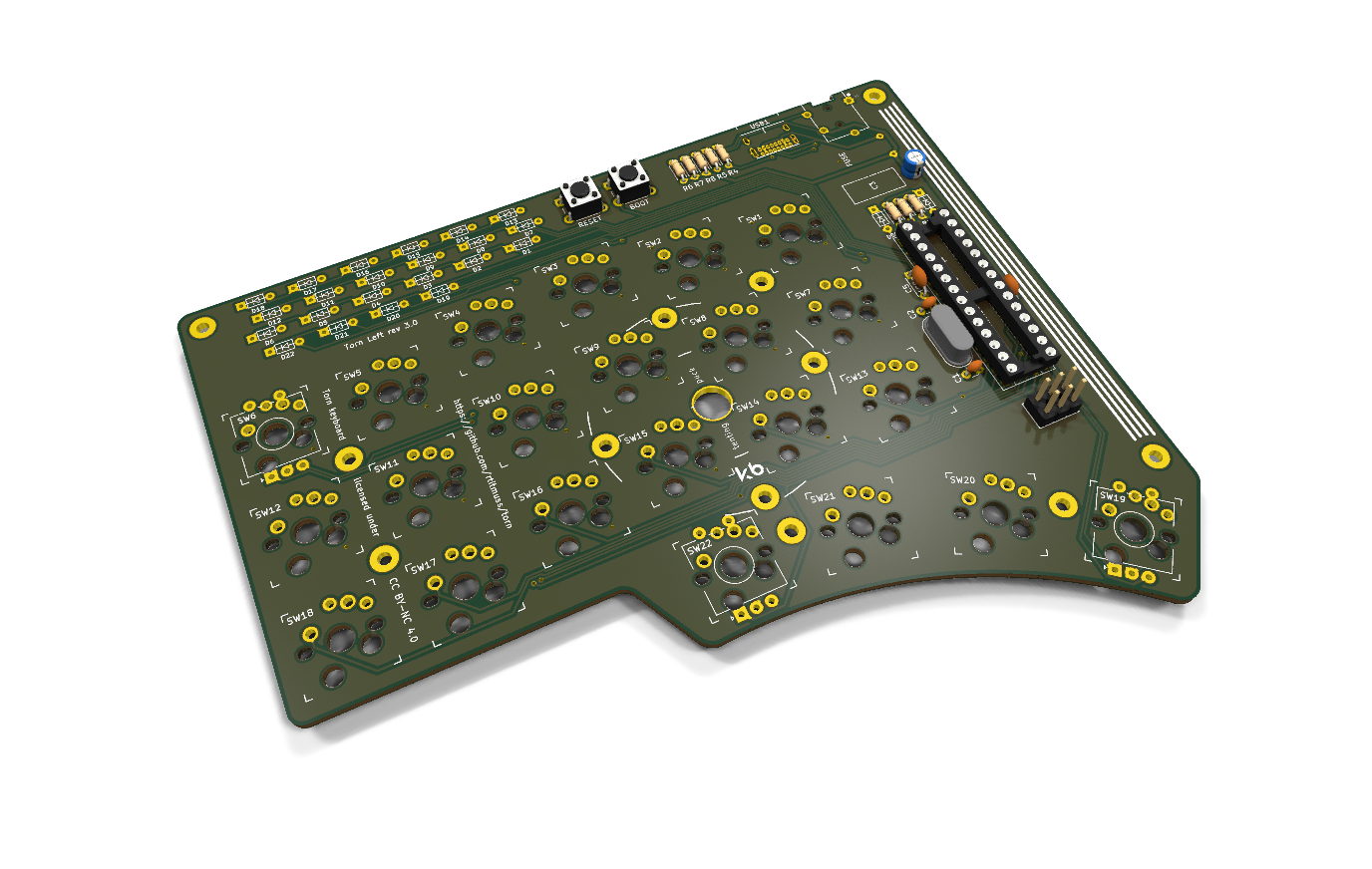

torn_left.kicad_pcb —
this design has 1 other board file
not shown.
No switches or keycaps: this is the board as manufactured.
What fits this board → Compare with another board →
Record 94% complete · 17 of 18 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware license
- ✓ Firmware license
- ✓ Documentation license
- ✓ Key pitch
- ✓ Soldering
- ✓ Soldered MCU
- ✓ Firmware targets
- ✓ Summary
- ✗ Key wiring
- ✓ Hotswap
- ✓ Splay
- ✓ Stagger
The split keyboard kit made with through hole components. The design has been inspired by the Corne, Plaid and Discipline keyboards.
Layouts
- 44 keys
Spec
Shape
- Body
- split, 2 halves
- Split link
- TRRS cable
- Splay
- no
- Stagger
- column-staggered
- Key spacing
- MX spacing · 19.05 × 19.05 mm
Switches
- Switch footprint
- Choc v1, MX
- Hotswap
- Kailh socket, Gateron socket, Mill-Max, or solder the switches in
Electronics
- Controller
- soldered ATmega328P
- Connectivity
- Wired — the soldered ATmega328P has no radio
- USB port
- USB-C
- Firmware
- QMK (torn)
- Firmware targets
- ATmega328P
- Key wiring
- — not recorded —
- Room for
- display, encoder
- Power switch
- no
- Exposed components
- yes
Building it
- Build method
- PCB
- Soldering
- SMD, fine-pitch (USB)
- SMD required
- yes
Licensing
- Hardware
- CC-BY-NC-4.0
- Firmware
- CC-BY-NC-4.0
- Documentation
- CC-BY-NC-4.0
