Corne Chocolate v4
42 / 36 keys split
Choc v1 / Choc v2 soldered RP2040 QMK
corne-chocolate.kicad_pcb.

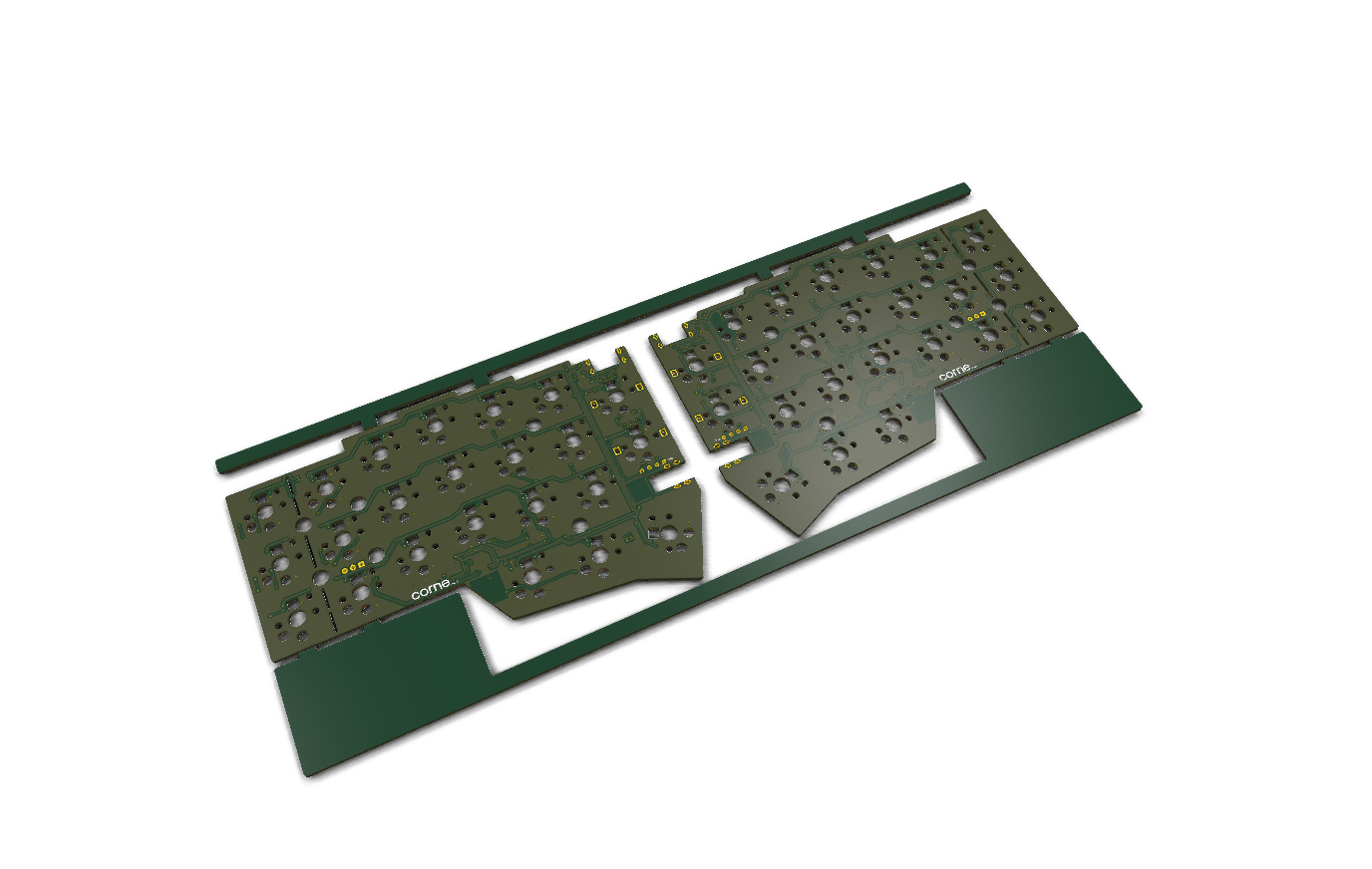

No switches or keycaps: this is the board as manufactured.
What fits this board → Compare with another board →
Record 89% complete · 16 of 18 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware licence
- ✓ Firmware licence
- ✓ Documentation licence
- ✓ Key pitch
- ✓ Soldering
- ✓ Soldered MCU
- ✗ Firmware targets
- ✗ Summary
- ✓ Key wiring
- ✓ Switch sockets
- ✓ Splay
- ✓ Stagger
No summary recorded.
Layouts
- 42 keys — Standard
- 36 keys — Mini
Spec
Shape
- Body
- split, 2 halves
- Split link
- TRRS cable
- Splay
- no
- Stagger
- column-staggered
- Key spacing
- 19.05 mm · MX-stem keycaps (OEM, SA, XDA, Cherry)
Switches
- Switch footprint
- Choc v1, Choc v2
- Switch sockets
- hotswap
Electronics
- Controller
- soldered RP2040
- Connectivity
- Wired — the soldered RP2040 has no radio
- USB port
- USB-C
- Firmware
- QMK (crkbd/rev4_0/mini), QMK (crkbd/rev4_0/standard), QMK (crkbd/rev4_1/mini), QMK (crkbd/rev4_1/standard)
- Firmware targets
- — not recorded —
- Key wiring
- 23 direct pins
- Room for
- display encoder
Building it
- Build method
- PCB
- Soldering
- SMD, fine-pitch (MCU, USB, passive)
- SMD required
- yes
Licensing
- Hardware
- CC BY 4.0
- Firmware
- MIT
- Documentation
- CC BY 4.0
