Setta21
21 keys unibody
Choc v1 Pro Micro socket QMK

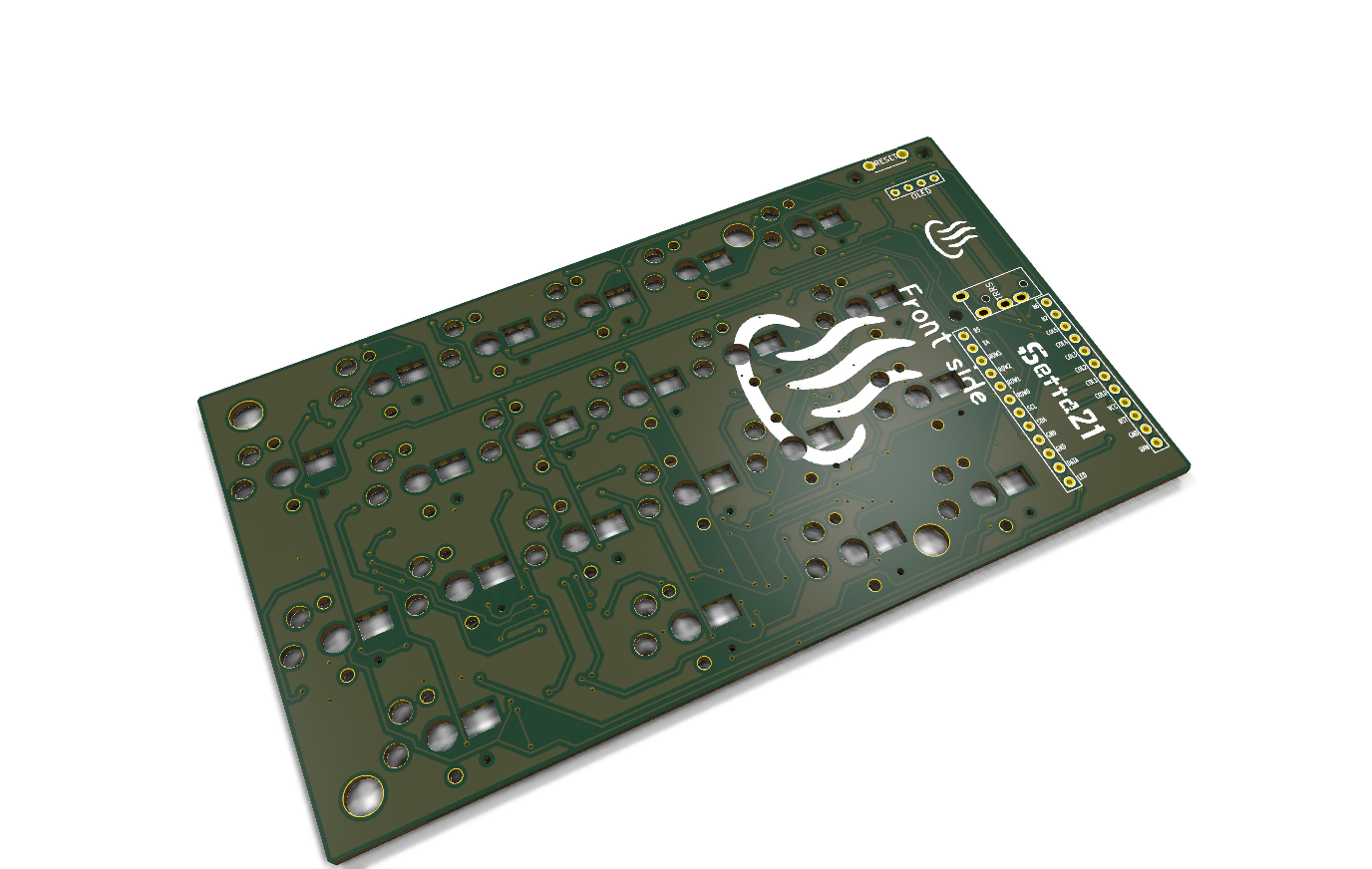

Setta21.kicad_pcb.
No switches or keycaps: this is the board as manufactured.
What fits this board → Compare with another board →
Record 94% complete · 16 of 17 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware license
- ✓ Firmware license
- ✓ Documentation license
- ✓ Key pitch
- ✓ Soldering
- ✓ Firmware targets
- ✗ Summary
- ✓ Key wiring
- ✓ Hotswap
- ✓ Splay
- ✓ Stagger
No summary recorded.
Layouts
- 21 keys
Spec
Shape
- Body
- unibody
- Splay
- no
- Stagger
- ortholinear
- Key spacing
- Choc spacing · 18 × 17 mm
Switches
- Switch footprint
- Choc v1
- Hotswap
- Kailh socket
Electronics
- Controller
- Pro Micro socket
- Connectivity
- Wireless with a nice!nano v2 — needs a ZMK config
- USB port
- USB-C or micro-USB, depends on the dev board
- Firmware
- QMK (salicylic_acid3/setta21/rev1)
- Firmware targets
- ATmega32U4
- Key wiring
- 4×6 matrix, column-to-row diodes
- Room for
- display
- Power switch
- no
- Exposed components
- no
Building it
- Build method
- PCB
- Soldering
- SMD, hand-solderable (LED, other)
- SMD required
- yes
Licensing
- Hardware
- MIT
- Firmware
- MIT
- Documentation
- MIT
