span
36 keys split
Choc v1 Pro Micro socket QMK

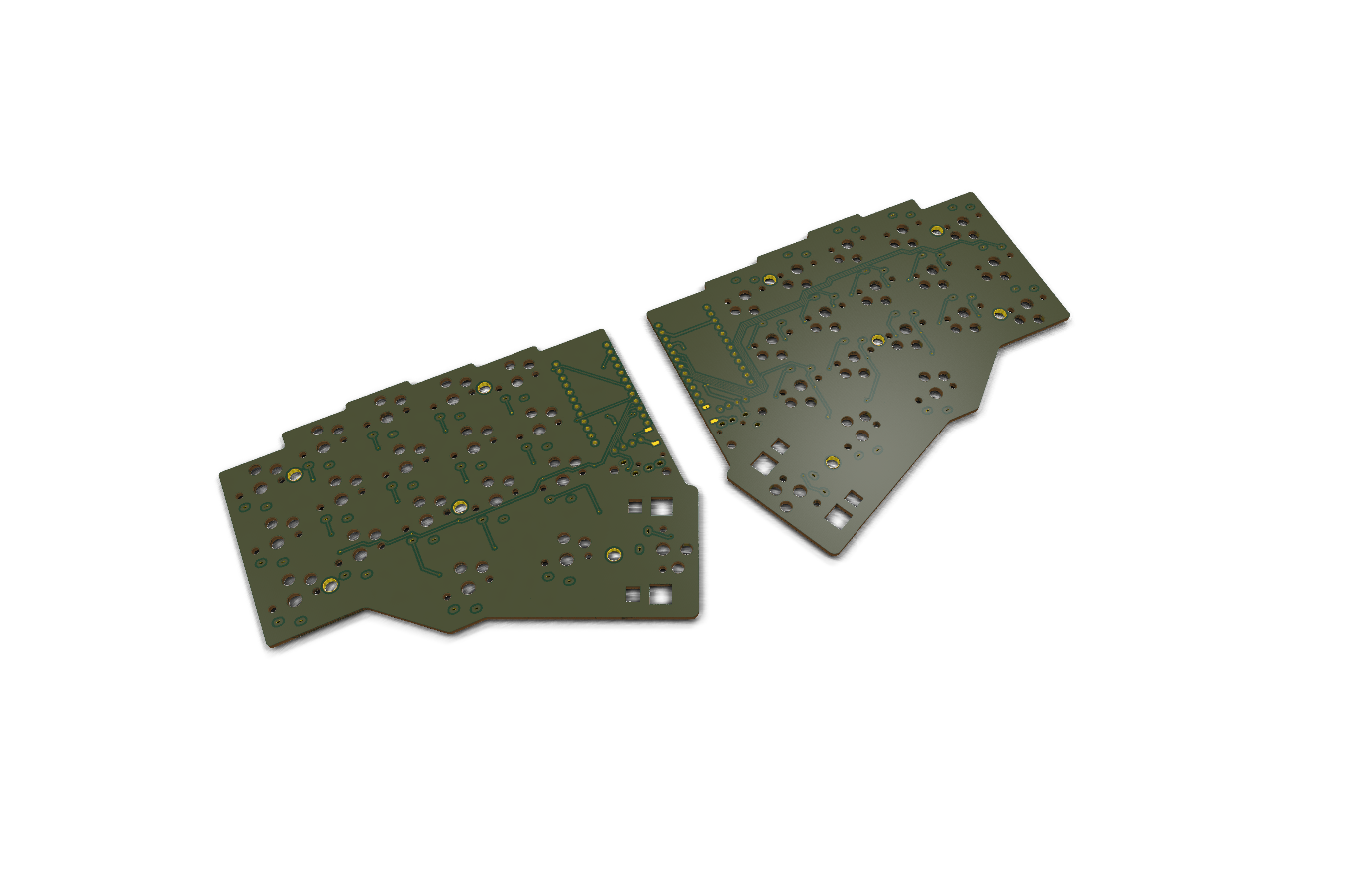

span.kicad_pcb.
No switches or keycaps: this is the board as manufactured.
What fits this board → Compare with another board →
Record 100% complete · 17 of 17 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware license
- ✓ Firmware license
- ✓ Documentation license
- ✓ Key pitch
- ✓ Soldering
- ✓ Firmware targets
- ✓ Summary
- ✓ Key wiring
- ✓ Hotswap
- ✓ Splay
- ✓ Stagger
Span is a low profile split keyboard with 3x5 column staggered keys with 2u, 1.5u, 1u thumb clusters.
Layouts
- 36 keys
Spec
Shape
- Body
- split, 2 halves
- Split link
- TRRS cable
- Splay
- no
- Stagger
- column-staggered
- Key spacing
- Choc spacing · 18 × 17 mm
Switches
- Switch footprint
- Choc v1
- Hotswap
- Kailh socket, or solder the switches in
Electronics
- Controller
- Pro Micro socket
- Connectivity
- Wireless with a nice!nano v2 — needs a ZMK config
- USB port
- USB-C or micro-USB, depends on the dev board
- Firmware
- QMK (idank/spankbd)
- Firmware targets
- ATmega32U4
- Key wiring
- 4×5 matrix per half, column-to-row diodes
- Room for
- display
- Power switch
- no
- Exposed components
- no
Building it
- Build method
- PCB
- Soldering
- SMD, hand-solderable (other)
- SMD required
- yes
Licensing
- Hardware
- CC BY-SA 4.0
- Firmware
- CC BY-SA 4.0
- Documentation
- CC BY-SA 4.0
