PRKL30
38 / 37 keys unibody
Alps / Choc v1 / MX Pro Micro or Feather socket QMK
PRKL30.kicad_pcb.

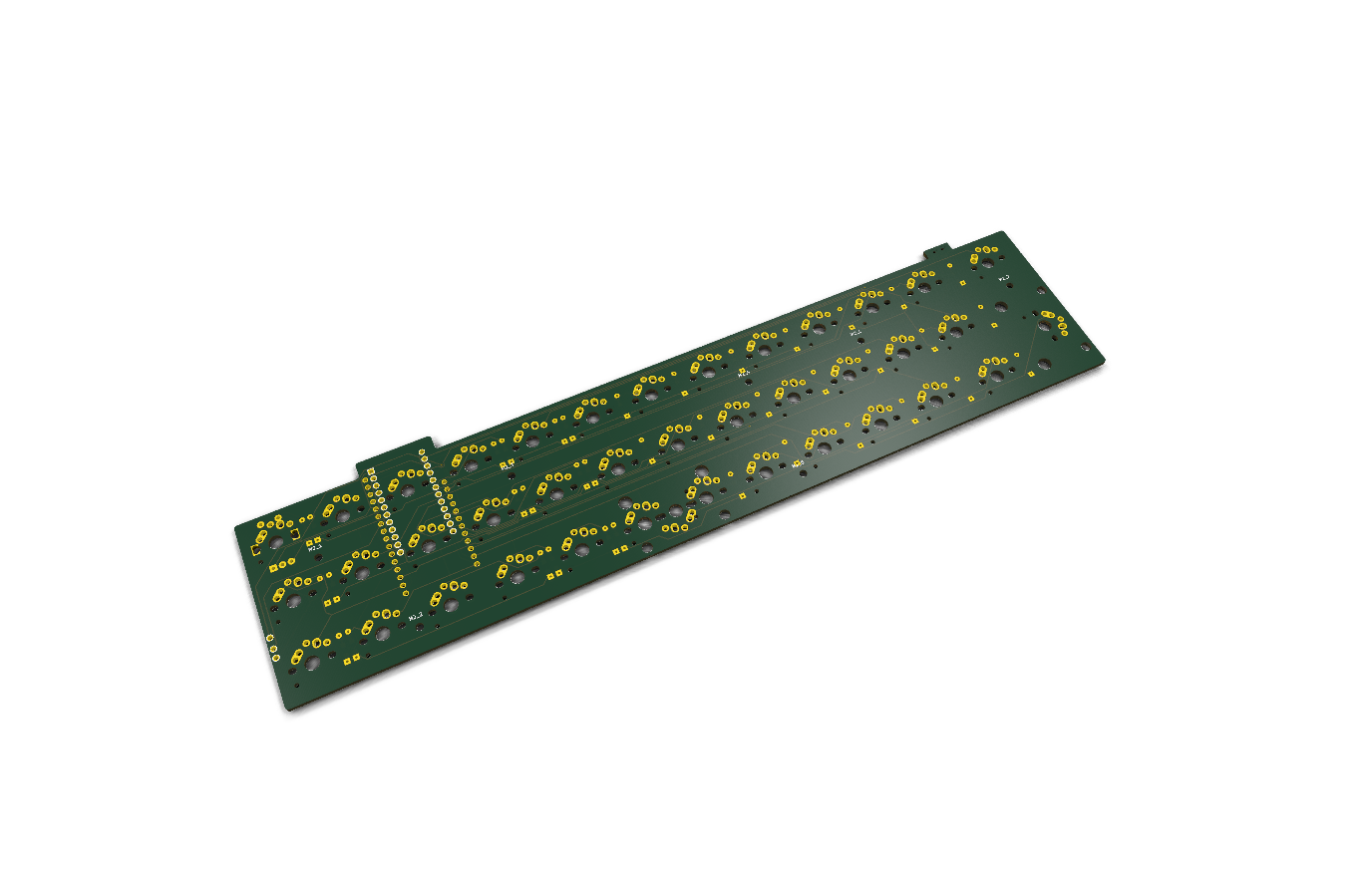

No switches or keycaps: this is the board as manufactured.
What fits this board → Compare with another board →
Record 88% complete · 15 of 17 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware license
- ✓ Firmware license
- ✓ Documentation license
- ✓ Key pitch
- ✓ Soldering
- ✓ Firmware targets
- ✓ Summary
- ✓ Key wiring
- ✓ Hotswap
- ✗ Splay
- ✗ Stagger
30% Custom mechanical keyboard designed for the Finnish Mechanical Keyboard Community
Layouts
- 38 keys
- 37 keys
Spec
Shape
- Body
- unibody
- Splay
- — not recorded —
- Stagger
- — not recorded —
- Key spacing
- MX spacing · 19.05 × 19.05 mm
Switches
- Switch footprint
- Alps, Choc v1, MX
- Hotswap
- Mill-Max, or solder the switches in
Electronics
- Controller
- Pro Micro or Feather socket
- Connectivity
- Wireless with an Adafruit Feather 32u4 Bluefruit LE
- USB port
- USB-C or micro-USB, depends on the dev board
- Firmware
- QMK (handwired/prkl30/feather), QMK (handwired/prkl30/promicro)
- Firmware targets
- ATmega32U4
- Key wiring
- 4×10 matrix, column-to-row diodes
- Room for
- encoder
- Power switch
- yes
- Exposed components
- no
Building it
- Build method
- PCB
- Soldering
- through-hole (diode, rotary encoder)
- SMD required
- no
Licensing
- Hardware
- MIT
- Firmware
- MIT
- Documentation
- MIT
