Pancake v1
48 keys unibody
Choc v1 Pro Micro or Feather socket ZMK
dropin.kicad_pcb.

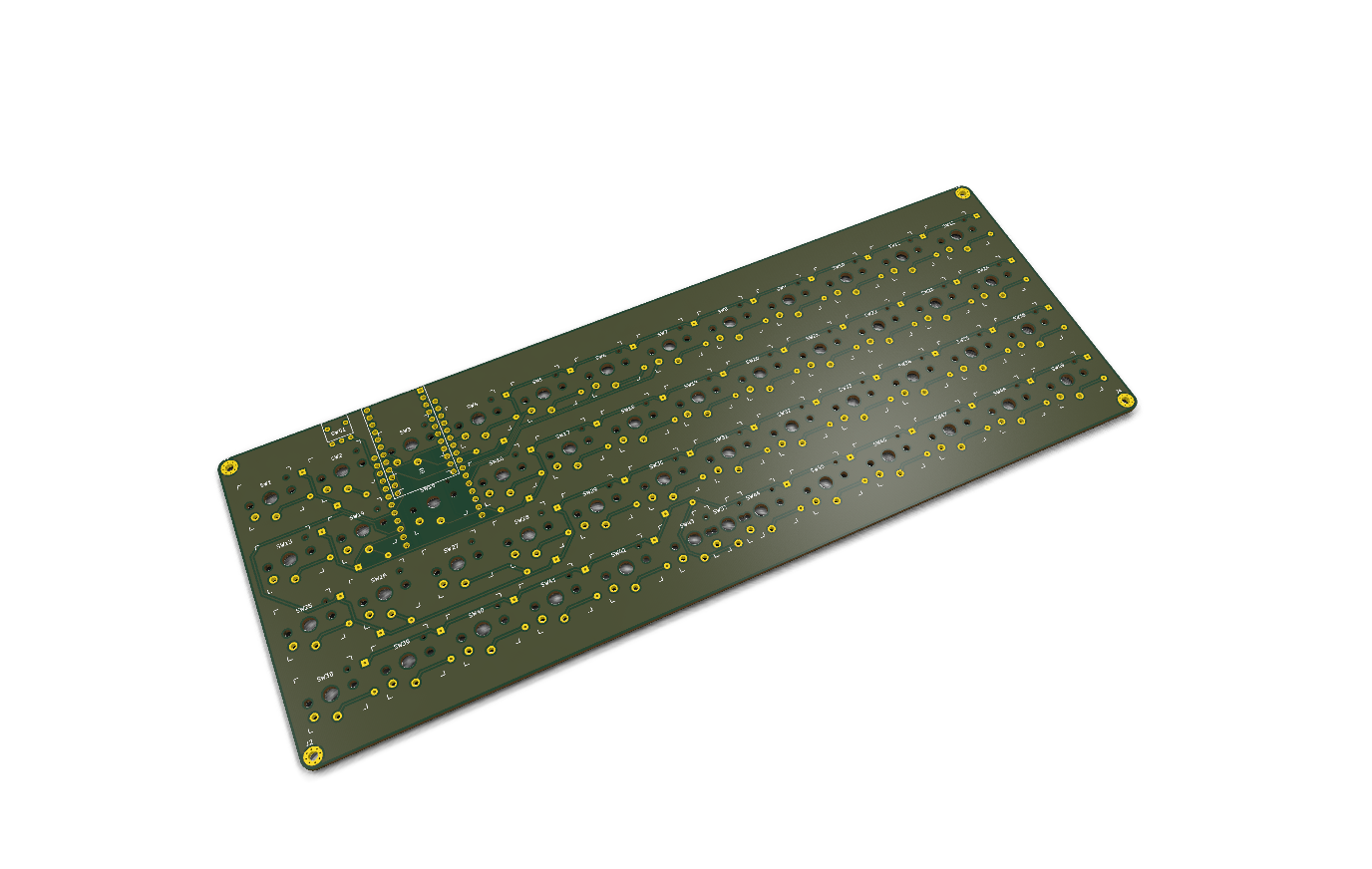

No switches or keycaps: this is the board as manufactured.
What fits this board → Compare with another board →
Record 75% complete · 12 of 16 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware licence
- ✓ Firmware licence
- ✓ Documentation licence
- ✓ Key pitch
- ✓ Soldering
- ✗ Summary
- ✓ Key wiring
- ✗ Switch sockets
- ✗ Splay
- ✗ Stagger
No summary recorded.
Layouts
- 48 keys
Spec
Shape
- Body
- unibody
- Splay
- — not recorded —
- Stagger
- — not recorded —
- Key spacing
- 19.05 mm · MX-stem keycaps (OEM, SA, XDA, Cherry)
Switches
- Switch footprint
- Choc v1
- Switch sockets
- — not recorded —
Electronics
- Controller
- Pro Micro or Feather socket
- Connectivity
- Wireless with a nice!nano v2, or 6 other controllers
- USB port
- USB-C or micro-USB, depends on the dev board
- Firmware
- ZMK (pancake)
- Firmware targets
- — not recorded —
- Key wiring
- 4×12 matrix, column-to-row diodes
- Room for
- — not recorded —
Building it
- Build method
- PCB
- Soldering
- through-hole (diode)
- SMD required
- no
Licensing
- Hardware
- CERN-OHL-S 2.0
- Firmware
- CERN-OHL-S 2.0
- Documentation
- CERN-OHL-S 2.0
