orthocode

by jrodna · ★ 18 · checked today ·

71 keys unibody

Alps / MX soldered ATmega32A QMK

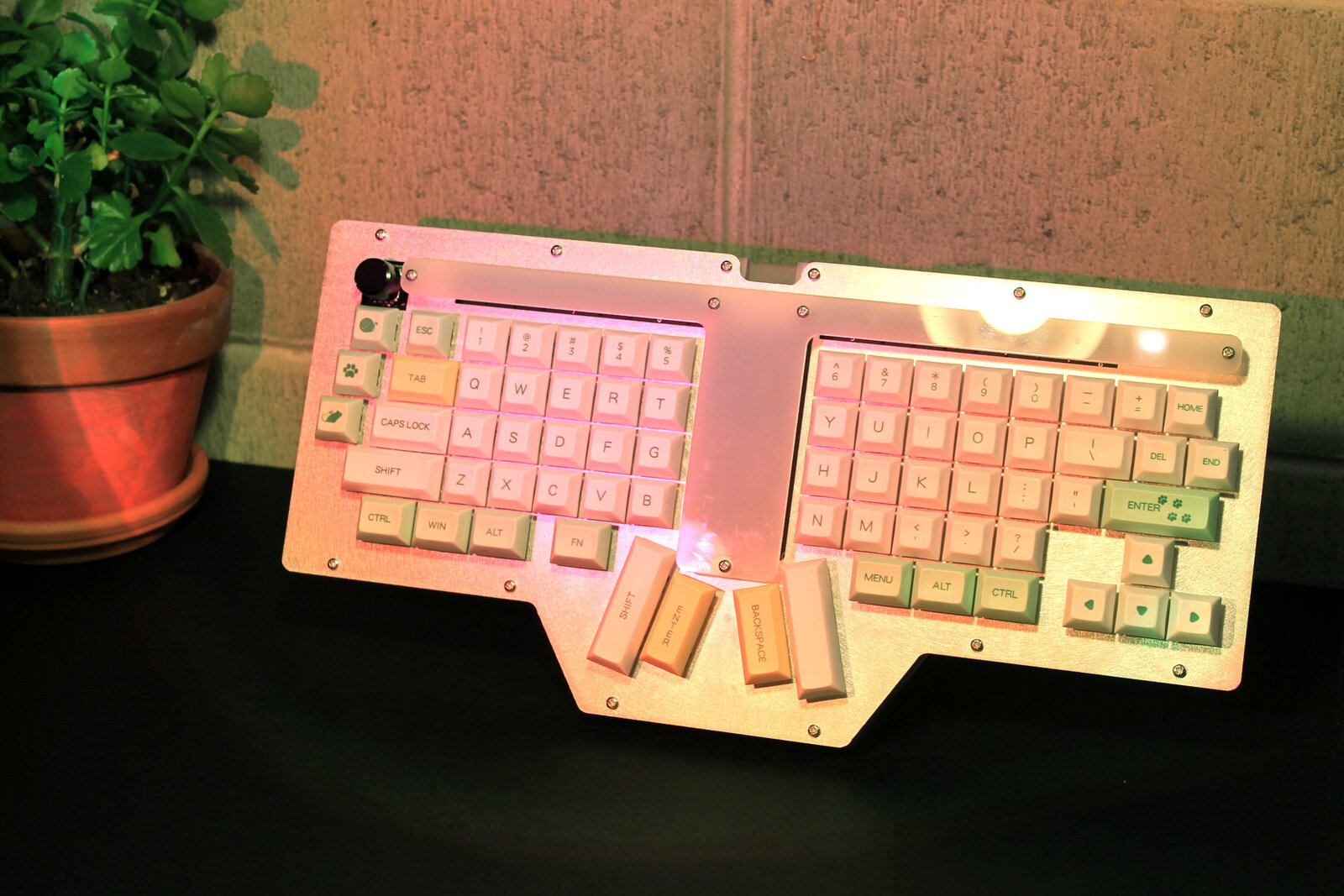

Photo of an assembled orthocode — An assembled orthocode, from the project's own README.

What fits this board → Compare with another board →

Record 83% complete · 15 of 18 fields

✓ Layout
✓ Switch footprint
✓ Build method
✓ Controller
✓ Body
✓ Firmware
✓ Hardware license
✓ Firmware license
✓ Documentation license
✓ Key pitch
✓ Soldering
✓ Soldered MCU
✓ Firmware targets
✗ Summary
✓ Key wiring
✓ Hotswap
✗ Splay
✗ Stagger

No summary recorded.

Layouts

71 keys

Spec

Shape

Body: unibody
Splay: — not recorded —
Stagger: — not recorded —
Key spacing: MX spacing · 19.05 × 19.05 mm

Switches

Switch footprint: Alps, MX
Hotswap: Mill-Max, or solder the switches in

Electronics

Controller: soldered ATmega32A
Connectivity: Wired — the soldered ATmega32A has no radio
USB port: USB-C
Firmware: QMK (orthocode)
Firmware targets: ATmega32A
Key wiring: 5×15 matrix, column-to-row diodes
Room for: encoder
Power switch: no
Exposed components: no

Building it

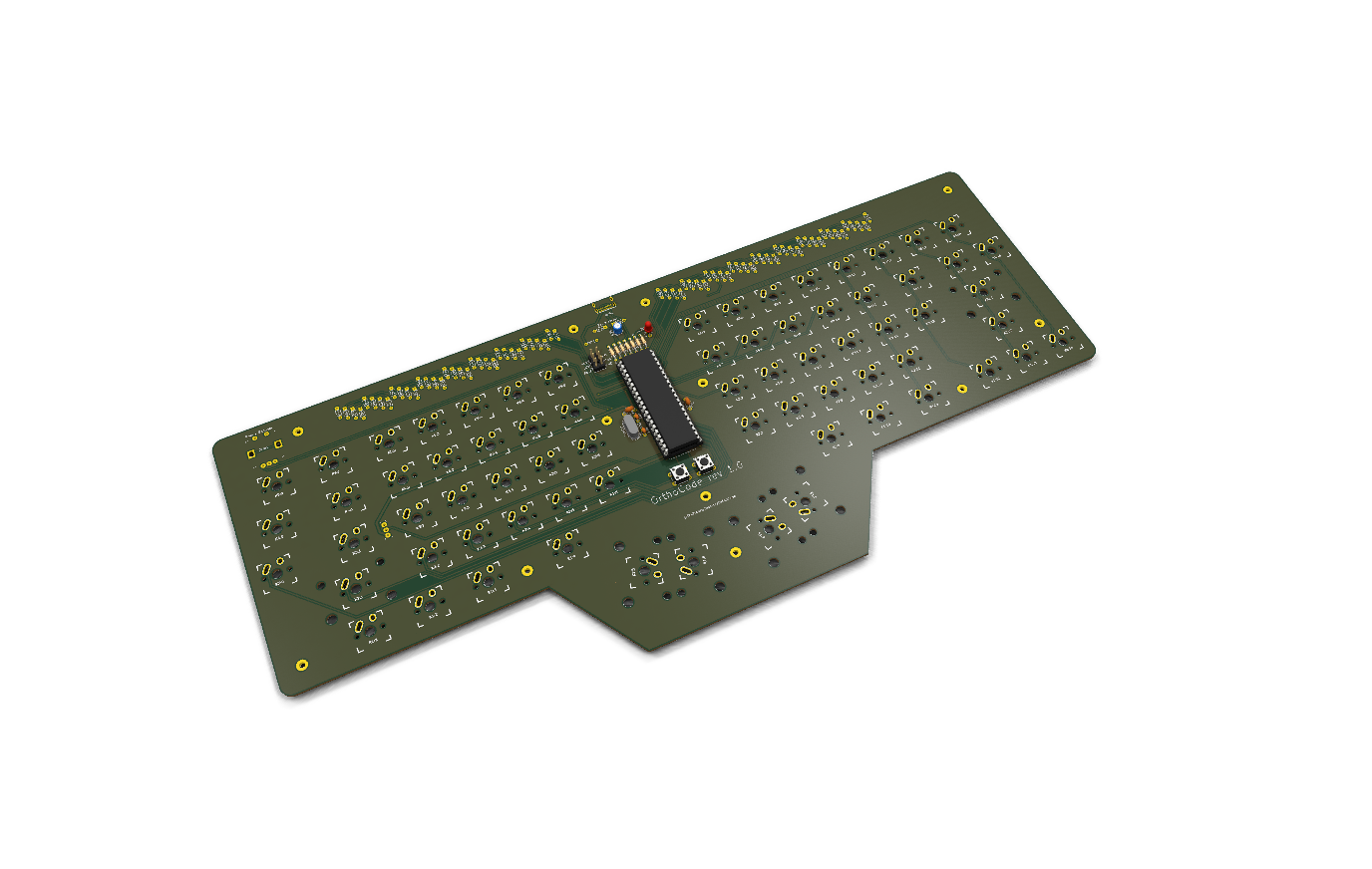

Build method: PCB
Soldering: through-hole (MCU, LED, diode, other)
SMD required: no

Licensing

Hardware: GPL-3.0-or-later
Firmware: GPL-3.0-or-later
Documentation: GPL-3.0-or-later

Sources

https://github.com/jrodna/orthocode
