Blue Team Pad

by fearherbs1 · ★ 6 · checked today ·

22 keys unibody

Alps / MX soldered RP2040 QMK

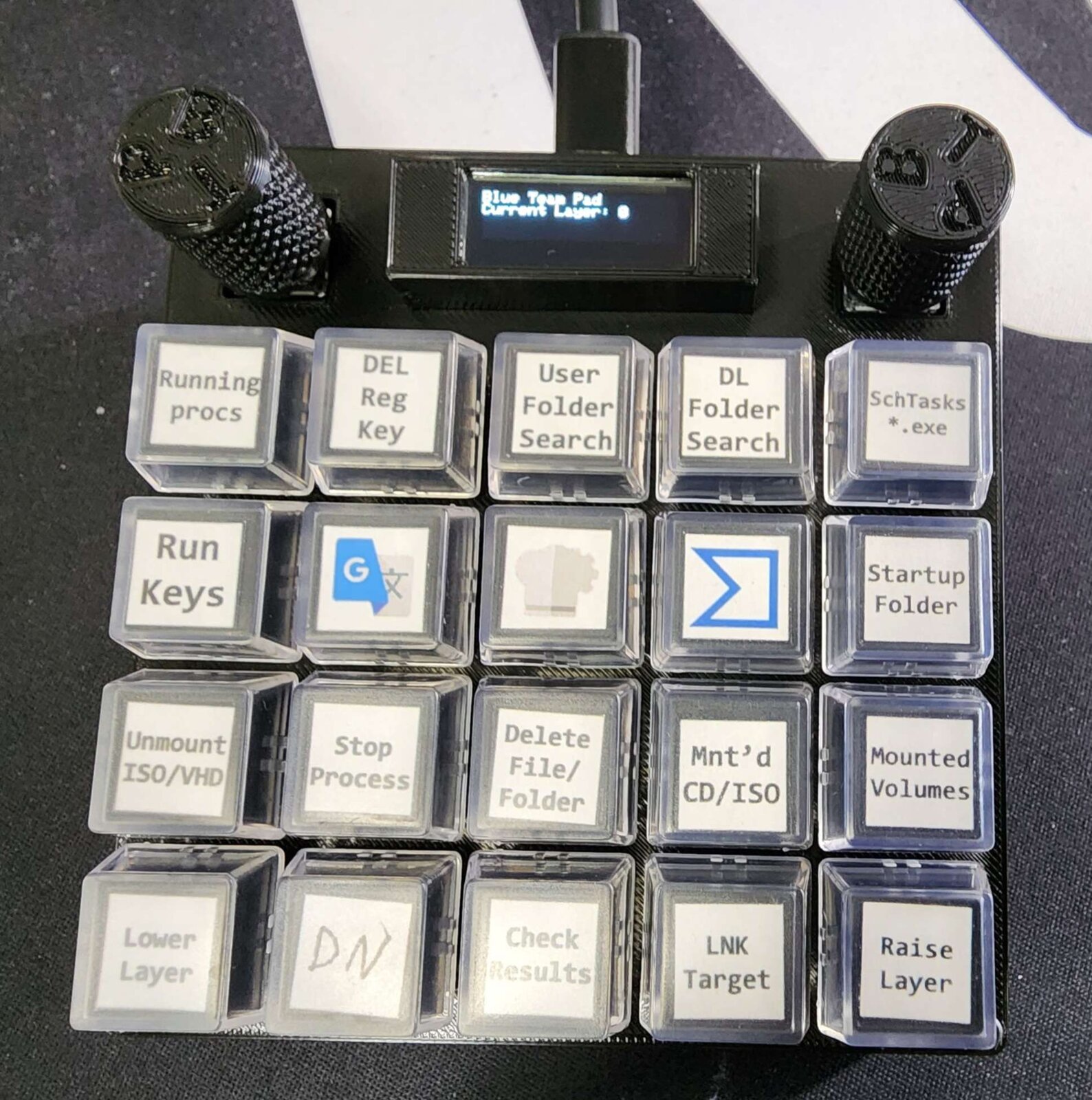

Photo of an assembled Blue Team Pad — An assembled Blue Team Pad, from the project's own README.

What fits this board → Compare with another board →

Record 94% complete · 17 of 18 fields

✓ Layout
✓ Switch footprint
✓ Build method
✓ Controller
✓ Body
✓ Firmware
✓ Hardware license
✓ Firmware license
✓ Documentation license
✓ Key pitch
✓ Soldering
✓ Soldered MCU
✓ Firmware targets
✓ Summary
✓ Key wiring
✗ Hotswap
✓ Splay
✓ Stagger

An open source macropad for the cyber security analyst.

From the project’s README · https://github.com/fearherbs1/blue-team-pad

Layouts

22 keys

Spec

Shape

Body: unibody
Splay: no
Stagger: ortholinear
Key spacing: MX spacing · 19.05 × 19.05 mm

Switches

Switch footprint: Alps, MX
Hotswap: — not recorded —

Electronics

Controller: soldered RP2040
Connectivity: Wired — the soldered RP2040 has no radio
USB port: USB-C
Firmware: QMK (fearherbs1/blue_team_pad)
Firmware targets: RP2040
Key wiring: 5×5 matrix, column-to-row diodes
Room for: display, encoder
Power switch: no
Exposed components: no

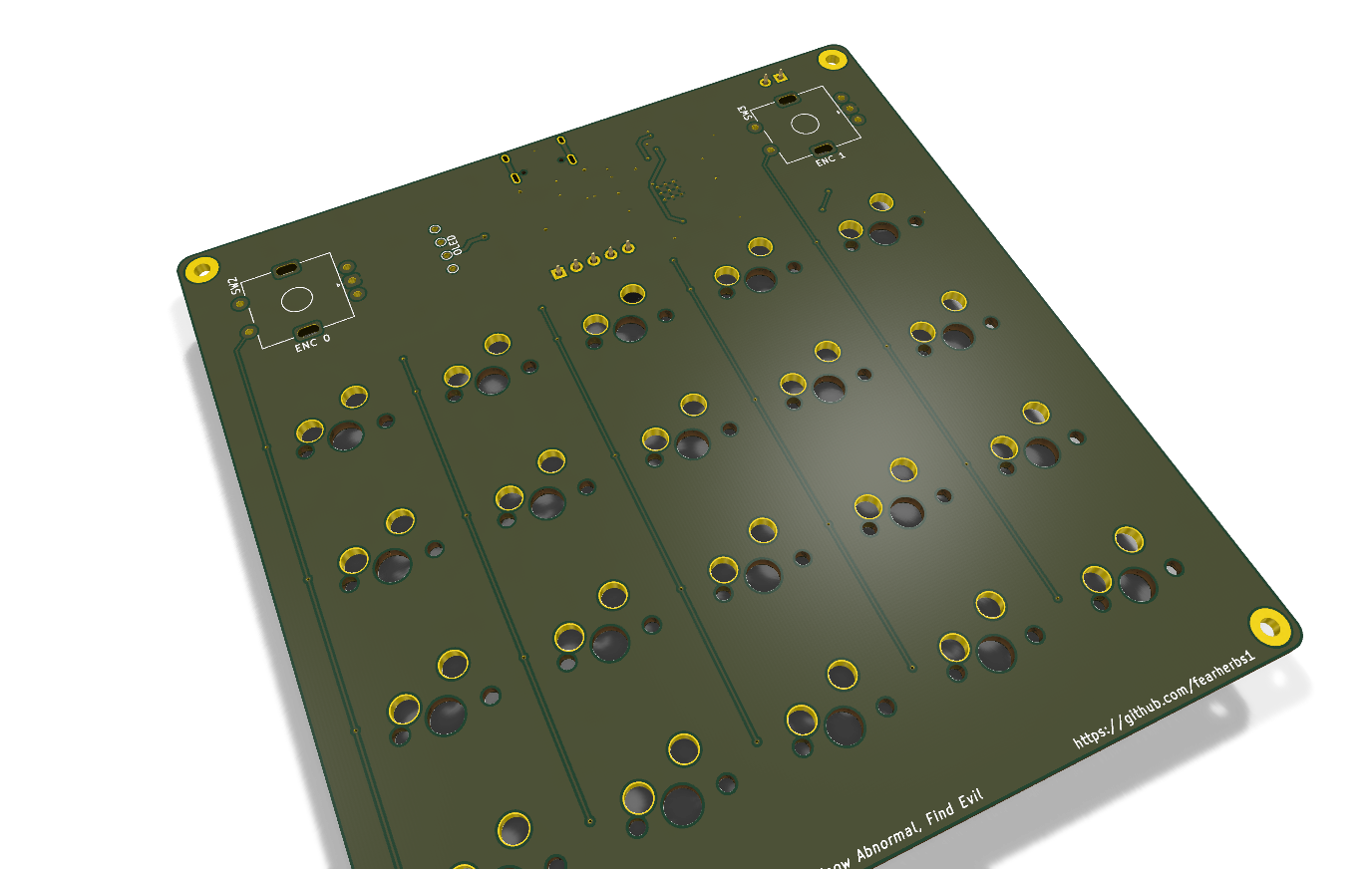

Building it

Build method: PCB
Soldering: SMD, fine-pitch (MCU, USB, passive, IC)
SMD required: yes

Licensing

Hardware: GPL-3.0-or-later
Firmware: GPL-3.0-or-later
Documentation: GPL-3.0-or-later

Sources

https://github.com/fearherbs1/blue-team-pad
