ELCANTORHS
44 keys split
Choc v1 BlackPill socket QMK

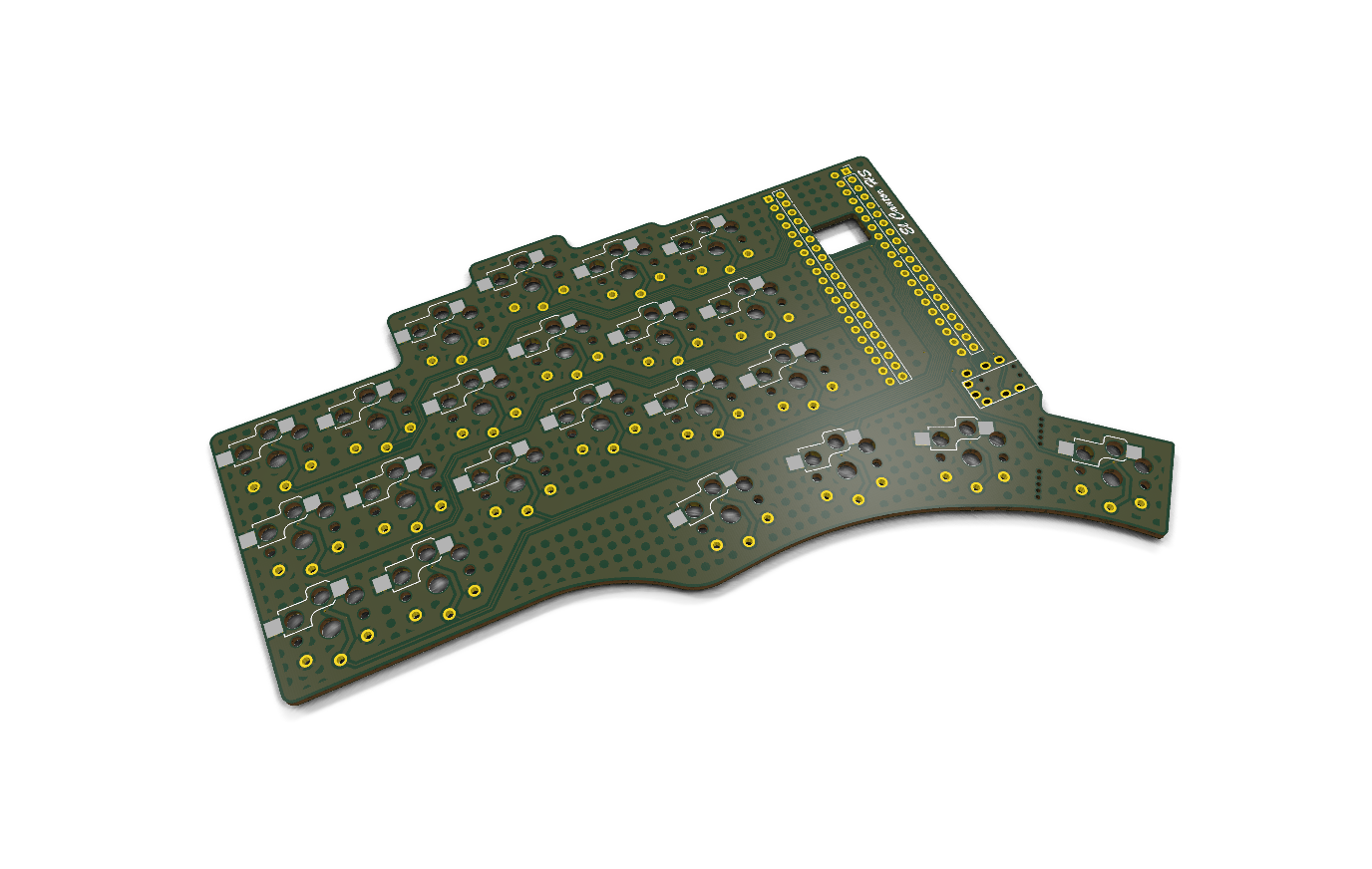

ELCANTORHS.kicad_pcb.
No switches or keycaps: this is the board as manufactured.
What fits this board → Compare with another board →
Record 100% complete · 17 of 17 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware license
- ✓ Firmware license
- ✓ Documentation license
- ✓ Key pitch
- ✓ Soldering
- ✓ Firmware targets
- ✓ Summary
- ✓ Key wiring
- ✓ Hotswap
- ✓ Splay
- ✓ Stagger
The El Cantor HS keyboard is a 44 key diodeless split keyboard with support for hotswap sockets, designed with simplicity in mind.
Layouts
- 44 keys
Spec
Shape
- Body
- split, 2 halves
- Split link
- TRRS cable
- Splay
- no
- Stagger
- column-staggered
- Key spacing
- Choc spacing · 18 × 17 mm
Switches
- Switch footprint
- Choc v1
- Hotswap
- Kailh socket, or solder the switches in
Electronics
- Controller
- BlackPill socket
- Connectivity
- Wireless with a MechWild PillBug — needs a ZMK config
- USB port
- USB-C, on the dev board
- Firmware
- QMK (elcantorhs)
- Firmware targets
- STM32F401
- Key wiring
- 22 direct pins per half
- Room for
- — not recorded —
- Power switch
- no
- Exposed components
- — not recorded —
Building it
- Build method
- PCB
- Soldering
- through-hole (connector)
- SMD required
- no
Licensing
- Hardware
- GPL-3.0-or-later
- Firmware
- GPL-3.0-or-later
- Documentation
- GPL-3.0-or-later
