Cantor Remix

by nilokr · ★ 123 · checked today ·

derived from Cantor

36 keys split

Choc v1 BlackPill socket QMK

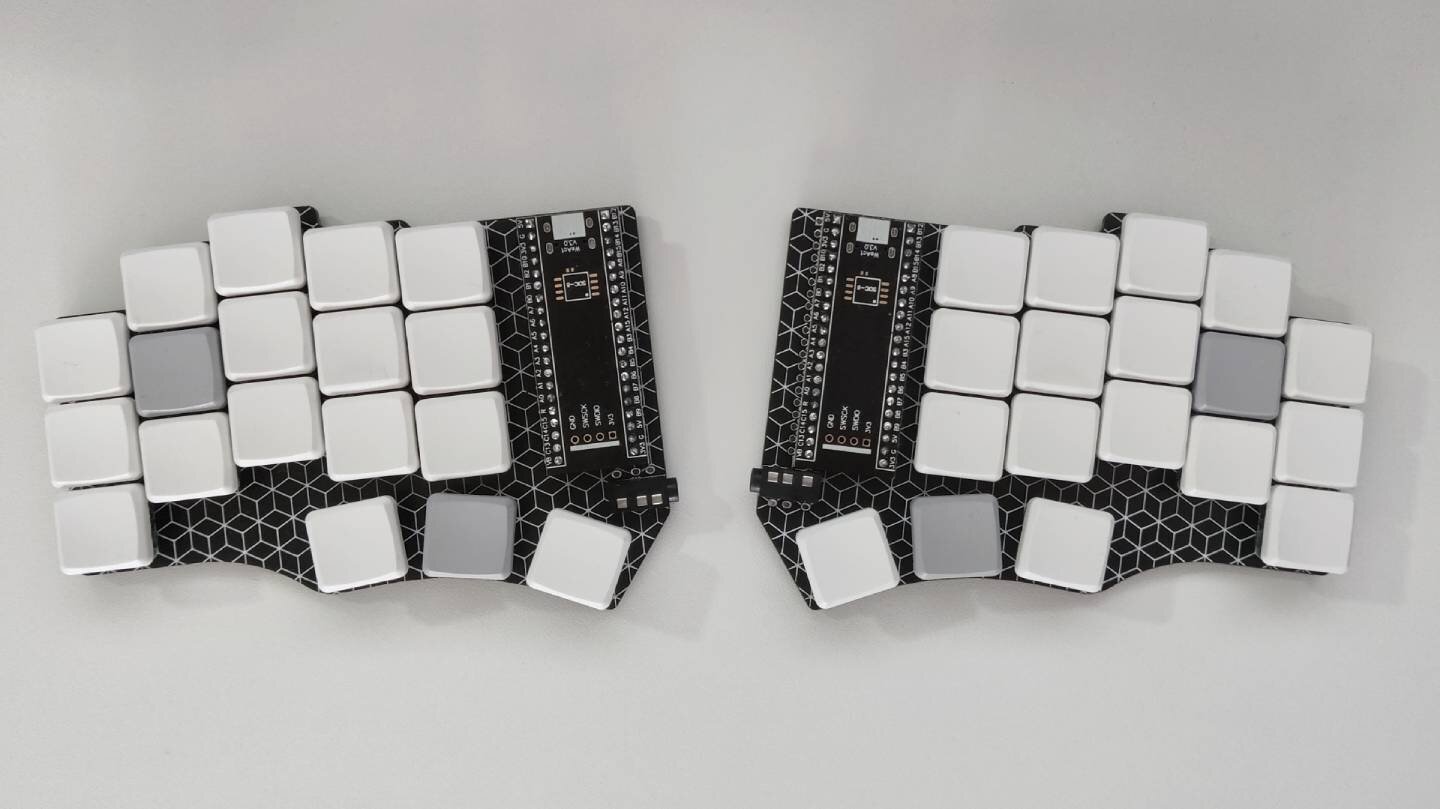

Photo of an assembled Cantor Remix — An assembled Cantor Remix, from the project's own README.

What fits this board → Compare with another board →

Record 94% complete · 16 of 17 fields

✓ Layout
✓ Switch footprint
✓ Build method
✓ Controller
✓ Body
✓ Firmware
✓ Hardware license
✓ Firmware license
✓ Documentation license
✓ Key pitch
✓ Soldering
✗ Firmware targets
✓ Summary
✓ Key wiring
✓ Hotswap
✓ Splay
✓ Stagger

This is a modified version of the Cantor keyboard, designed by diepala.

From the project’s README · https://github.com/nilokr/cantor-remix

Layouts

36 keys

Spec

Shape

Body: split, 2 halves
Split link: TRRS cable
Splay: no
Stagger: column-staggered
Key spacing: Choc spacing · 18 × 17 mm

Switches

Switch footprint: Choc v1
Hotswap: No, the switches solder in

Electronics

Controller: BlackPill socket
Connectivity: Wireless with a MechWild PillBug — needs a ZMK config
USB port: USB-C, on the dev board
Firmware: QMK (cantor)
Firmware targets: — not recorded —
Key wiring: 21 direct pins per half
Room for: — not recorded —
Power switch: no
Exposed components: — not recorded —

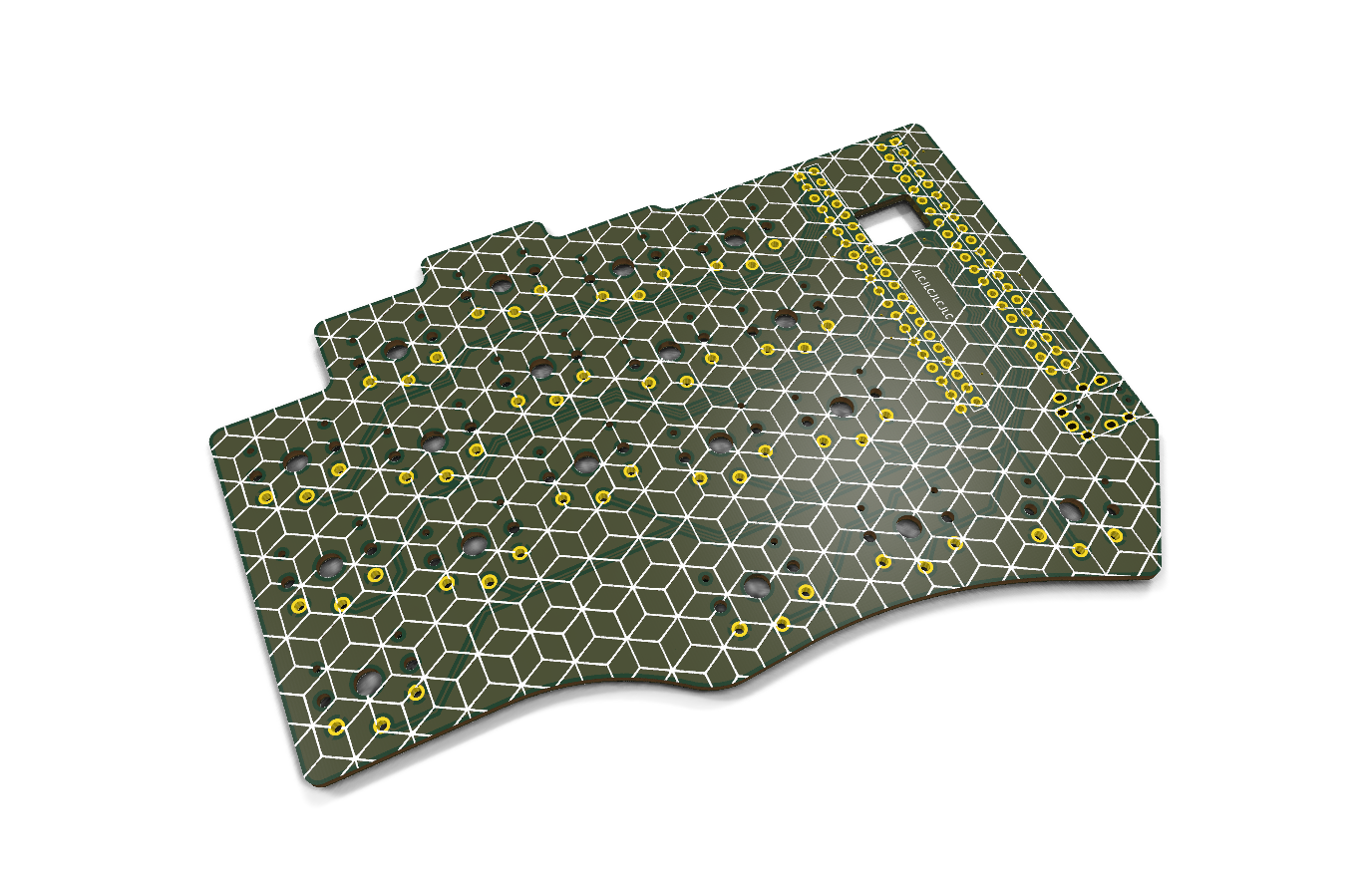

Building it

Build method: PCB
Soldering: through-hole (connector)
SMD required: no

Licensing

Hardware: GPL-3.0-or-later
Firmware: GPL-3.0-or-later
Documentation: GPL-3.0-or-later

Sources

https://github.com/nilokr/cantor-remix
