zwerg
50 keys split
MX soldered RP2040 QMK
What fits this board → Compare with another board →
Record 100% complete · 18 of 18 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware license
- ✓ Firmware license
- ✓ Documentation license
- ✓ Key pitch
- ✓ Soldering
- ✓ Soldered MCU
- ✓ Firmware targets
- ✓ Summary
- ✓ Key wiring
- ✓ Hotswap
- ✓ Splay
- ✓ Stagger

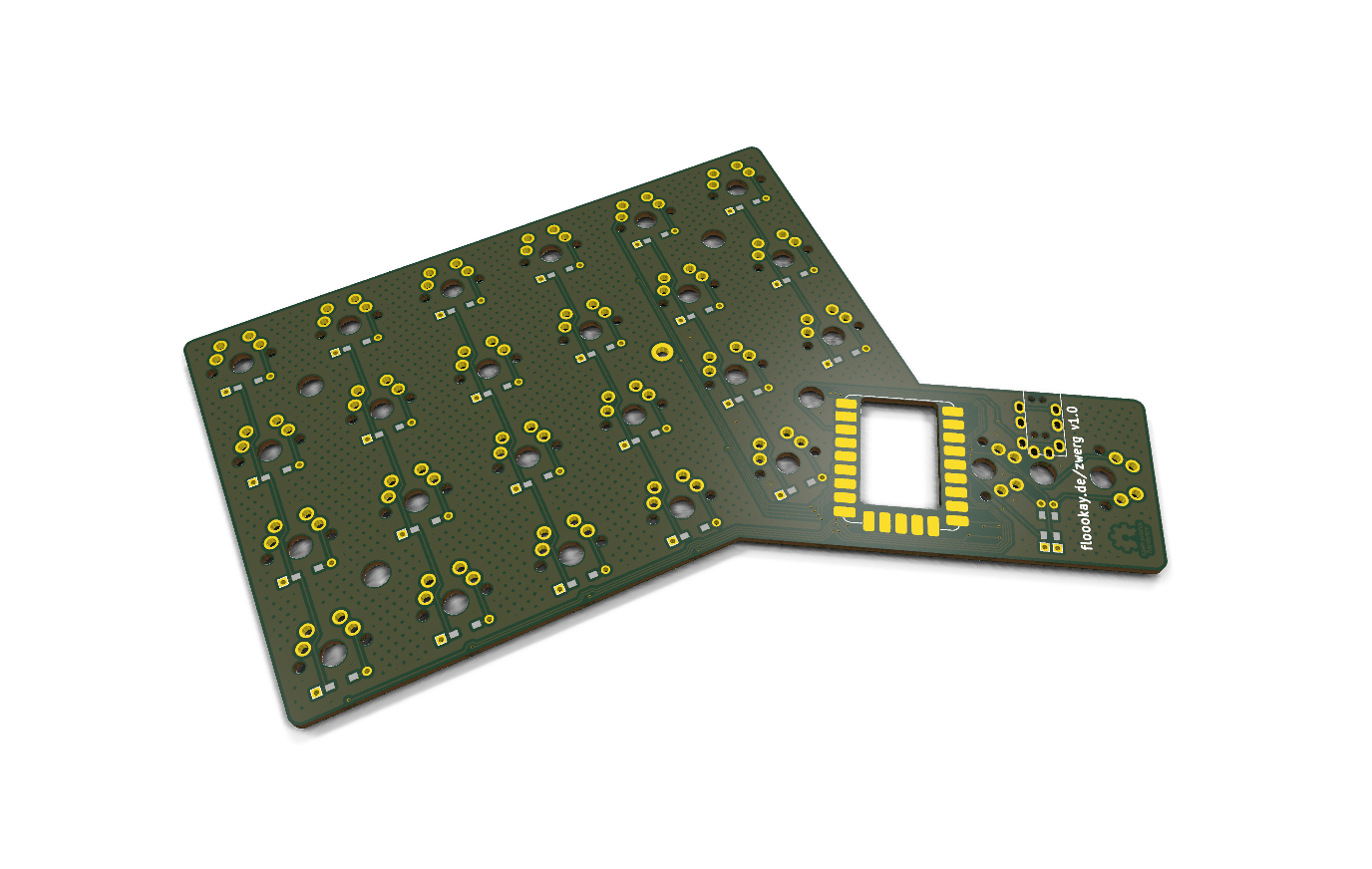

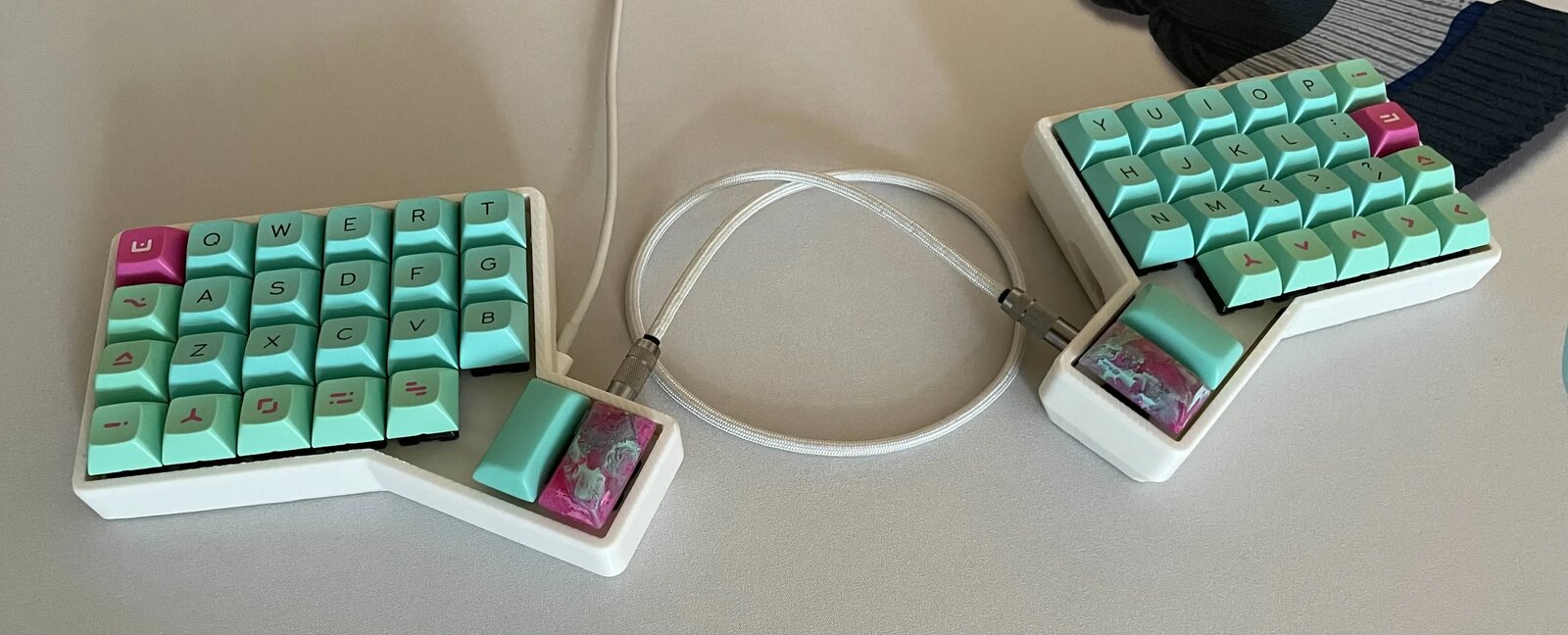

The zwerg is a 3x6 (well technically 4x6 I guess?) split ortholinear 40% keyboard. It's heavily inspired by RGBKB.net's Sol 3 of which I own two and absolutely adore.
Layouts
- 50 keys
Spec
Shape
- Body
- split, 2 halves
- Split link
- TRRS cable
- Splay
- no
- Stagger
- ortholinear
- Key spacing
- MX spacing · 19.05 × 19.05 mm
Switches
- Switch footprint
- MX
- Hotswap
- Mill-Max, or solder the switches in
Electronics
- Controller
- soldered RP2040
- Connectivity
- Wired — the soldered RP2040 has no radio
- USB port
- — not recorded —
- Firmware
- QMK (zwerg)
- Firmware targets
- RP2040
- Key wiring
- 5×6 matrix per half, row-to-column diodes
- Room for
- — not recorded —
- Power switch
- no
- Exposed components
- no
Building it
- Build method
- PCB
- Soldering
- through-hole (connector, other)
- SMD required
- no
Licensing
- Hardware
- CERN-OHL-S 2.0
- Firmware
- CERN-OHL-S 2.0
- Documentation
- CERN-OHL-S 2.0
