wired pierce
36 keys split
Alps / Choc v1 / MX Pro Micro socket QMK
pierce.kicad_pcb.

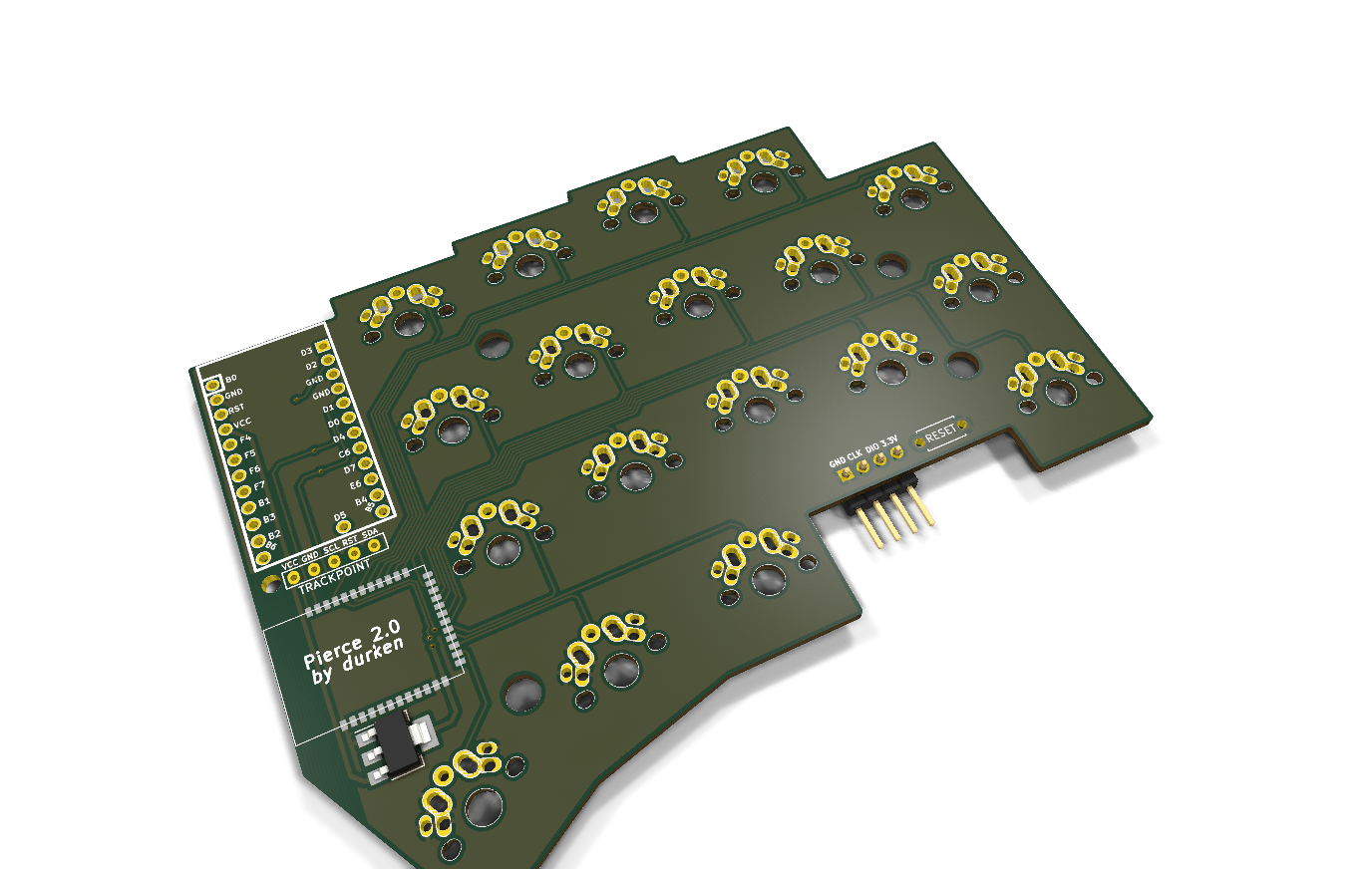

No switches or keycaps: this is the board as manufactured.
What fits this board → Compare with another board →
Record 94% complete · 16 of 17 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware license
- ✓ Firmware license
- ✓ Documentation license
- ✓ Key pitch
- ✓ Soldering
- ✓ Firmware targets
- ✓ Summary
- ✗ Key wiring
- ✓ Hotswap
- ✓ Splay
- ✓ Stagger
pierce 2.0 is a split modular wireless / semi-wireless 36 key column staggered keyboard. The design is inspired by Corne with more pinky stagger as well as only using 1u keycaps. It is possible to build a wireless version or a semi wireless version.
Layouts
- 36 keys
Spec
Shape
- Body
- split, 2 halves
- Split link
- — not recorded —
- Splay
- no
- Stagger
- column-staggered
- Key spacing
- MX spacing · 19.05 × 19.05 mm
Switches
- Switch footprint
- Alps, Choc v1, MX
- Hotswap
- Mill-Max, or solder the switches in
Electronics
- Controller
- Pro Micro socket
- Connectivity
- Wireless with a nice!nano v2 — needs a ZMK config
- USB port
- USB-C or micro-USB, depends on the dev board
- Firmware
- QMK (pierce)
- Firmware targets
- ATmega32U4
- Key wiring
- — not recorded —
- Room for
- — not recorded —
- Power switch
- no
- Exposed components
- — not recorded —
Building it
- Build method
- PCB
- Soldering
- SMD, hand-solderable (other)
- SMD required
- yes
Licensing
- Hardware
- MIT
- Firmware
- MIT
- Documentation
- MIT
