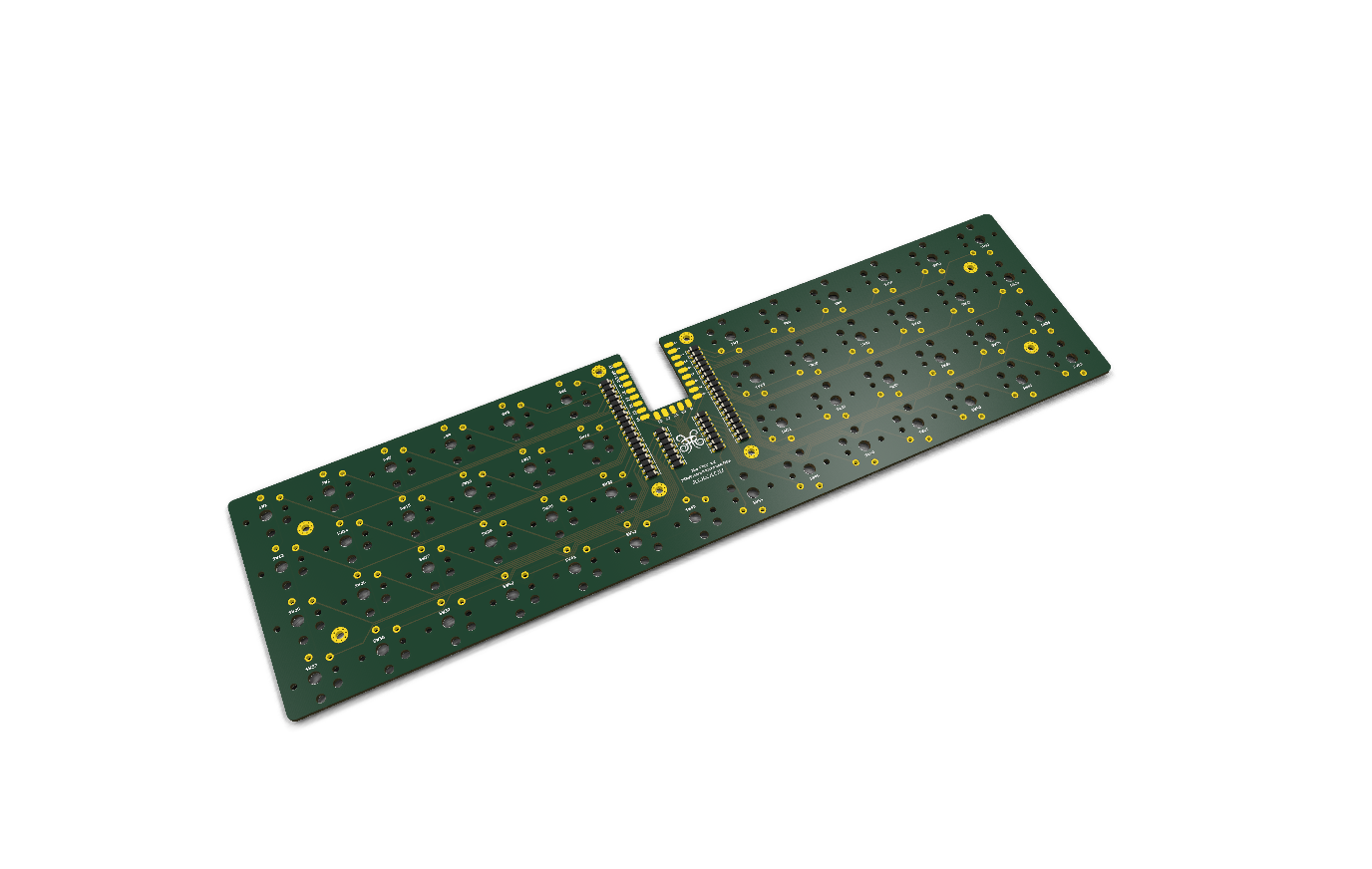

sha choc
from the Sha family
50 keys unibody
Choc v1 RP2040-Zero socket QMK
What fits this board → Compare with another board →
Record 88% complete · 15 of 17 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware license
- ✓ Firmware license
- ✓ Documentation license
- ✓ Key pitch
- ✓ Soldering
- ✗ Firmware targets
- ✗ Summary
- ✓ Key wiring
- ✓ Hotswap
- ✓ Splay
- ✓ Stagger
No summary recorded.
Layouts
- 50 keys
Spec
Shape
- Body
- unibody
- Splay
- no
- Stagger
- ortholinear
- Key spacing
- Choc spacing · 18 × 17 mm
Switches
- Switch footprint
- Choc v1
- Hotswap
- No, the switches solder in
Electronics
- Controller
- RP2040-Zero socket
- Connectivity
- No wireless controller we know of fits this socket
- USB port
- USB-C, on the dev board
- Firmware
- QMK (sha)
- Firmware targets
- — not recorded —
- Key wiring
- 8×7 matrix, column-to-row diodes
- Room for
- — not recorded —
- Power switch
- no
- Exposed components
- yes
Building it
- Build method
- PCB
- Soldering
- SMD, hand-solderable (diode)
- SMD required
- yes
Licensing
- Hardware
- MIT
- Firmware
- MIT
- Documentation
- MIT
