Sango

by Aidan-OS · ★ 0 · checked 2 days ago ·

72 keys split

Choc v1 soldered RP2040 QMK

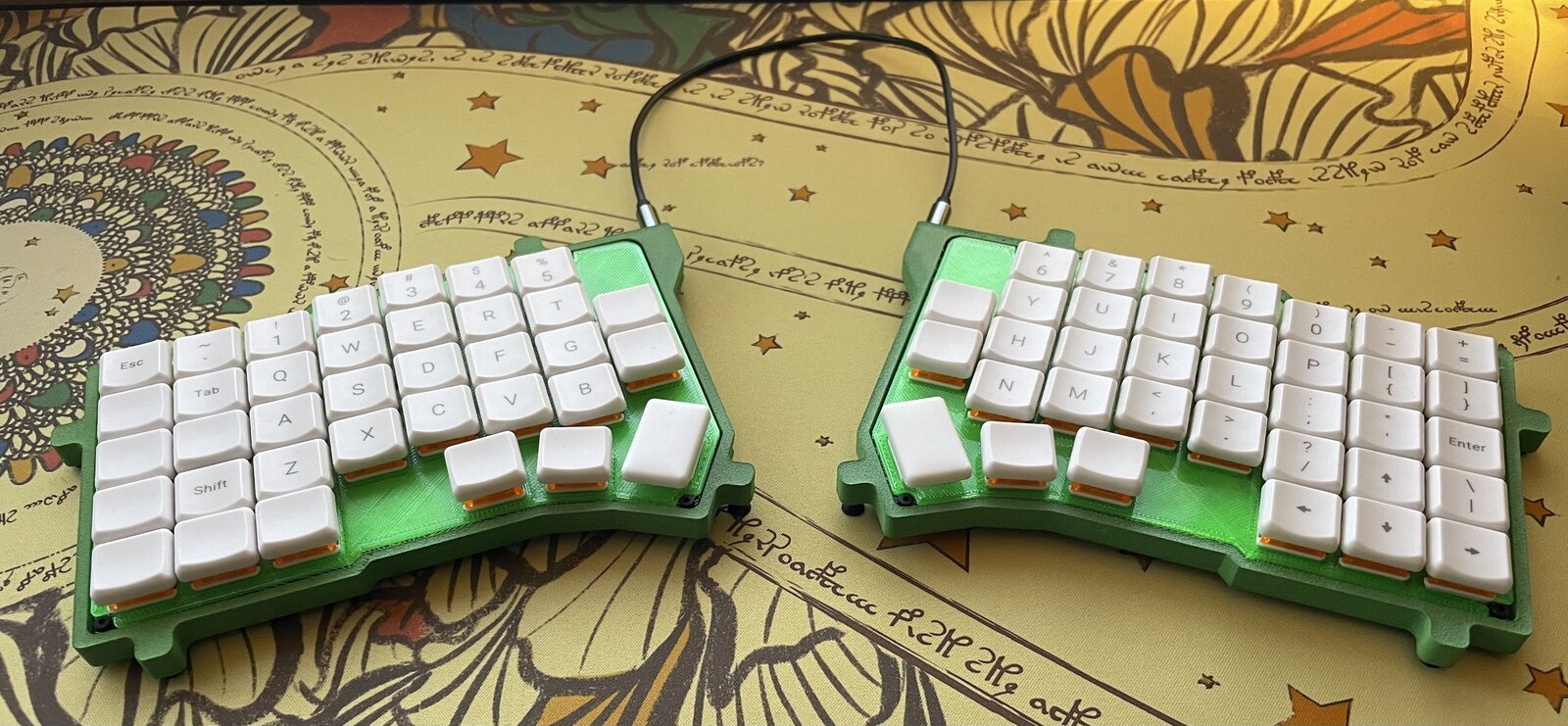

Photo of an assembled Sango — An assembled Sango, from the project's own README.

What fits this board → Compare with another board →

Record 100% complete · 18 of 18 fields

✓ Layout
✓ Switch footprint
✓ Build method
✓ Controller
✓ Body
✓ Firmware
✓ Hardware license
✓ Firmware license
✓ Documentation license
✓ Key pitch
✓ Soldering
✓ Soldered MCU
✓ Firmware targets
✓ Summary
✓ Key wiring
✓ Hotswap
✓ Splay
✓ Stagger

A 65%ish percent column linear split keyboard.

From the project’s README · https://github.com/Aidan-OS/Sango

Layouts

72 keys

Spec

Shape

Body: split, 2 halves
Split link: TRRS cable
Splay: no
Stagger: column-staggered
Key spacing: Choc spacing · 18 × 17 mm

Switches

Switch footprint: Choc v1
Hotswap: Kailh socket

Electronics

Controller: soldered RP2040
Connectivity: Wired — the soldered RP2040 has no radio
USB port: USB-C
Firmware: QMK (aidansmithdotdev/sango)
Firmware targets: RP2040
Key wiring: 5×8 matrix per half, column-to-row diodes
Room for: — not recorded —
Power switch: no
Exposed components: no

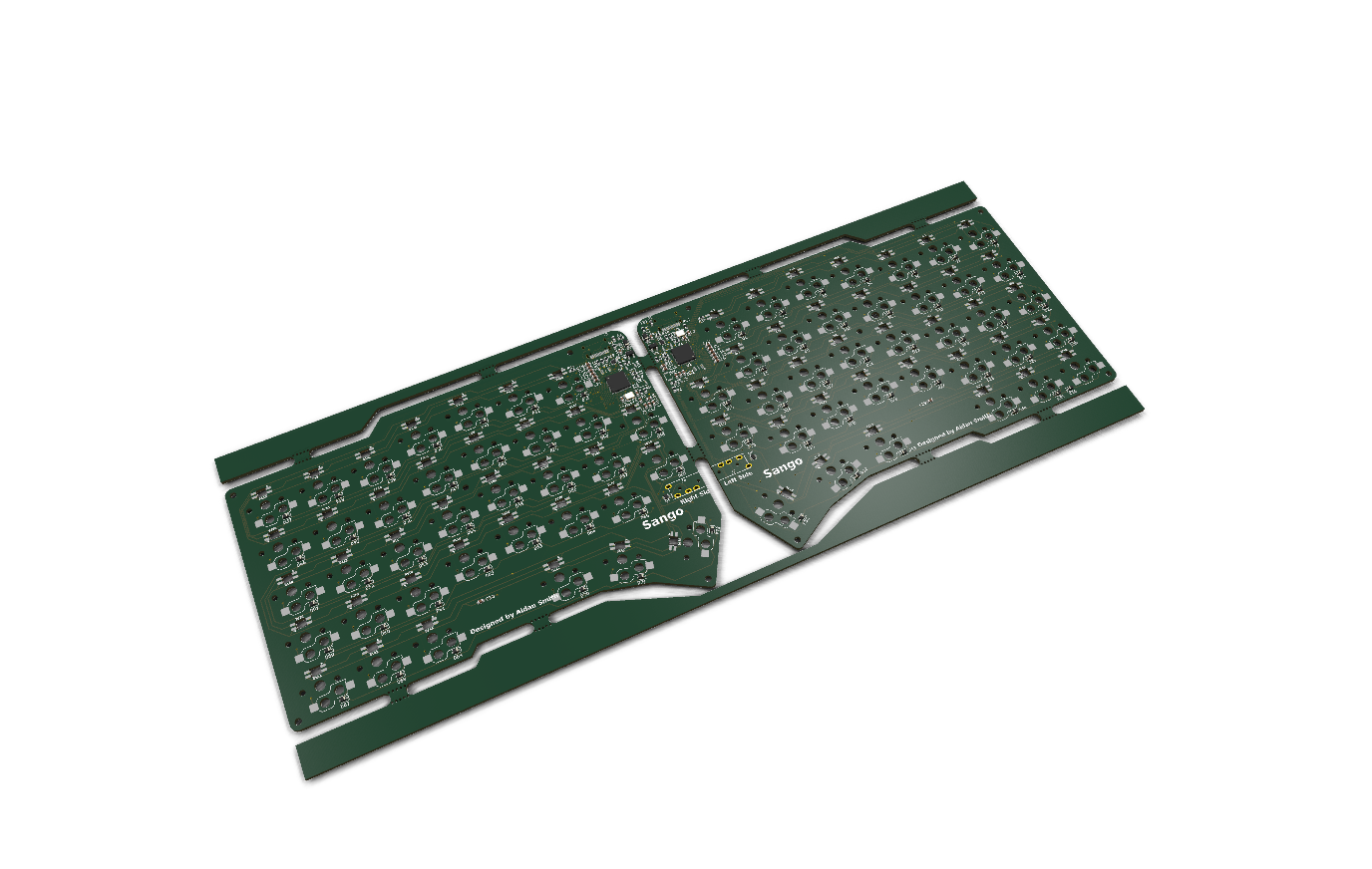

Building it

Build method: PCB
Soldering: SMD, fine-pitch (MCU, USB)
SMD required: yes

Licensing

Hardware: Apache-2.0
Firmware: Apache-2.0
Documentation: Apache-2.0

Sources

https://github.com/Aidan-OS/Sango
