redherring
89 keys unibody
MX soldered ATmega32A QMK
What fits this board → Compare with another board →
Record 89% complete · 16 of 18 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware license
- ✓ Firmware license
- ✓ Documentation license
- ✓ Key pitch
- ✓ Soldering
- ✓ Soldered MCU
- ✓ Firmware targets
- ✓ Summary
- ✓ Key wiring
- ✓ Hotswap
- ✗ Splay
- ✗ Stagger

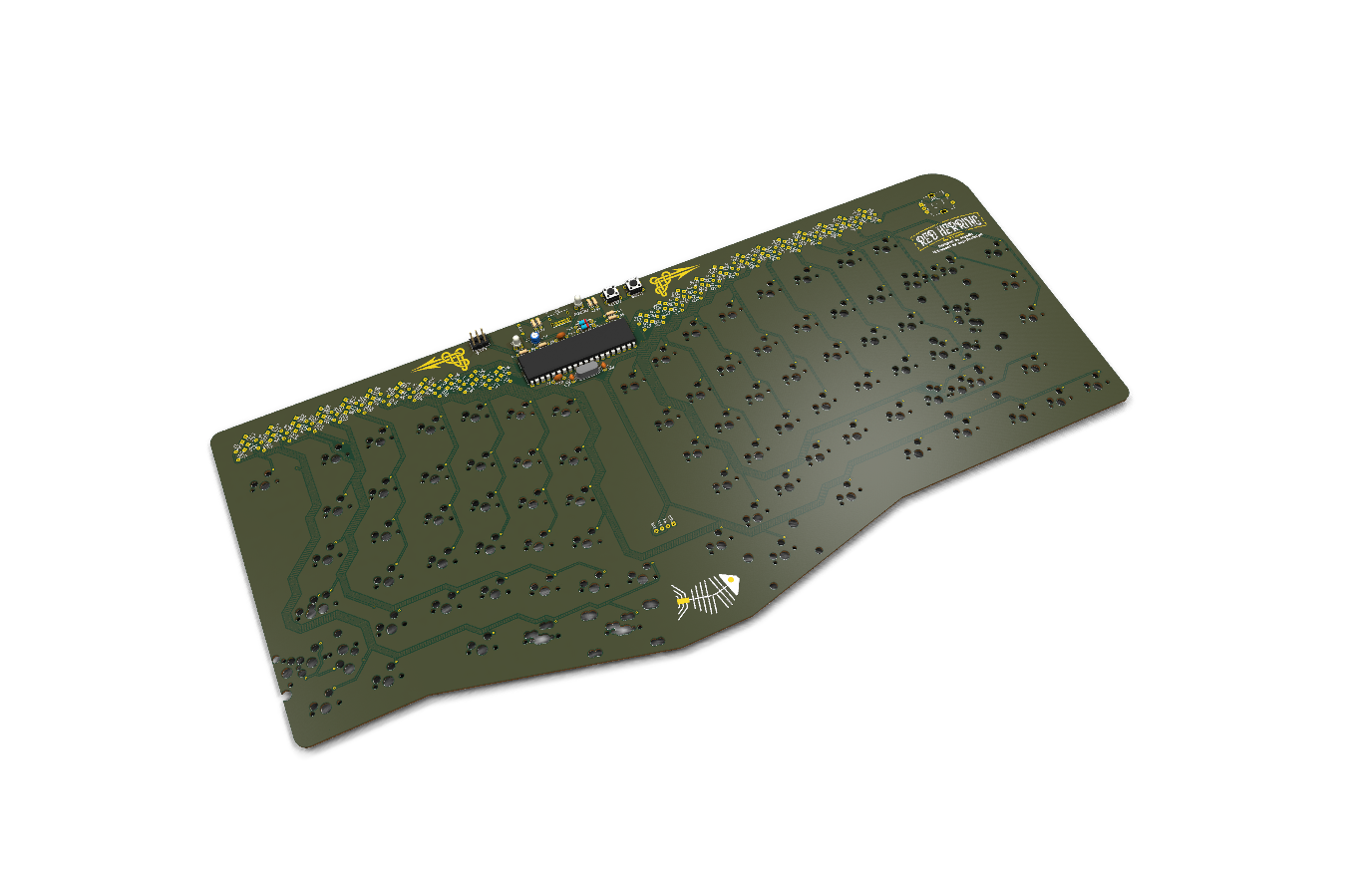

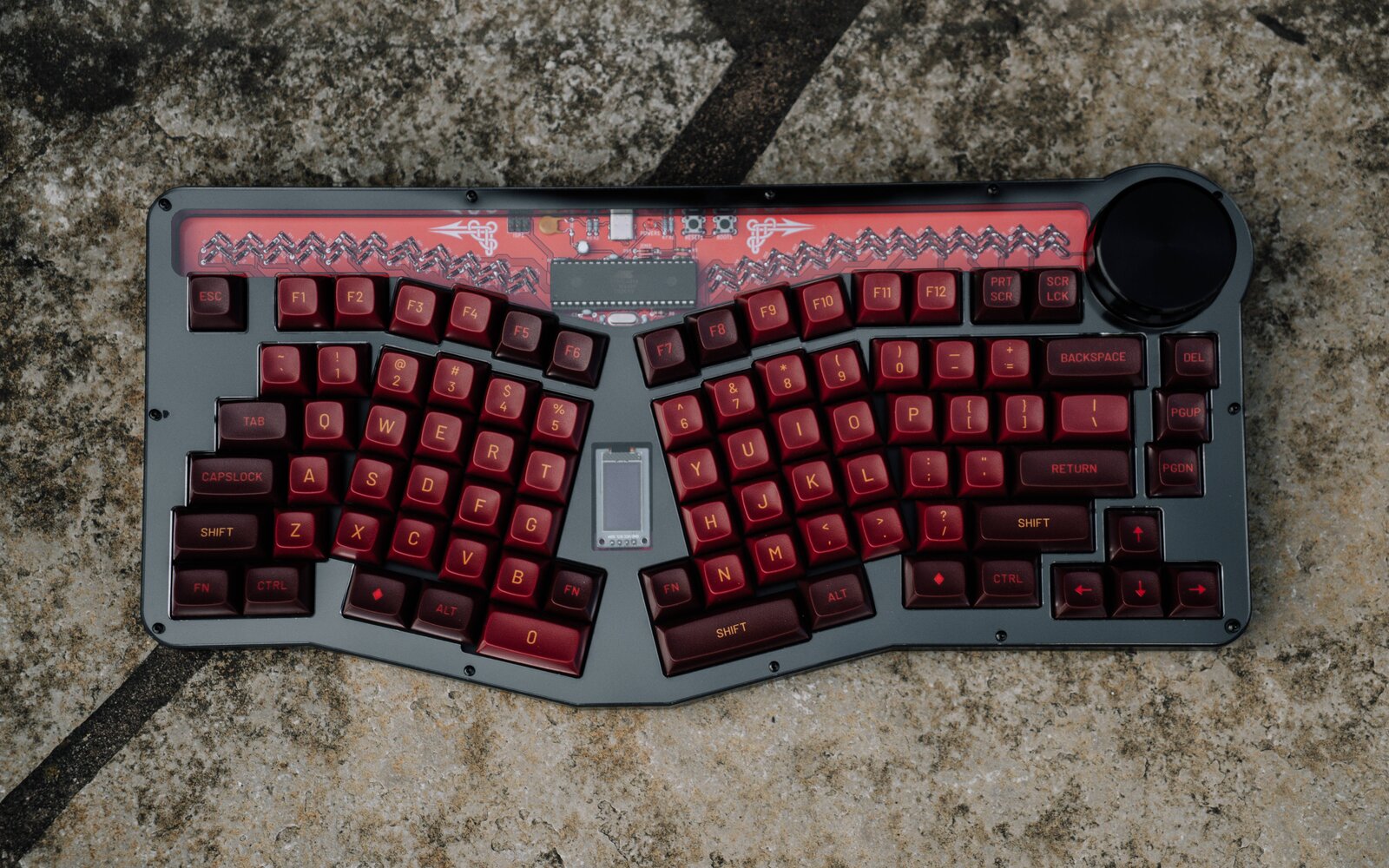

Red Herring is a 75% ortholinear keyboard with staggered columns and a split ergonomic layout similar to an Arisu/Alice. Here you will find the KiCad 6 files for the PCB and plate, along with Illustrator files for the case and wrist rest. Keyboard features:
Layouts
- 89 keys
Spec
Shape
- Body
- unibody
- Splay
- — not recorded —
- Stagger
- — not recorded —
- Key spacing
- MX spacing · 19.05 × 19.05 mm
Switches
- Switch footprint
- MX
- Hotswap
- Kailh socket, Gateron socket, Mill-Max, or solder the switches in
Electronics
- Controller
- soldered ATmega32A
- Connectivity
- Wired — the soldered ATmega32A has no radio
- USB port
- USB-C
- Firmware
- QMK (dcpedit/redherring)
- Firmware targets
- ATmega32A
- Key wiring
- 6×15 matrix, column-to-row diodes
- Room for
- display, encoder
- Power switch
- no
- Exposed components
- yes
Building it
- Build method
- PCB
- Soldering
- SMD, fine-pitch (USB)
- SMD required
- yes
Licensing
- Hardware
- CC BY 4.0
- Firmware
- CC BY 4.0
- Documentation
- CC BY 4.0
