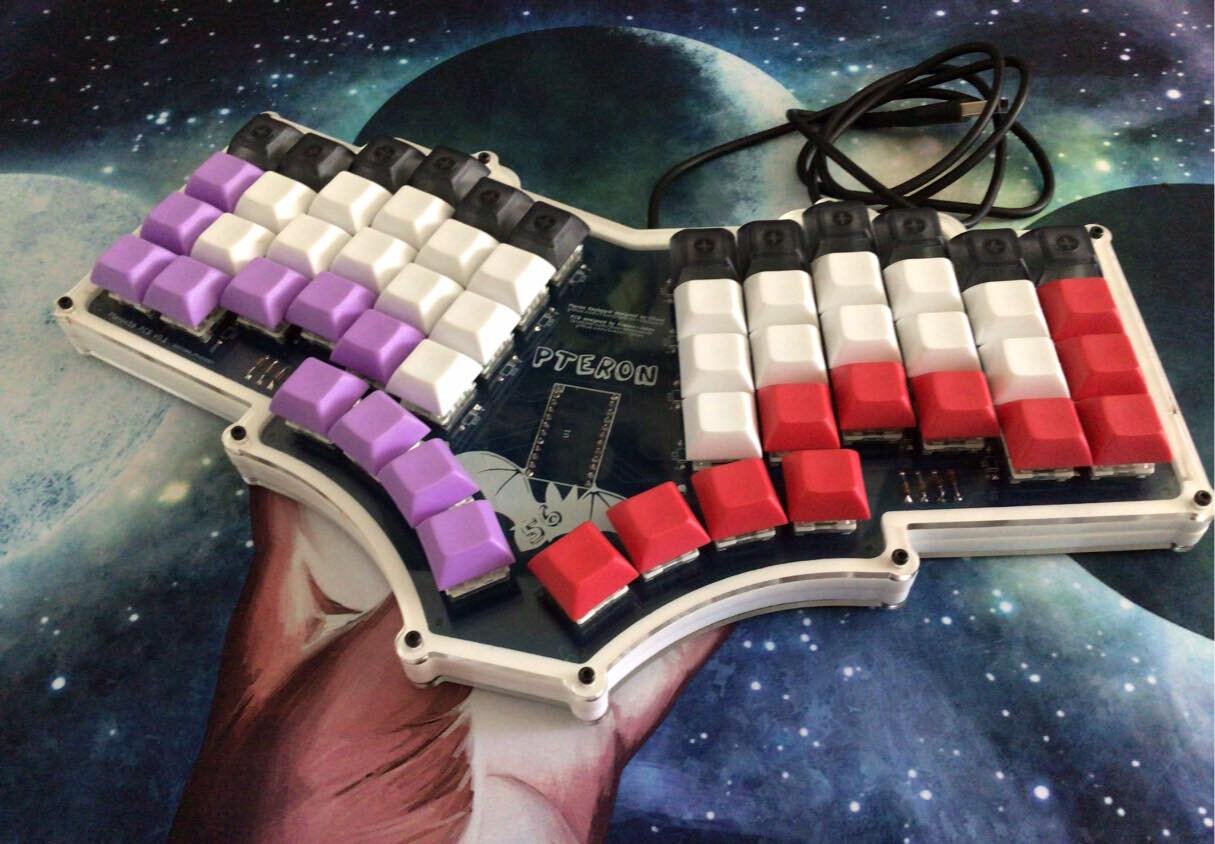

Pteron56v0
56 keys unibody
Alps / MX Pro Micro socket QMK
What fits this board → Compare with another board →
Record 100% complete · 17 of 17 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware license
- ✓ Firmware license
- ✓ Documentation license
- ✓ Key pitch
- ✓ Soldering
- ✓ Firmware targets
- ✓ Summary
- ✓ Key wiring
- ✓ Hotswap
- ✓ Splay
- ✓ Stagger
This project is the evolution of the Pteron-Keyboard project, an incredible ergonomic keyboard that was handwired only.
Layouts
- 56 keys
Spec
Shape
- Body
- unibody
- Splay
- no
- Stagger
- column-staggered
- Key spacing
- MX spacing · 19.05 × 19.05 mm
Switches
- Switch footprint
- Alps, MX
- Hotswap
- Mill-Max, or solder the switches in
Electronics
- Controller
- Pro Micro socket
- Connectivity
- Wireless with a nice!nano v2 — needs a ZMK config
- USB port
- USB-C or micro-USB, depends on the dev board
- Firmware
- QMK (kraken_jones/pteron56)
- Firmware targets
- ATmega32U4
- Key wiring
- 5×12 matrix, row-to-column diodes
- Room for
- — not recorded —
- Power switch
- no
- Exposed components
- no
Building it
- Build method

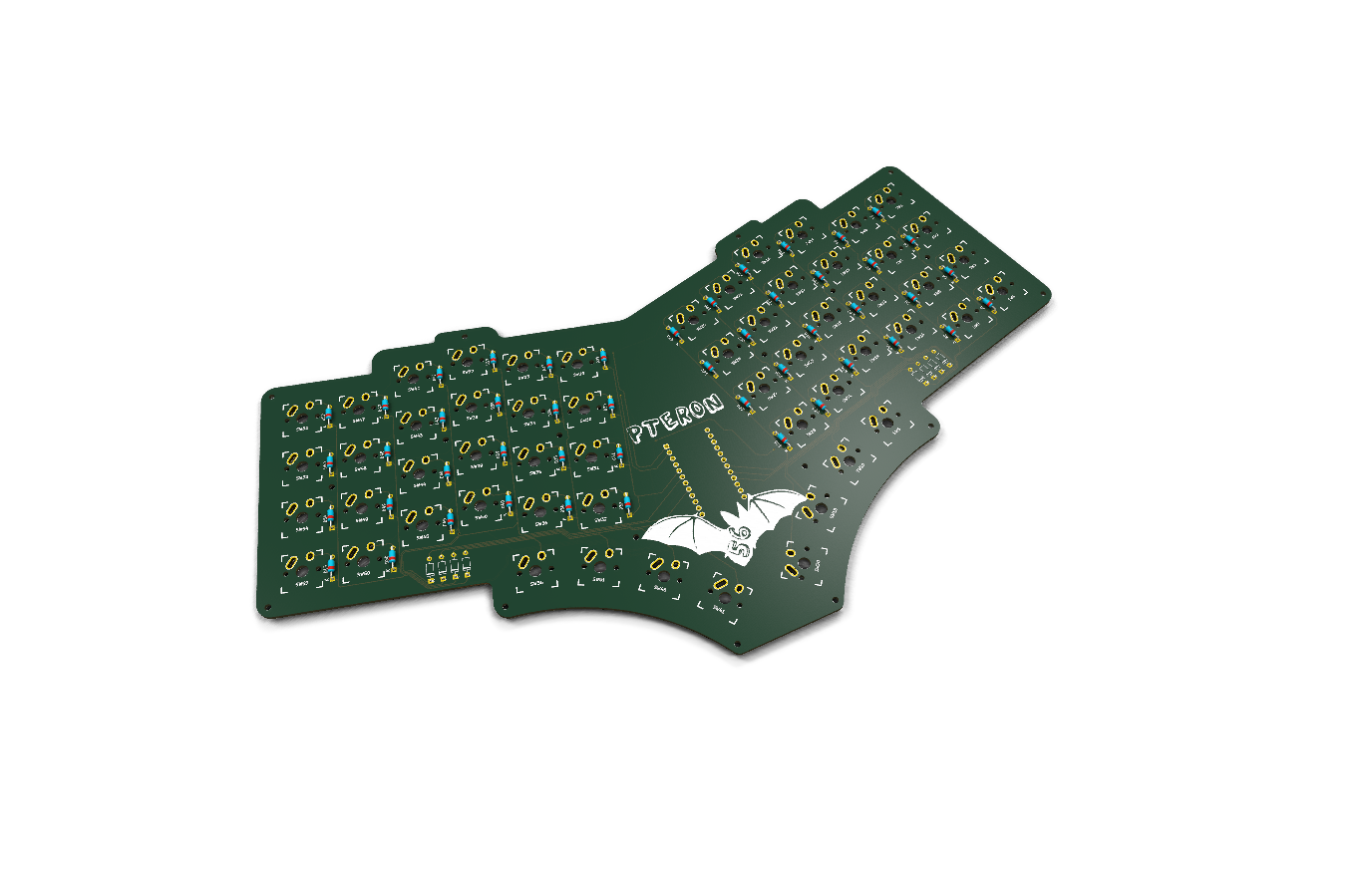

- PCB
- Soldering
- through-hole (diode)
- SMD required
- no
Licensing
- Hardware
- GPL-3.0-or-later
- Firmware
- GPL-3.0-or-later
- Documentation
- GPL-3.0-or-later
