Pica40
40 keys split
Choc v1 / MX Seeed XIAO socket QMK
What fits this board → Compare with another board →
Record 94% complete · 16 of 17 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware license
- ✓ Firmware license
- ✓ Documentation license
- ✓ Key pitch
- ✓ Soldering
- ✓ Firmware targets
- ✓ Summary
- ✗ Key wiring
- ✓ Hotswap
- ✓ Splay
- ✓ Stagger

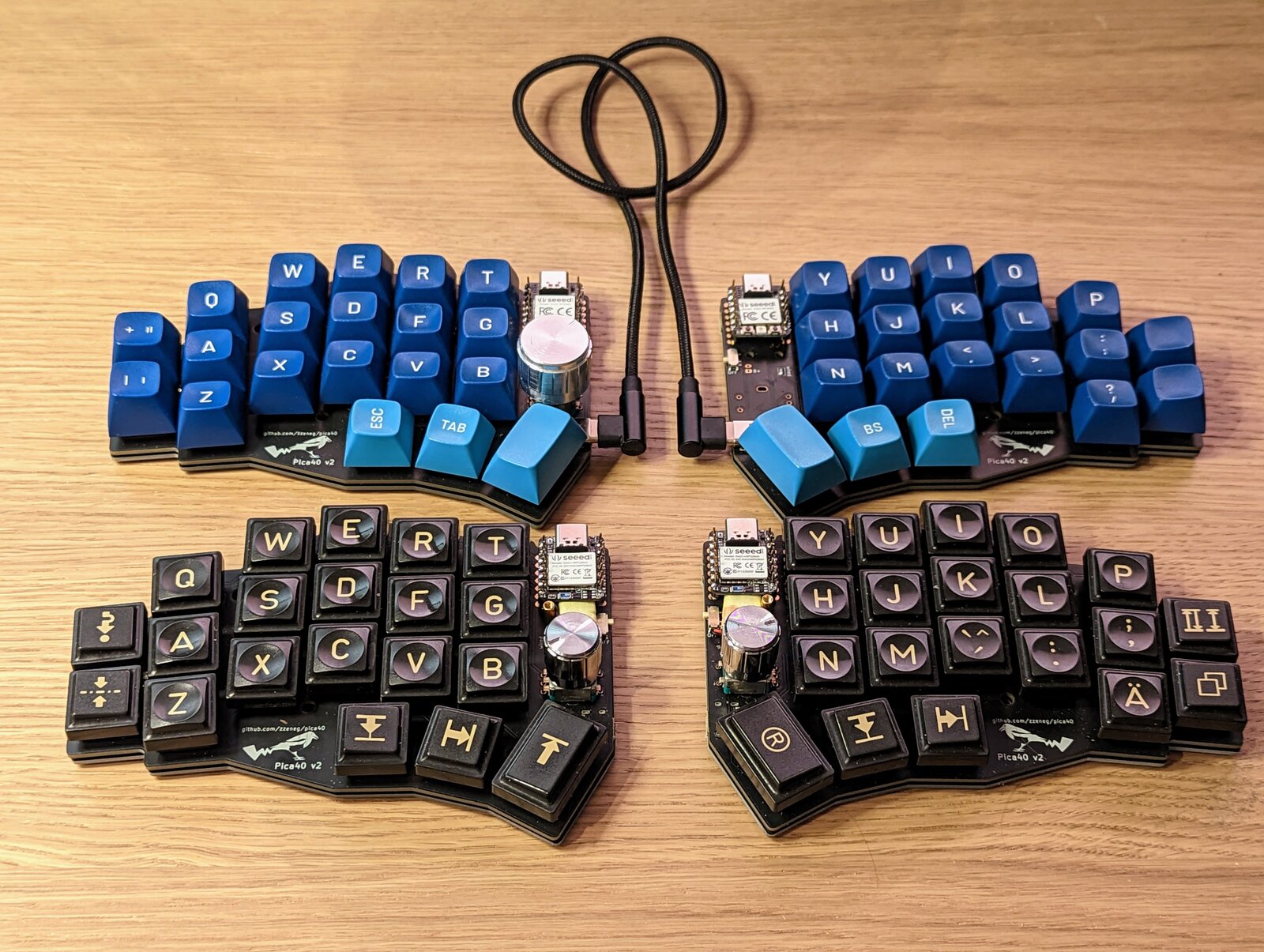

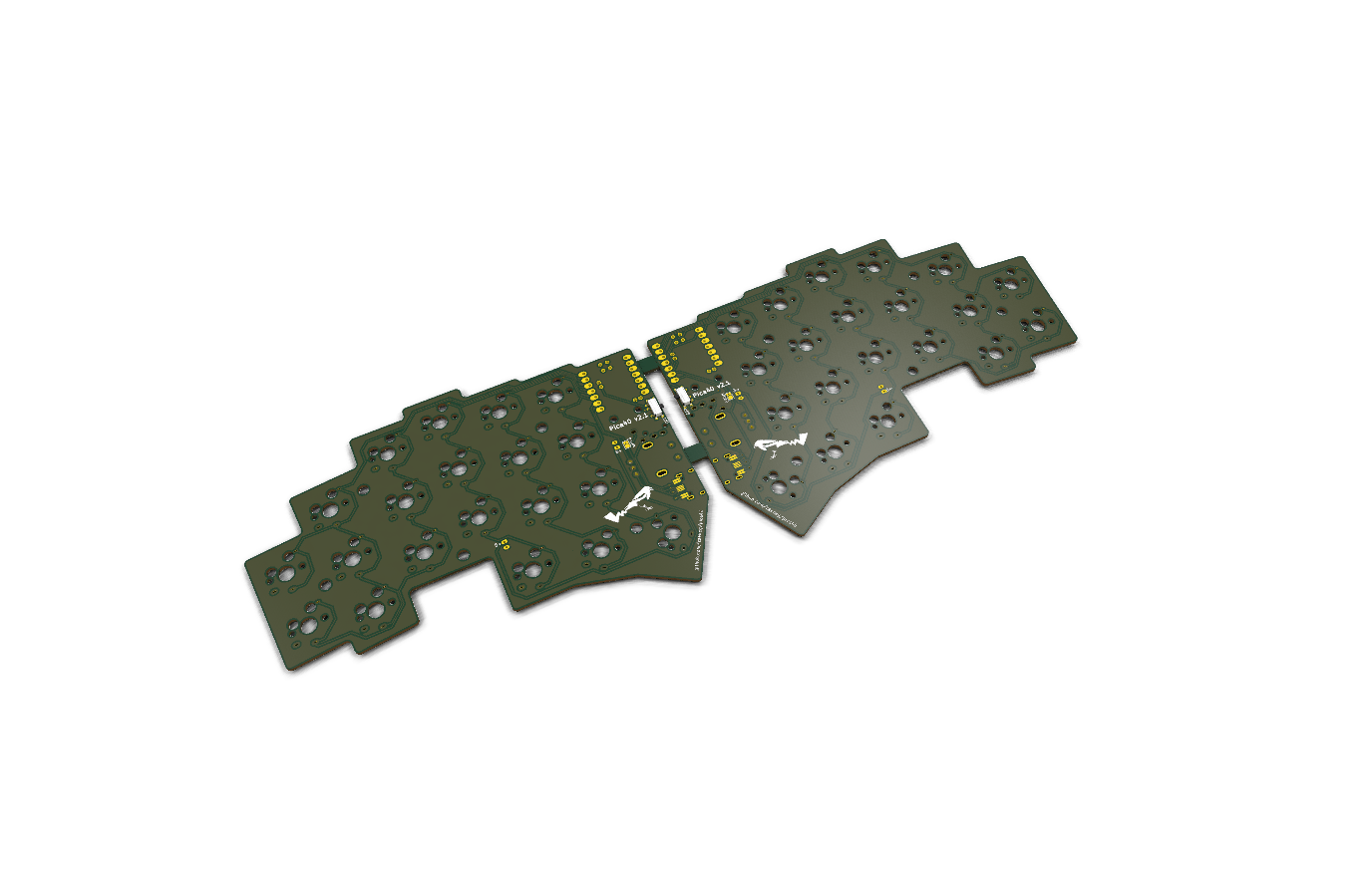

Split keyboard with 40 keys using XIAO controllers.
Layouts
- 40 keys
Spec
Shape
- Body
- split, 2 halves
- Split link
- TRRS or USB-C cable
- Splay
- yes
- Stagger
- column-staggered
- Key spacing
- MX spacing · 19.05 × 19.05 mm
Switches
- Switch footprint
- Choc v1, MX
- Hotswap
- Kailh socket, Gateron socket, or solder the switches in
Electronics
- Controller
- Seeed XIAO socket
- Connectivity
- Wireless with a Seeed XIAO nRF52840 (XIAO BLE) — needs a ZMK config
- USB port
- USB-C, on the dev board
- Firmware
- QMK (pica40/rev1), QMK (pica40/rev2)
- Firmware targets
- ATmega32U4, RP2040
- Key wiring
- — not recorded —
- Room for
- encoder
- Power switch
- yes
- Exposed components
- no
Building it
- Build method
- PCB
- Soldering
- SMD, fine-pitch (USB)
- SMD required
- yes
Licensing
- Hardware
- GPL-2.0-only
- Firmware
- GPL-2.0-only
- Documentation
- GPL-2.0-only
