piantor
42 / 36 keys split
Choc v1 Raspberry Pi Pico socket QMK
What fits this board → Compare with another board →
Record 100% complete · 17 of 17 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware license
- ✓ Firmware license
- ✓ Documentation license
- ✓ Key pitch
- ✓ Soldering
- ✓ Firmware targets
- ✓ Summary
- ✓ Key wiring
- ✓ Hotswap
- ✓ Splay
- ✓ Stagger

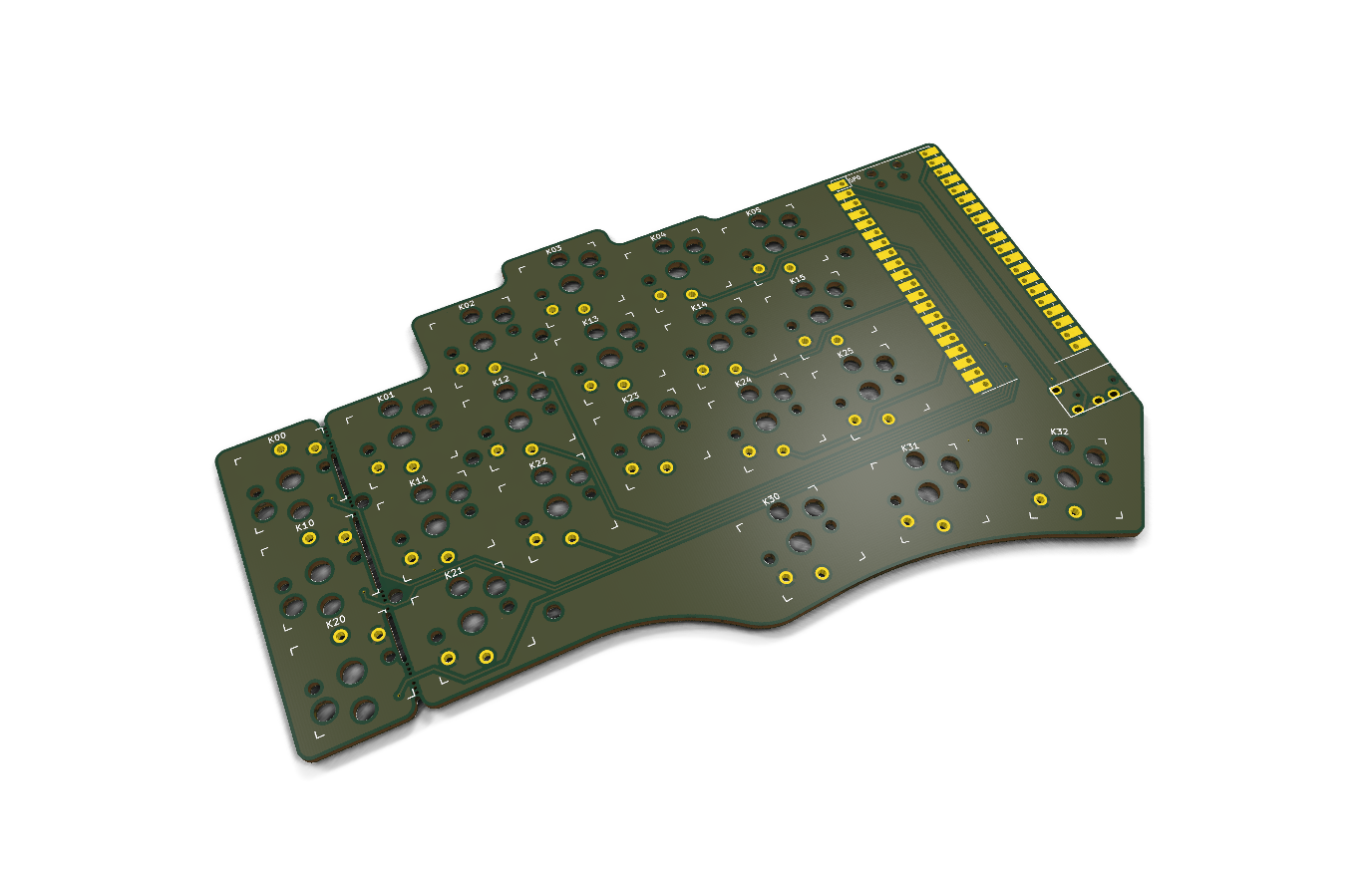

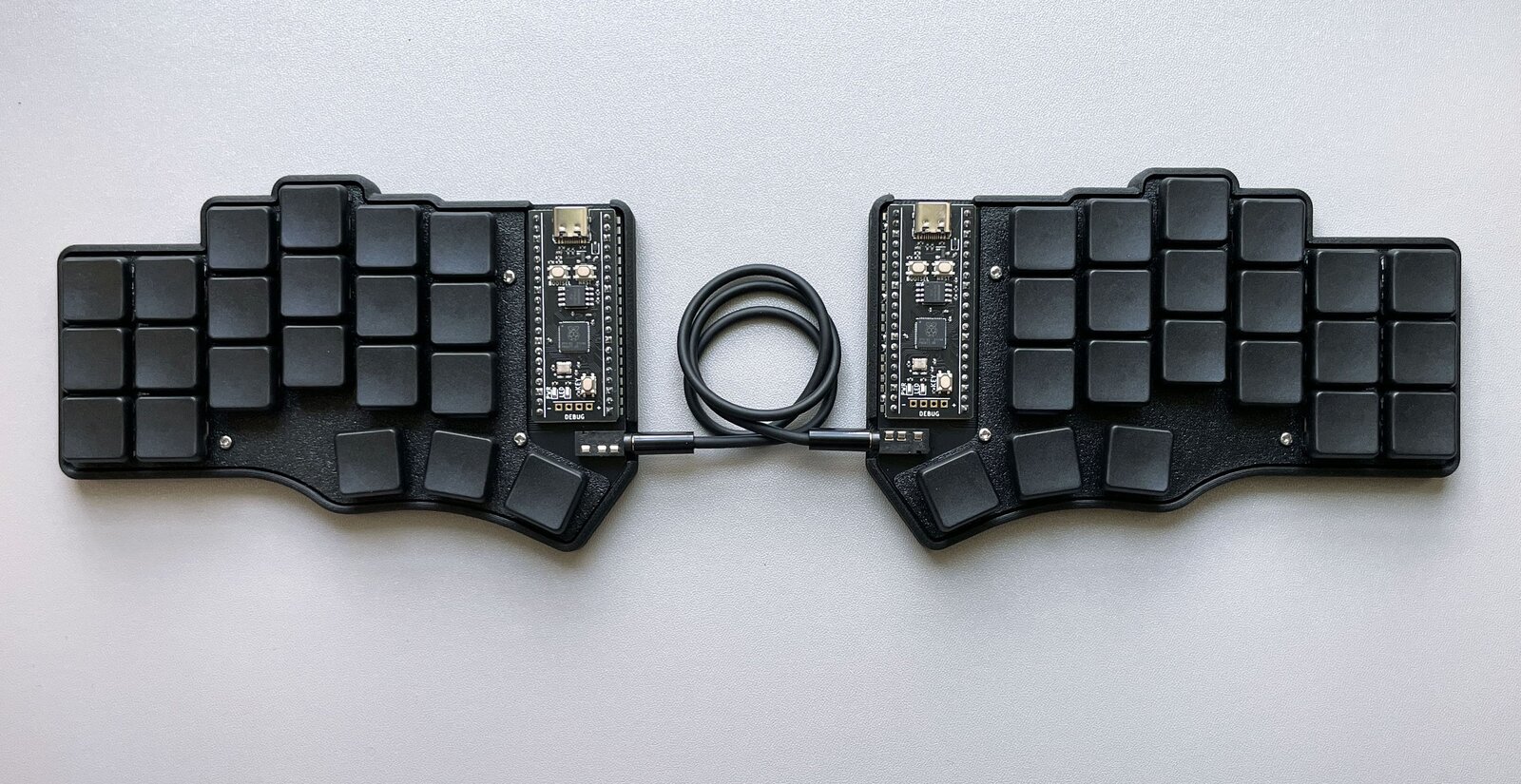

The Piantor Keyboard is a 42-key or 36-key wired, diodeless, non-flippable, low profile choc v1 (hybrid hotswap and non-hotswap/soldered-in), aggressive column staggered, programmable ergonomic mechnical split keyboard powered by Rasyberry Pi Pico or other compatible RP2040 boards.
Layouts
- 42 keys
- 36 keys
Spec
Shape
- Body
- split, 2 halves
- Split link
- TRRS cable
- Splay
- no
- Stagger
- column-staggered
- Key spacing
- Choc spacing · 18 × 17 mm
Switches
- Switch footprint
- Choc v1
- Hotswap
- Kailh socket, or solder the switches in
Electronics
- Controller
- Raspberry Pi Pico socket
- Connectivity
- No wireless controller we know of fits this socket
- USB port
- micro-USB, on the dev board
- Firmware
- QMK (beekeeb/piantor)
- Firmware targets
- RP2040
- Key wiring
- 21 direct pins per half
- Room for
- — not recorded —
- Power switch
- no
- Exposed components
- — not recorded —
Building it
- Build method
- PCB
- Soldering
- SMD passives (passive)
- SMD required
- yes
Licensing
- Hardware
- GPL-3.0-or-later
- Firmware
- GPL-3.0-or-later
- Documentation
- GPL-3.0-or-later
