Pando58
58 keys split
MX RP2040-Zero socket QMK
What fits this board → Compare with another board →
Record 94% complete · 16 of 17 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware licence
- ✓ Firmware licence
- ✓ Documentation licence
- ✓ Key pitch
- ✓ Soldering
- ✓ Firmware targets
- ✓ Summary
- ✓ Key wiring
- ✗ Switch sockets
- ✓ Splay
- ✓ Stagger

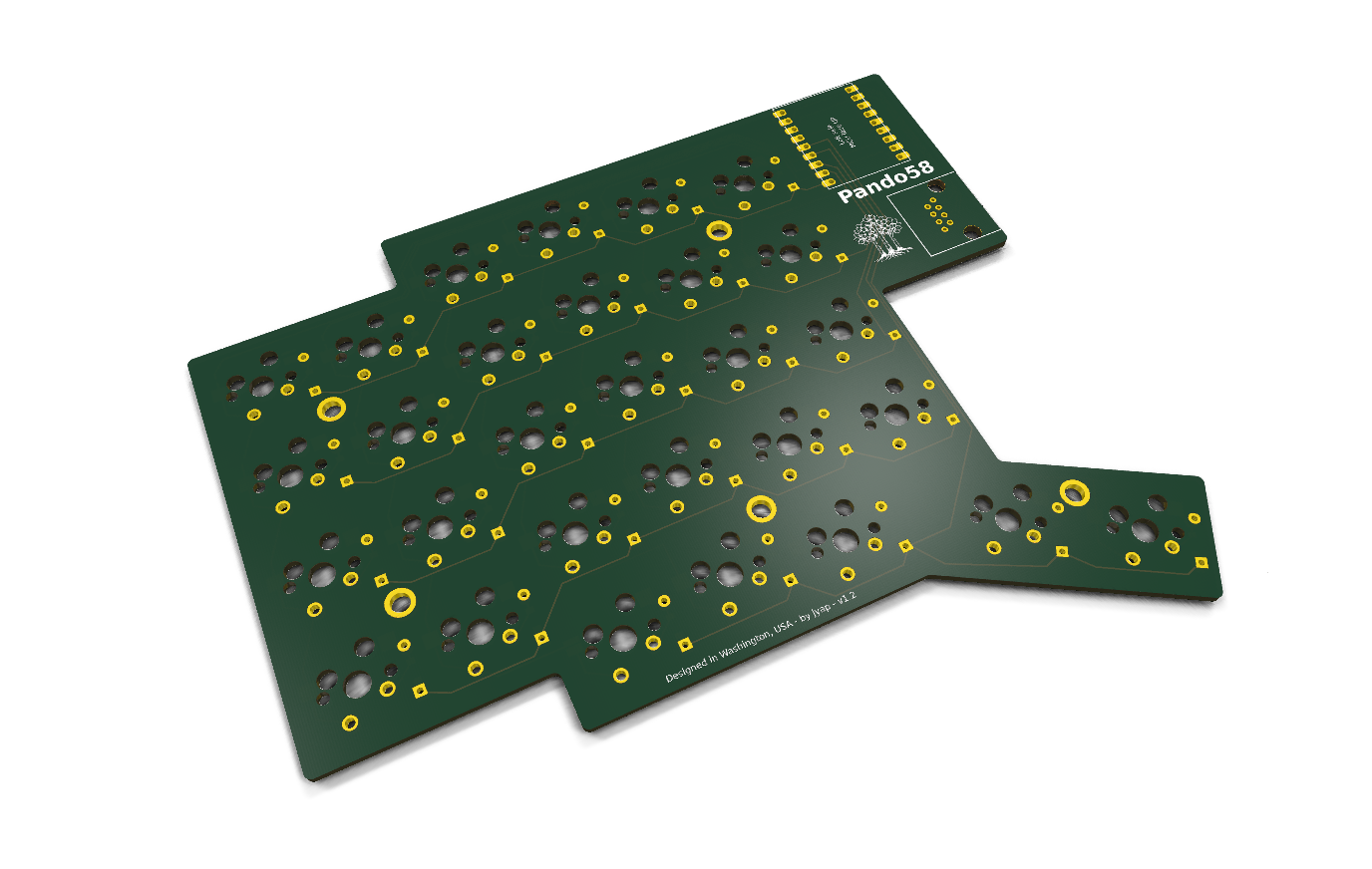

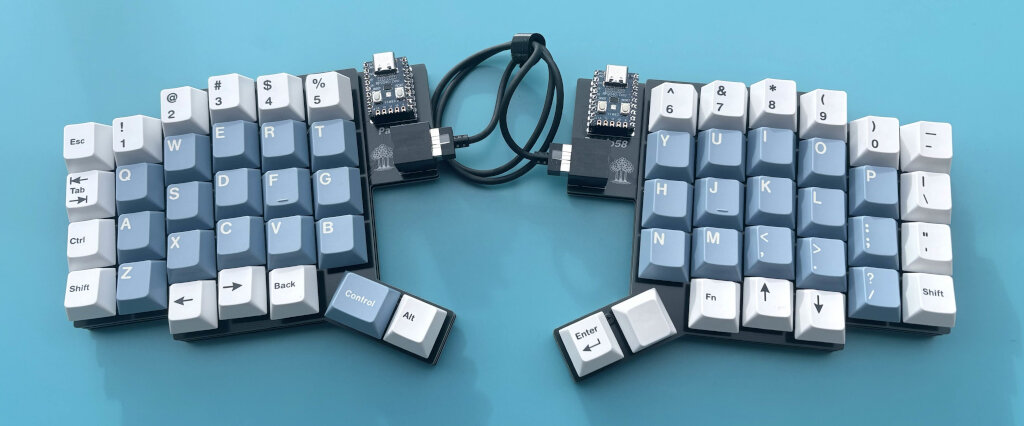

Pando58 is a modern RP2040 Zero-based 58-key column staggered split keyboard.
Layouts
- 58 keys
Spec
Shape
- Body
- split, 2 halves
- Split link
- Ethernet cable
- Splay
- no
- Stagger
- column-staggered
- Key spacing
- 19.05 mm · MX-stem keycaps (OEM, SA, XDA, Cherry)
Switches
- Switch footprint
- MX
- Switch sockets
- — not recorded —
Electronics
- Controller
- RP2040-Zero socket
- Connectivity
- No wireless controller we know of fits this socket
- USB port
- USB-C, on the dev board
- Firmware
- QMK (jyap808/pando58)
- Firmware targets
- RP2040
- Key wiring
- 5×6 matrix, column-to-row diodes
- Room for
- — not recorded —
Building it
- Build method
- PCB
- Soldering
- through-hole (connector)
- SMD required
- no
Licensing
- Hardware
- CC BY-SA 4.0
- Firmware
- CC BY-SA 4.0
- Documentation
- CC BY-SA 4.0
