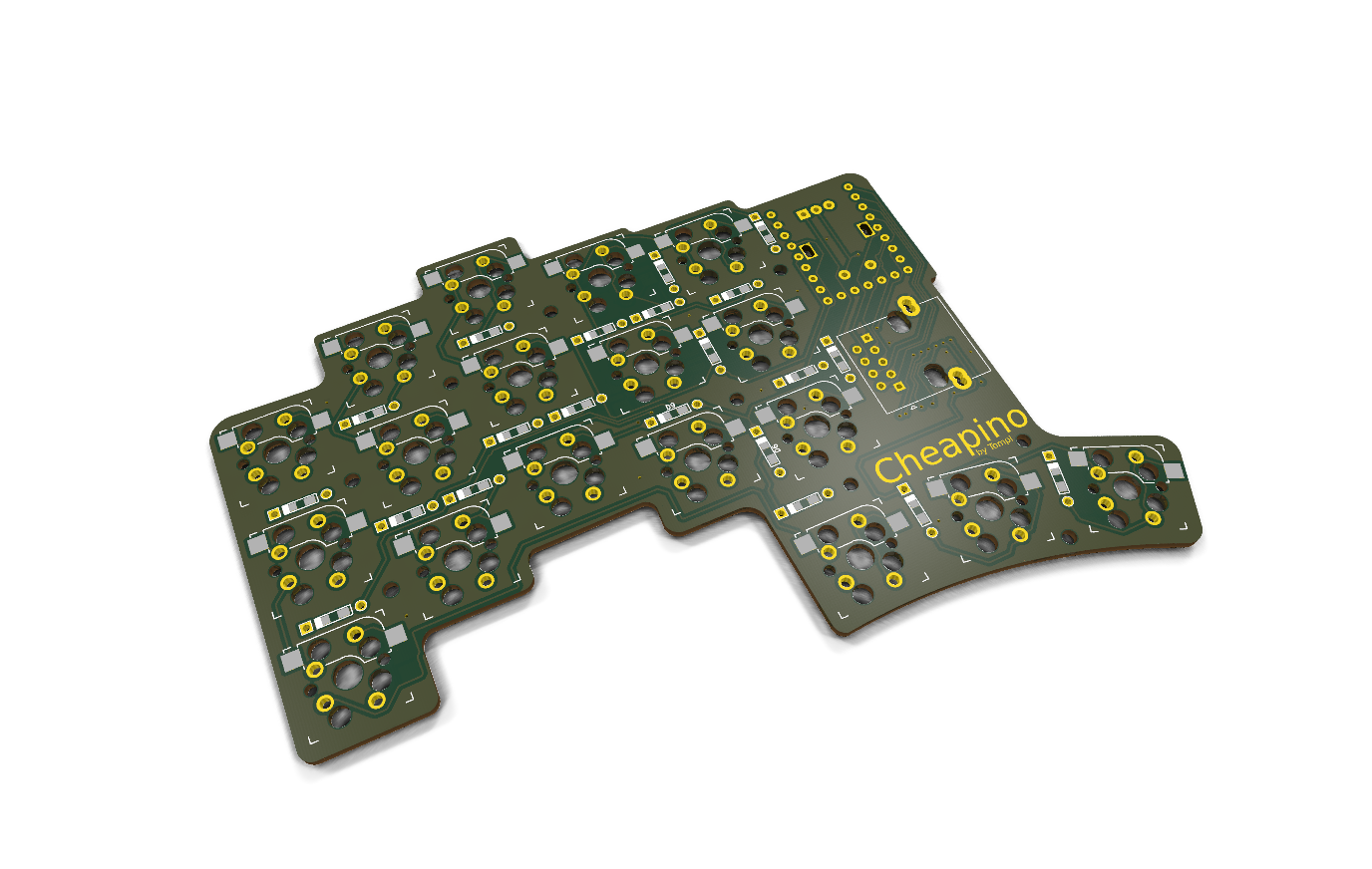

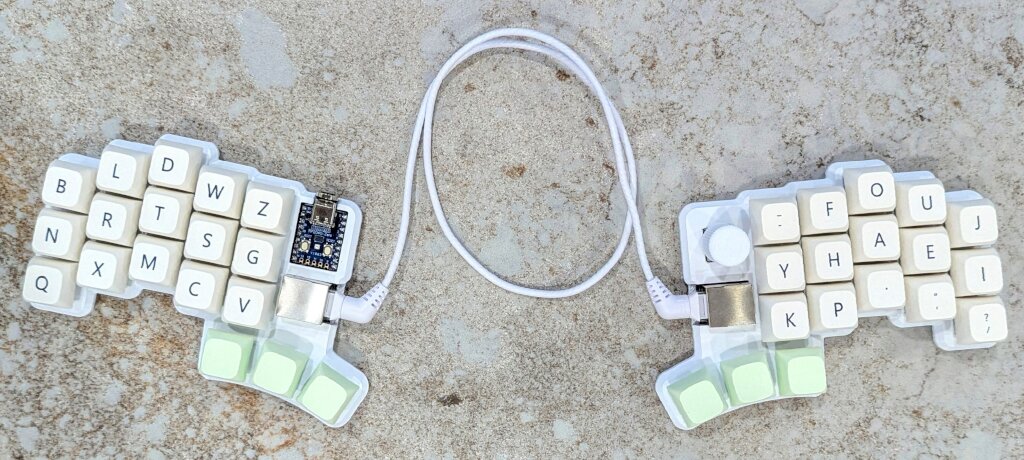

Cheapino
36 keys split
MX RP2040-Zero socket QMK
What fits this board → Compare with another board →
Record 100% complete · 17 of 17 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware license
- ✓ Firmware license
- ✓ Documentation license
- ✓ Key pitch
- ✓ Soldering
- ✓ Firmware targets
- ✓ Summary
- ✓ Key wiring
- ✓ Hotswap
- ✓ Splay
- ✓ Stagger
Probably one of the cheapest split keyboards you can build.
Layouts
- 36 keys
Spec
Shape
- Body
- split, 2 halves
- Split link
- Ethernet cable
- Splay
- no
- Stagger
- column-staggered
- Key spacing
- MX spacing · 19.05 × 19.05 mm
Switches
- Switch footprint
- MX
- Hotswap
- Kailh socket, Gateron socket, Mill-Max, or solder the switches in
Electronics
- Controller
- RP2040-Zero socket
- Connectivity
- No wireless controller we know of fits this socket
- USB port
- USB-C, on the dev board
- Firmware
- QMK (cheapino)
- Firmware targets
- RP2040
- Key wiring
- 8×12 matrix, row-to-column diodes
- Room for
- encoder
- Power switch
- no
- Exposed components
- no
Building it
- Build method
- PCB
- Soldering
- through-hole (connector, rotary encoder)
- SMD required
- no
Licensing
- Hardware
- CC BY 4.0
- Firmware
- CC BY 4.0
- Documentation
- CC BY 4.0
