Koca58
58 keys split
MX soldered STM32F103 QMK
Koca58.kicad_pcb.

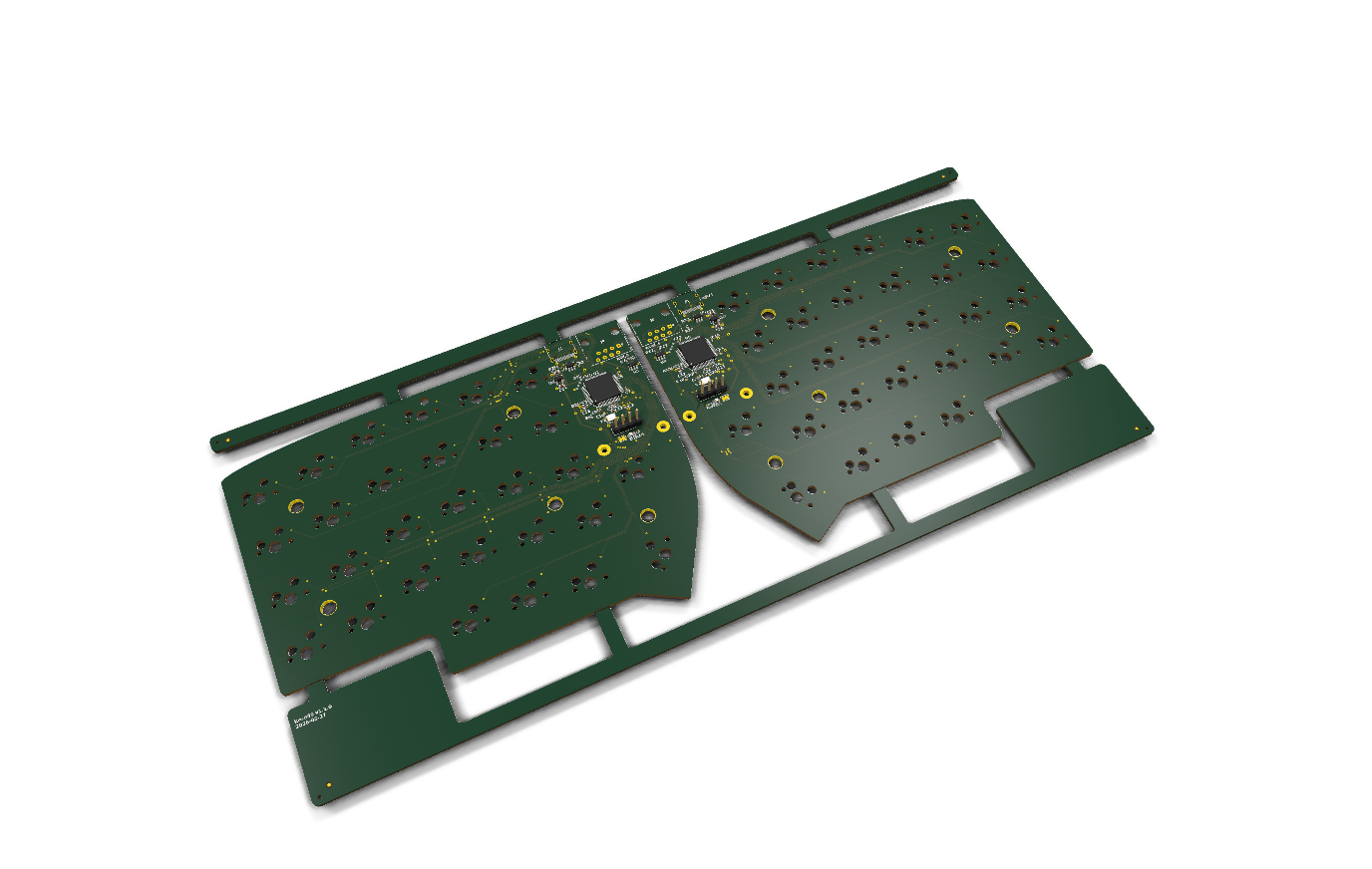

No switches or keycaps: this is the board as manufactured.
What fits this board → Compare with another board →
Record 100% complete · 18 of 18 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware license
- ✓ Firmware license
- ✓ Documentation license
- ✓ Key pitch
- ✓ Soldering
- ✓ Soldered MCU
- ✓ Firmware targets
- ✓ Summary
- ✓ Key wiring
- ✓ Hotswap
- ✓ Splay
- ✓ Stagger
A Lily58 variant featuring SMT components, RJ45 interconnect and STM32F103 MCU.
Layouts
- 58 keys
Spec
Shape
- Body
- split, 2 halves
- Split link
- Ethernet cable
- Splay
- no
- Stagger
- column-staggered
- Key spacing
- MX spacing · 19.05 × 19.05 mm
Switches
- Switch footprint
- MX
- Hotswap
- Kailh socket, Gateron socket
Electronics
- Controller
- soldered STM32F103
- Connectivity
- Wired — the soldered STM32F103 has no radio
- USB port
- USB-C
- Firmware
- QMK (koca58)
- Firmware targets
- STM32F103
- Key wiring
- 29 direct pins per half
- Room for
- — not recorded —
- Power switch
- no
- Exposed components
- — not recorded —
Building it
- Build method
- PCB
- Soldering
- SMD, fine-pitch (USB, passive, IC)
- SMD required
- yes
Licensing
- Hardware
- MIT
- Firmware
- MIT
- Documentation
- MIT
