Keyboar layout

by ncwhale · ★ 5 · checked today ·

84 / 42 keys split

MX Pro Micro socket QMK

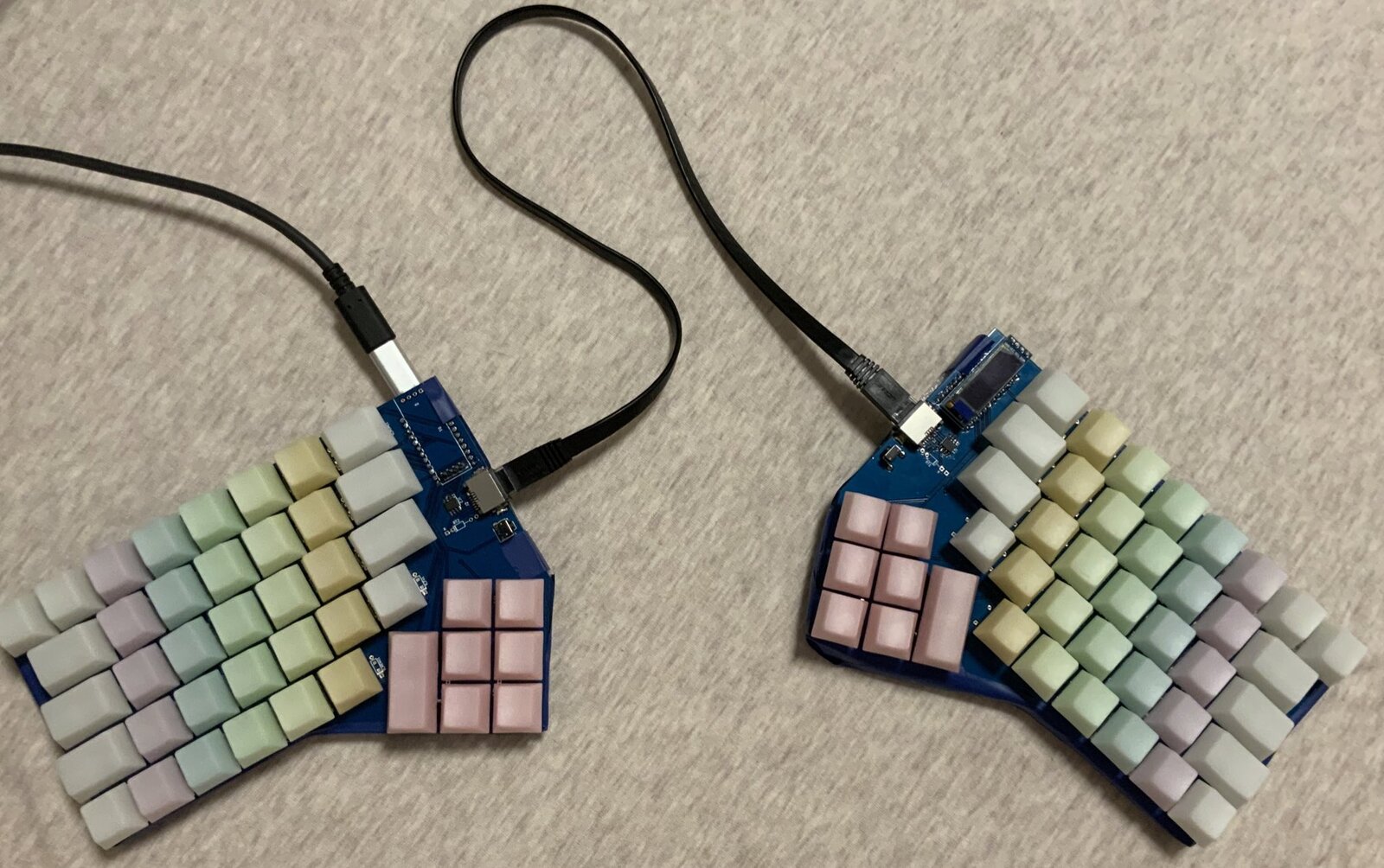

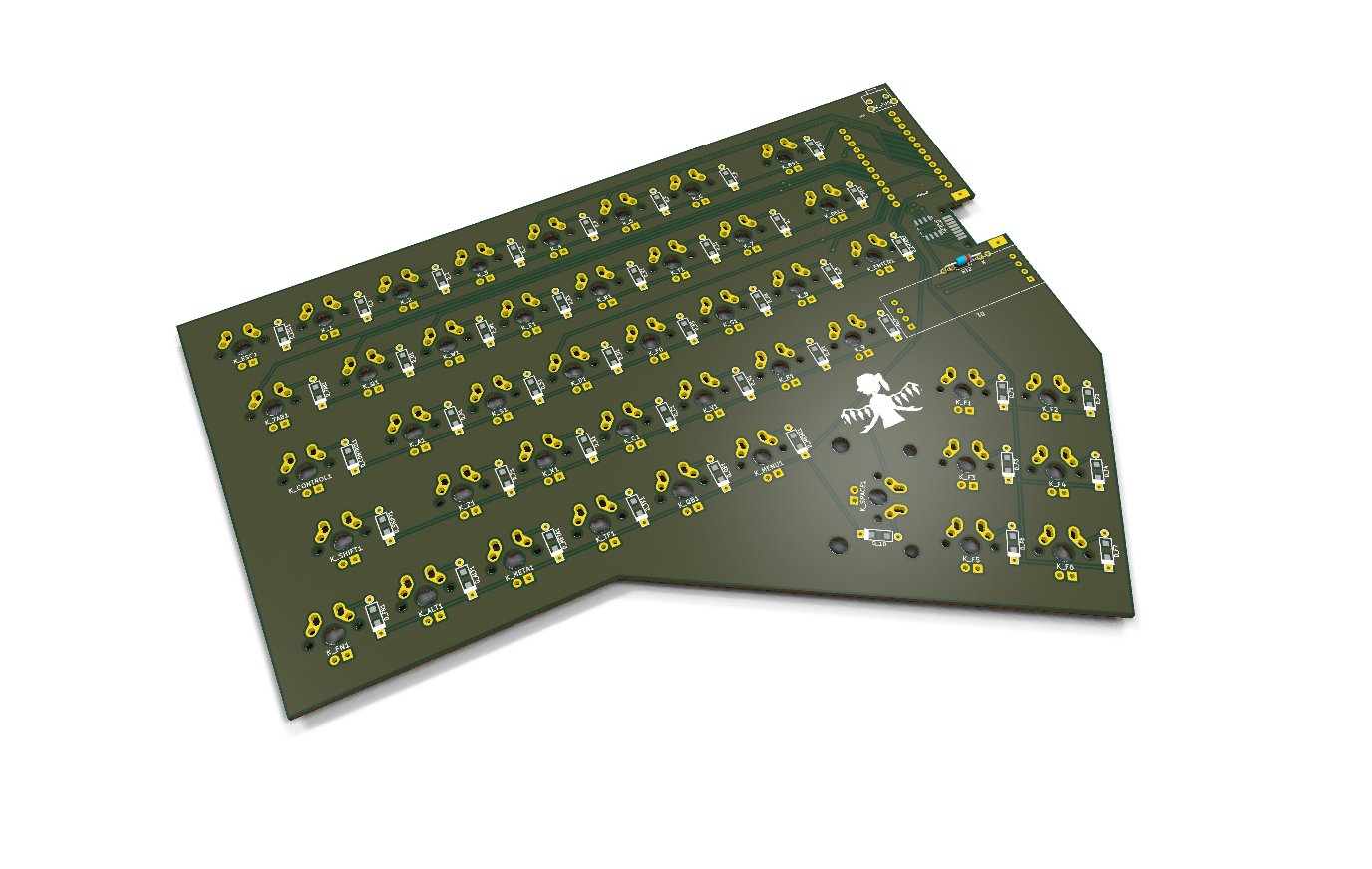

Photo of an assembled Keyboar layout — An assembled Keyboar layout, from the project's own README.

What fits this board → Compare with another board →

Record 82% complete · 14 of 17 fields

✓ Layout
✓ Switch footprint
✓ Build method
✓ Controller
✓ Body
✓ Firmware
✓ Hardware license
✓ Firmware license
✓ Documentation license
✓ Key pitch
✓ Soldering
✓ Firmware targets
✗ Summary
✓ Key wiring
✓ Hotswap
✗ Splay
✗ Stagger

No summary recorded.

Layouts

84 keys
42 keys

Spec

Shape

Body: split, 2 halves
Split link: Ethernet cable
Splay: — not recorded —
Stagger: — not recorded —
Key spacing: MX spacing · 19.05 × 19.05 mm

Switches

Switch footprint: MX
Hotswap: Mill-Max, or solder the switches in

Electronics

Controller: Pro Micro socket
Connectivity: Wireless with a nice!nano v2 — needs a ZMK config
USB port: USB-C or micro-USB, depends on the dev board
Firmware: QMK (whale/sk/v3)
Firmware targets: ATmega32U4
Key wiring: 6×7 matrix per half, column-to-row diodes
Room for: — not recorded —
Power switch: no
Exposed components: — not recorded —

Building it

Build method: PCB
Soldering: through-hole (diode, connector)
SMD required: no

Licensing

Hardware: MIT
Firmware: MIT
Documentation: MIT

Sources

https://github.com/ncwhale/keyboard_design
