jiran hotswap
from the Jiran family
56 keys split
MX Pro Micro socket ZMK
jiran-hotswap.kicad_pcb.

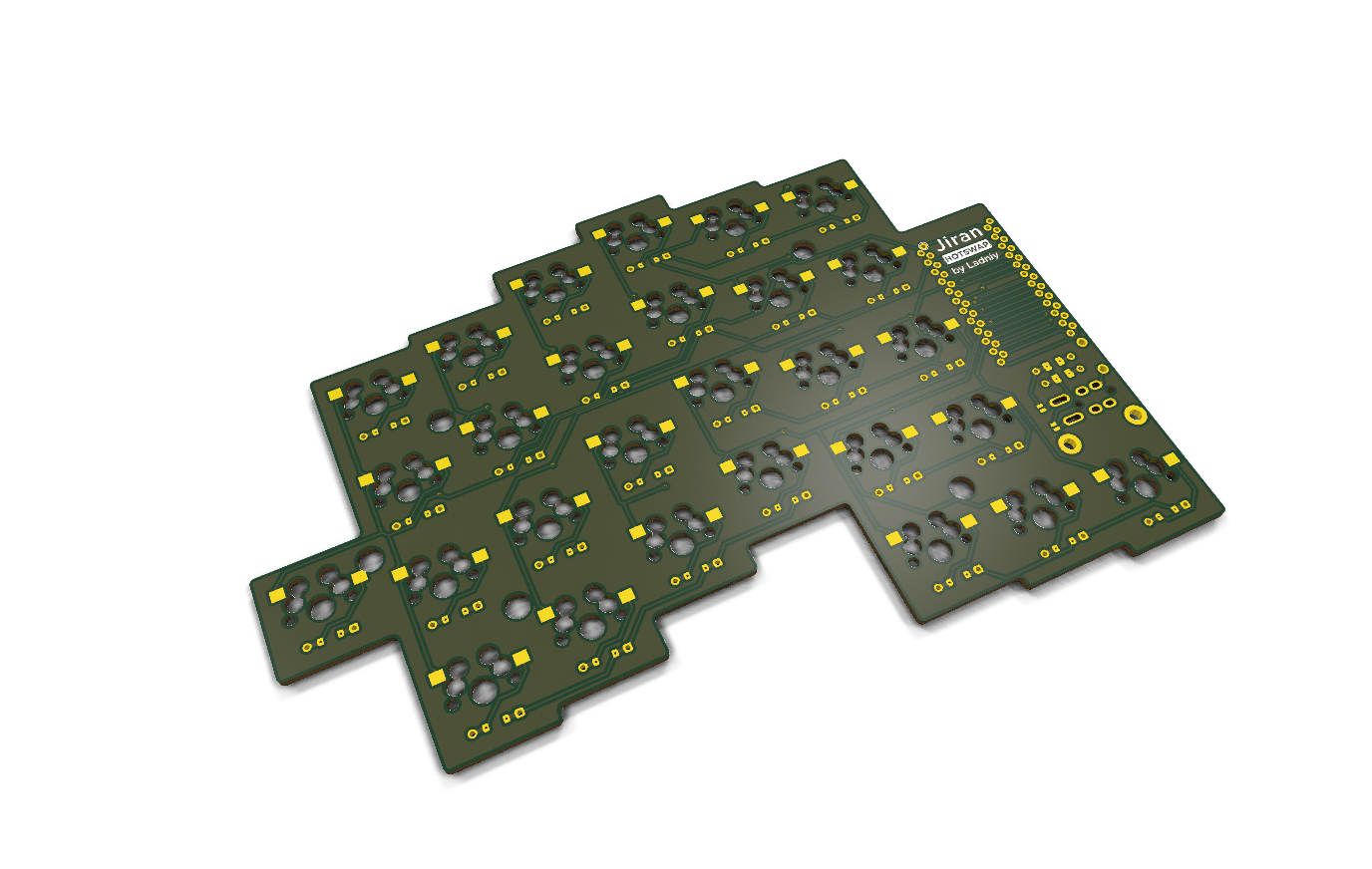

No switches or keycaps: this is the board as manufactured.
What fits this board → Compare with another board →
Record 94% complete · 15 of 16 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware license
- ✓ Firmware license
- ✓ Documentation license
- ✓ Key pitch
- ✓ Soldering
- ✗ Summary
- ✓ Key wiring
- ✓ Hotswap
- ✓ Splay
- ✓ Stagger
No summary recorded.
Layouts
- 56 keys — Full (with pinky/numbers)
Spec
Shape
- Body
- split, 2 halves
- Split link
- TRRS cable
- Splay
- no
- Stagger
- column-staggered
- Key spacing
- MX spacing · 19.05 × 19.05 mm
Switches
- Switch footprint
- MX
- Hotswap
- Kailh socket, Gateron socket
Electronics
- Controller
- Pro Micro socket
- Connectivity
- Wireless with a nice!nano v2, or 6 other controllers
- USB port
- USB-C or micro-USB, depends on the dev board
- Firmware
- ZMK (jiran)
- Firmware targets
- — not recorded —
- Key wiring
- 5×6 matrix per half, column-to-row diodes
- Room for
- — not recorded —
- Power switch
- no
- Exposed components
- no
Building it
- Build method
- PCB
- Soldering
- SMD, hand-solderable (other)
- SMD required
- yes
Licensing
- Hardware
- CC-BY-NC-SA-4.0
- Firmware
- CC-BY-NC-SA-4.0
- Documentation
- CC-BY-NC-SA-4.0
