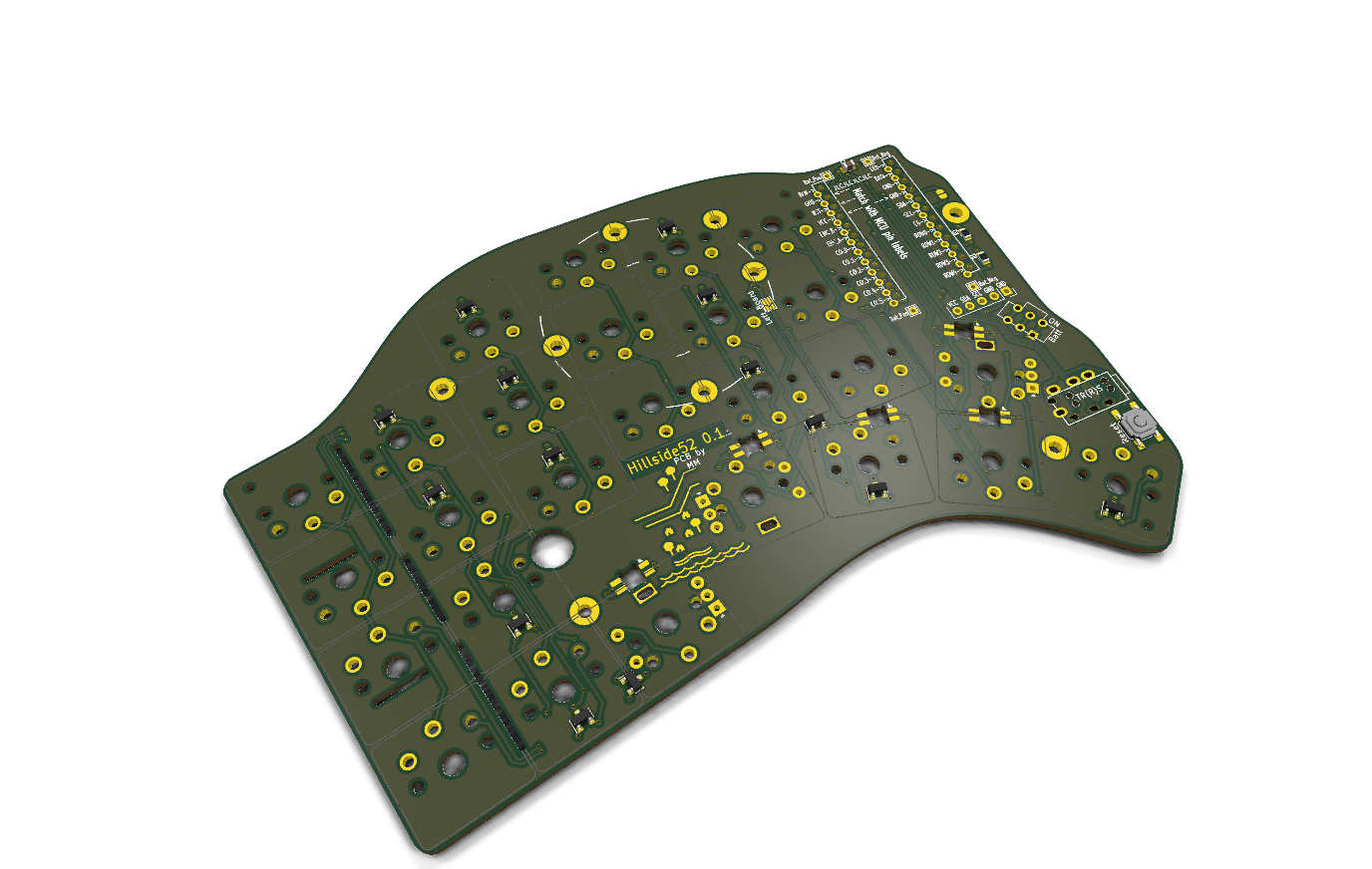

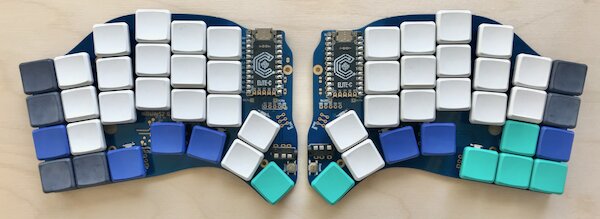

Hillside 52
52 / 44 keys split
Choc v1 Pro Micro socket QMK
What fits this board → Compare with another board →
Record 94% complete · 16 of 17 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware licence
- ✓ Firmware licence
- ✓ Documentation licence
- ✓ Key pitch
- ✓ Soldering
- ✓ Firmware targets
- ✗ Summary
- ✓ Key wiring
- ✓ Switch sockets
- ✓ Splay
- ✓ Stagger
No summary recorded.
Layouts
- 52 keys
- 44 keys — Trimmed
Spec
Shape
- Body
- split, 2 halves
- Split link
- TRRS cable
- Splay
- yes
- Stagger
- column-staggered
- Key spacing
- 18 × 17 mm · reduced keycaps only (MBK and similar)
Switches
- Switch footprint
- Choc v1
- Switch sockets
- hotswap
Electronics
- Controller
- Pro Micro socket
- Connectivity
- Wireless with a nice!nano v2 — needs a ZMK config
- USB port
- USB-C or micro-USB, depends on the dev board
- Firmware
- QMK (hillside/52/0_1)
- Firmware targets
- ATmega32U4
- Key wiring
- 5×6 matrix, column-to-row diodes
- Room for
- encoder haptic
Building it
- Build method
- PCB
- Soldering
- SMD, hand-solderable (LED, IC)
- SMD required
- yes
Licensing
- Hardware
- MIT
- Firmware
- MIT
- Documentation
- MIT
