ergoslab
52 keys split
Choc v1 / MX Pro Micro socket QMK
What fits this board → Compare with another board →
Record 76% complete · 13 of 17 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware license
- ✓ Firmware license
- ✓ Documentation license
- ✗ Key pitch
- ✓ Soldering
- ✓ Firmware targets
- ✓ Summary
- ✓ Key wiring
- ✗ Hotswap
- ✗ Splay
- ✗ Stagger

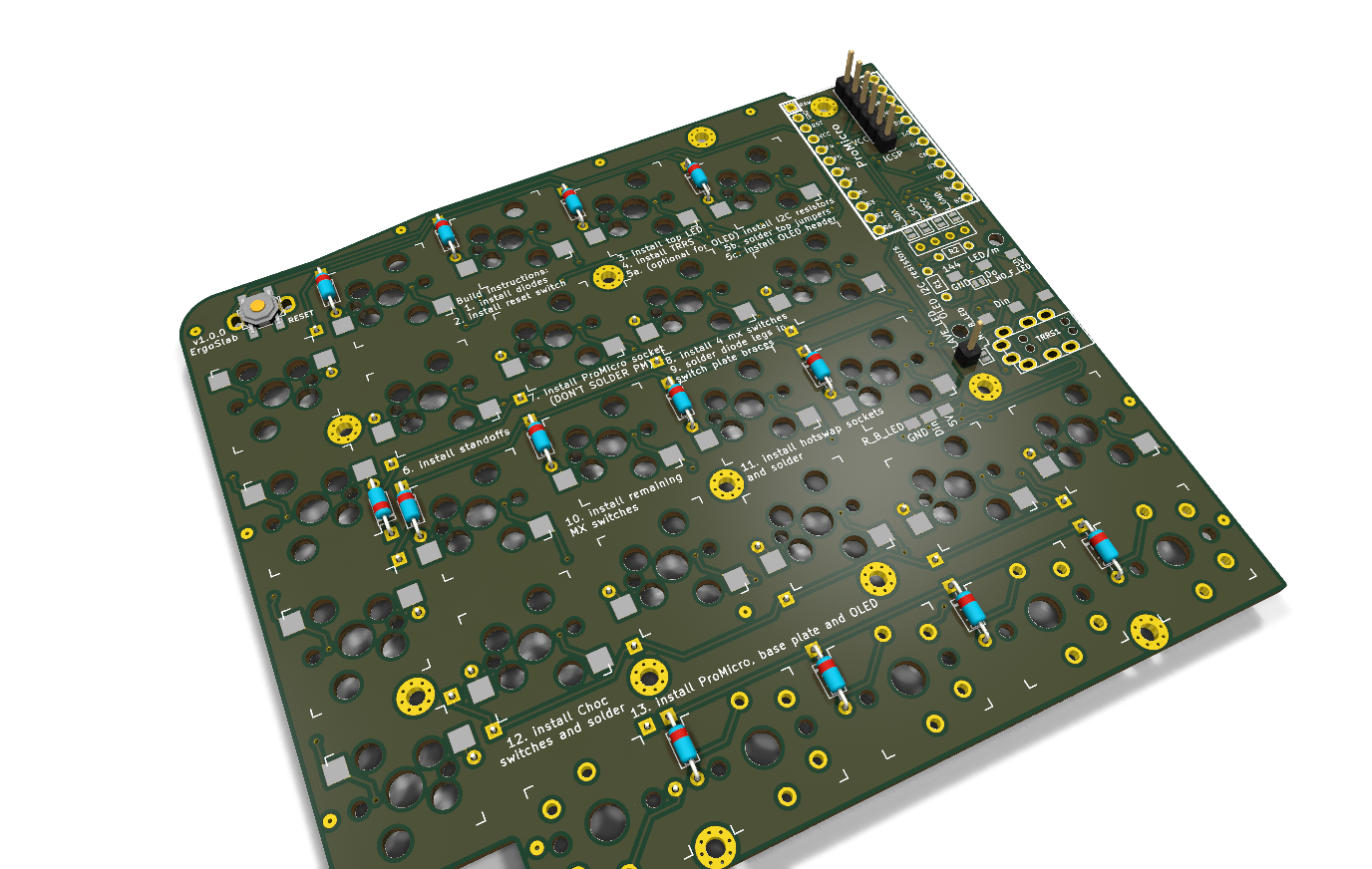

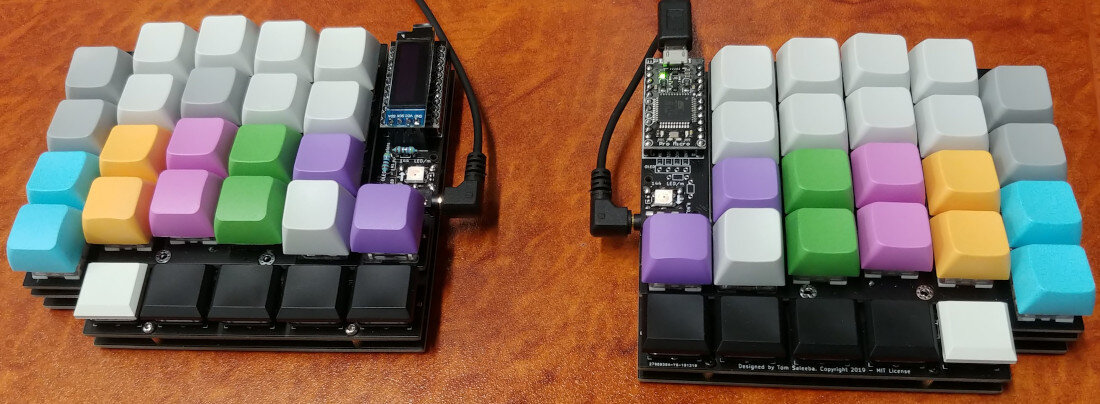

a columnar stagged keyboard that uses a combination of Cherry MX (or compatible) and Kailh choc switches to pack in a heap of thumb keys
Layouts
- 52 keys
Spec
Shape
- Body
- split, 2 halves
- Split link
- TRRS cable
- Splay
- — not recorded —
- Stagger
- — not recorded —
- Key spacing
- — not recorded —
Switches
- Switch footprint
- Choc v1, MX
- Hotswap
- — not recorded —
Electronics
- Controller
- Pro Micro socket
- Connectivity
- Wireless with a nice!nano v2 — needs a ZMK config
- USB port
- USB-C or micro-USB, depends on the dev board
- Firmware
- QMK (ergoslab/rev1)
- Firmware targets
- ATmega32U4
- Key wiring
- 5×6 matrix per half, column-to-row diodes
- Room for
- display
- Power switch
- no
- Exposed components
- — not recorded —
Building it
- Build method
- PCB
- Soldering
- SMD, hand-solderable (LED)
- SMD required
- yes
Licensing
- Hardware
- MIT
- Firmware
- MIT
- Documentation
- MIT
