Ergoinu

by hsgw · ★ 26 · checked today ·

64 keys split

MX Pro Micro socket QMK

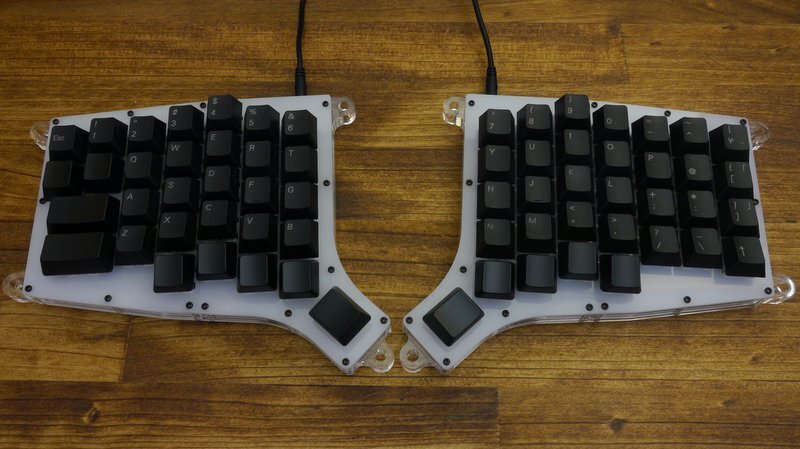

Photo of an assembled Ergoinu — An assembled Ergoinu, from the project's own README.

What fits this board → Compare with another board →

Record 76% complete · 13 of 17 fields

✓ Layout
✓ Switch footprint
✓ Build method
✓ Controller
✓ Body
✓ Firmware
✓ Hardware license
✓ Firmware license
✓ Documentation license
✗ Key pitch
✓ Soldering
✓ Firmware targets
✗ Summary
✓ Key wiring
✓ Hotswap
✗ Splay
✗ Stagger

No summary recorded.

Layouts

64 keys

Spec

Shape

Body: split, 2 halves
Split link: TRRS cable
Splay: — not recorded —
Stagger: — not recorded —
Key spacing: — not recorded —

Switches

Switch footprint: MX
Hotswap: Mill-Max, or solder the switches in

Electronics

Controller: Pro Micro socket
Connectivity: Wireless with a nice!nano v2 — needs a ZMK config
USB port: USB-C or micro-USB, depends on the dev board
Firmware: QMK (dm9records/ergoinu)
Firmware targets: ATmega32U4
Key wiring: 5×7 matrix per half, column-to-row diodes
Room for: — not recorded —
Power switch: no
Exposed components: no

Building it

Build method: PCB
Soldering: SMD, hand-solderable (LED)
SMD required: yes

Licensing

Hardware: CC BY-SA 4.0
Firmware: CC BY-SA 4.0
Documentation: CC BY-SA 4.0

Sources

https://github.com/hsgw/ergoinu
