Dilemma DIY V2
Dilemma family: Dilemma DIY V2 · Dilemma V2 · Dilemma V3 hotswap
36 / 34 keys split
Choc v1 / MX Pro Micro socket QMK

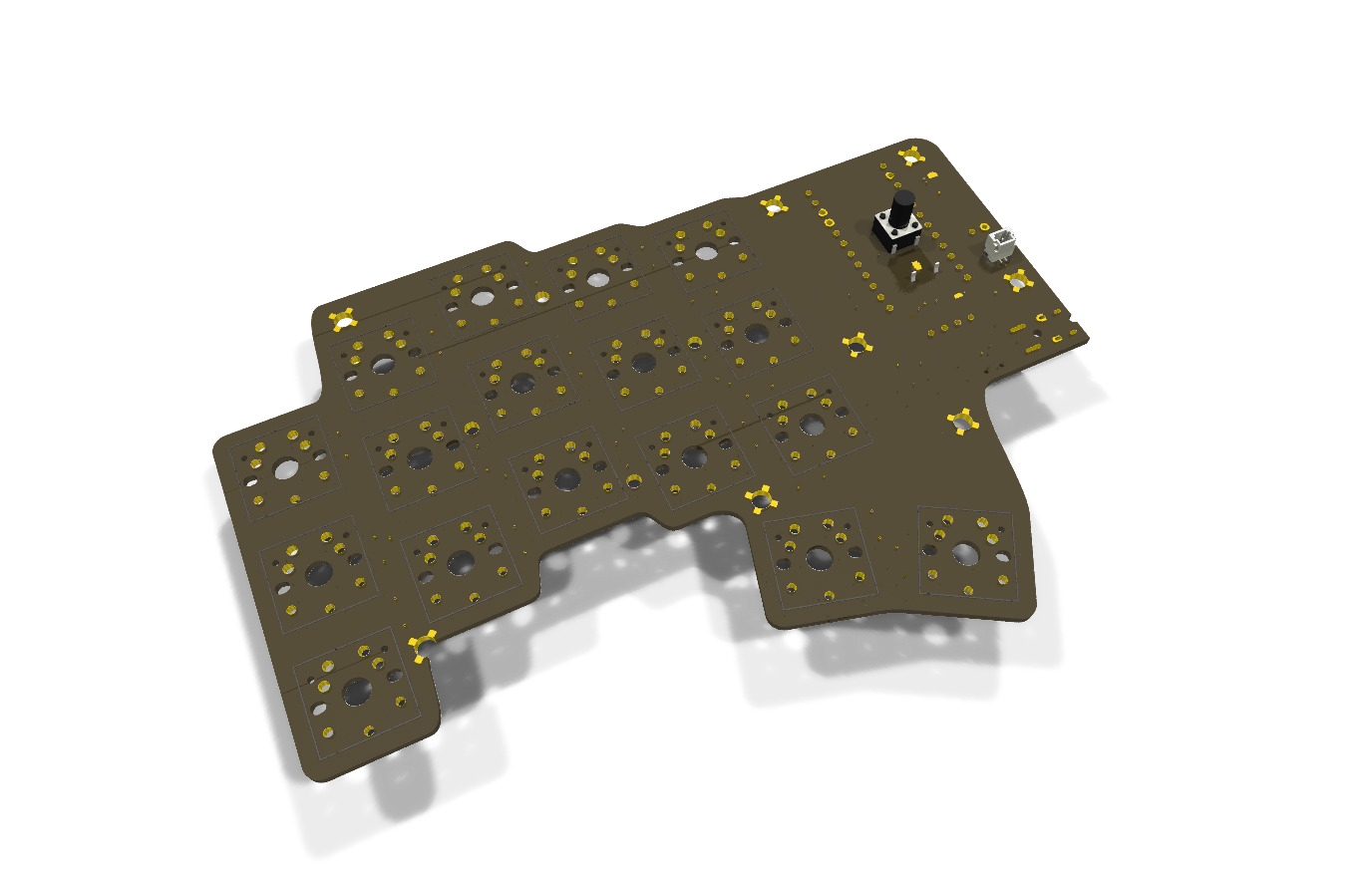

dilemma.kicad_pcb.
No switches or keycaps: this is the board as manufactured.
What fits this board → Compare with another board →
Record 88% complete · 15 of 17 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware license
- ✓ Firmware license
- ✓ Documentation license
- ✓ Key pitch
- ✓ Soldering
- ✓ Firmware targets
- ✗ Summary
- ✓ Key wiring
- ✗ Switch sockets
- ✓ Splay
- ✓ Stagger
No summary recorded.
Layouts
- 36 keys
- 34 keys
Spec
Shape
- Body
- split, 2 halves
- Split link
- TRRS cable
- Splay
- no
- Stagger
- column-staggered
- Key spacing
- 19.05 mm · MX-stem keycaps (OEM, SA, XDA, Cherry)
Switches
- Switch footprint
- Choc v1, MX
- Switch sockets
- — not recorded —
Electronics
- Controller
- Pro Micro socket
- Connectivity
- Wireless with a nice!nano v2 — needs a ZMK config
- USB port
- USB-C or micro-USB, depends on the dev board
- Firmware
- QMK (bastardkb/dilemma/3x5_2/assembled), QMK (bastardkb/dilemma/3x5_2/promicro), QMK (bastardkb/dilemma/3x5_3)
- Firmware targets
- ATmega32U4, RP2040
- Key wiring
- 4×5 matrix, row-to-column diodes
- Room for
- trackpad
Building it
- Build method
- PCB
- Soldering
- SMD passives (diode, passive)
- SMD required
- yes
Licensing
- Hardware
- CERN-OHL-S 2.0
- Firmware
- CERN-OHL-S 2.0
- Documentation
- CERN-OHL-S 2.0
