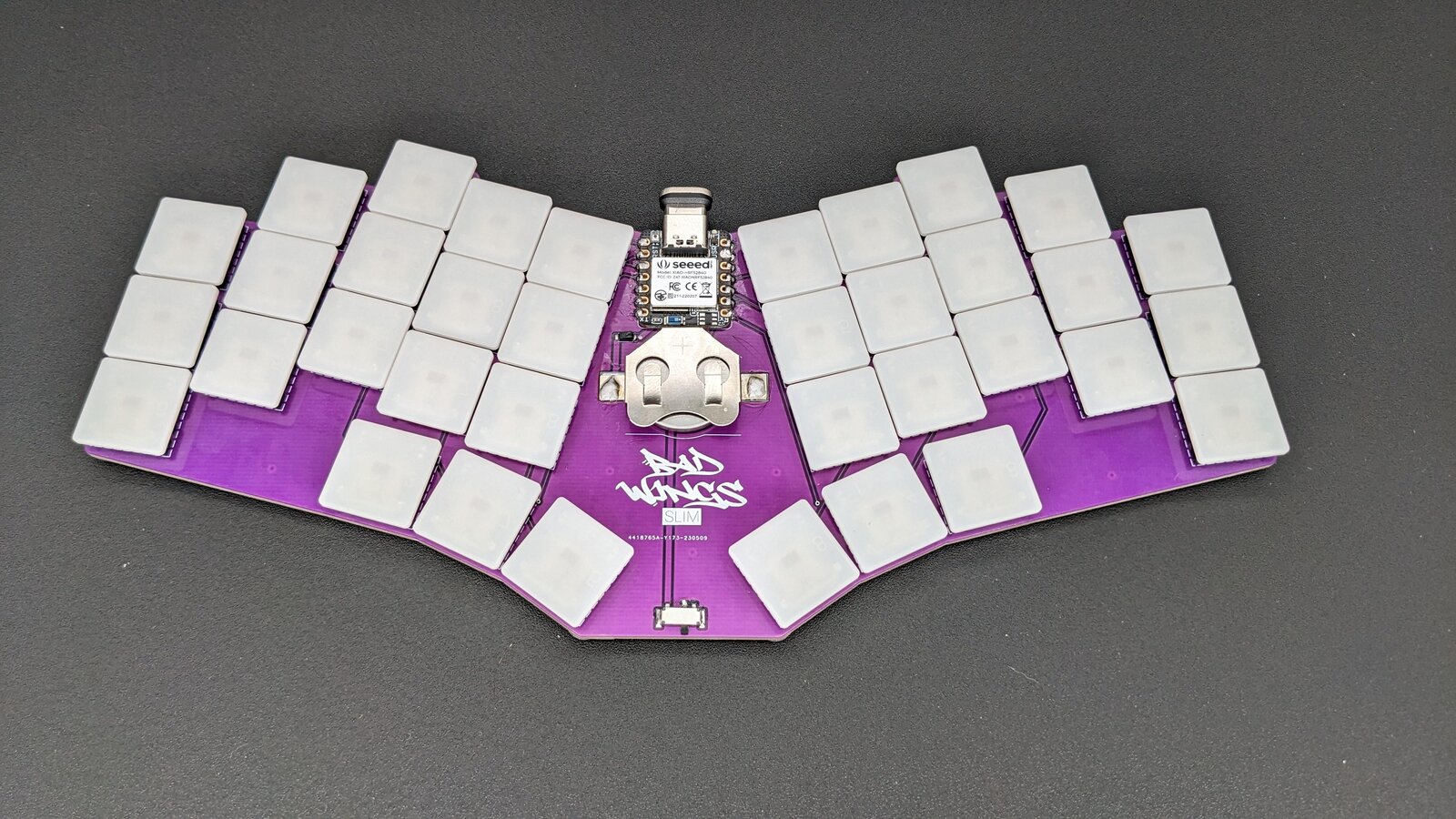

bad wings slim
from the Bad Wings family
36 keys unibody
Kailh X Seeed XIAO socket QMK
What fits this board → Compare with another board →
Record 88% complete · 15 of 17 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware license
- ✓ Firmware license
- ✓ Documentation license
- ✓ Key pitch
- ✓ Soldering
- ✗ Firmware targets
- ✗ Summary
- ✓ Key wiring
- ✓ Hotswap
- ✓ Splay
- ✓ Stagger
No summary recorded.
Layouts
- 36 keys
Spec
Shape
- Body
- unibody
- Splay
- yes
- Stagger
- column-staggered
- Key spacing
- Choc spacing · 18 × 17 mm
Switches
- Switch footprint
- Kailh X
- Hotswap
- No, the switches solder in
Electronics
- Controller
- Seeed XIAO socket
- Connectivity
- Wireless with a Seeed XIAO nRF52840 (XIAO BLE) — needs a ZMK config
- USB port
- USB-C, on the dev board
- Firmware
- QMK (hazel/bad_wings_v2)
- Firmware targets
- — not recorded —
- Key wiring
- 8×5 matrix, column-to-row diodes
- Room for
- trackpad
- Power switch
- yes
- Exposed components
- no
Building it
- Build method
- PCB
- Soldering
- SMD, hand-solderable (diode)
- SMD required
- yes
Licensing
- Hardware
- CC BY-SA 4.0
- Firmware
- CC BY-SA 4.0
- Documentation
- CC BY-SA 4.0
