zero
30 keys unibody
MX Raspberry Pi Pico socket QMK
What fits this board → Compare with another board →
Record 100% complete · 17 of 17 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware license
- ✓ Firmware license
- ✓ Documentation license
- ✓ Key pitch
- ✓ Soldering
- ✓ Firmware targets
- ✓ Summary
- ✓ Key wiring
- ✓ Hotswap
- ✓ Splay
- ✓ Stagger

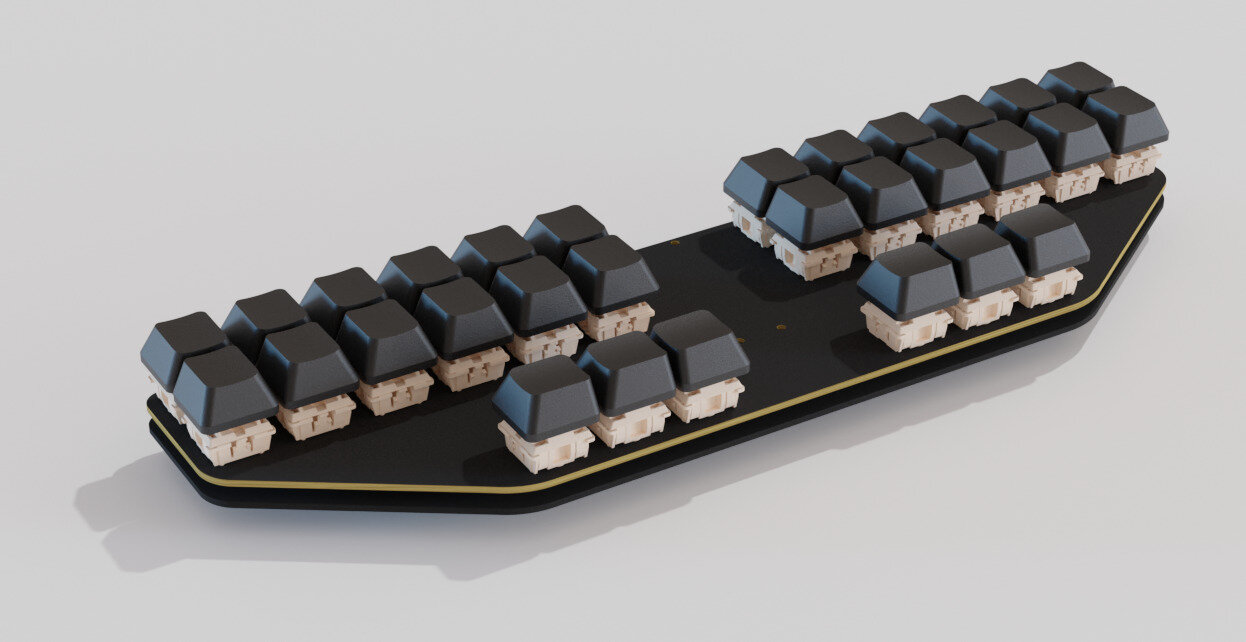

CHORD ZERO is a stenographic keyboard that can be used with Plover or any other application
Layouts
- 30 keys
Spec
Shape
- Body
- unibody
- Splay
- no
- Stagger
- ortholinear
- Key spacing
- MX spacing · 19.05 × 19.05 mm
Switches
- Switch footprint
- MX
- Hotswap
- No, the switches solder in
Electronics
- Controller
- Raspberry Pi Pico socket
- Connectivity
- No wireless controller we know of fits this socket
- USB port
- micro-USB, on the dev board
- Firmware
- QMK (chord/zero)
- Firmware targets
- RP2040
- Key wiring
- 8×6 matrix, column-to-row diodes
- Room for
- — not recorded —
- Power switch
- no
- Exposed components
- no
Building it

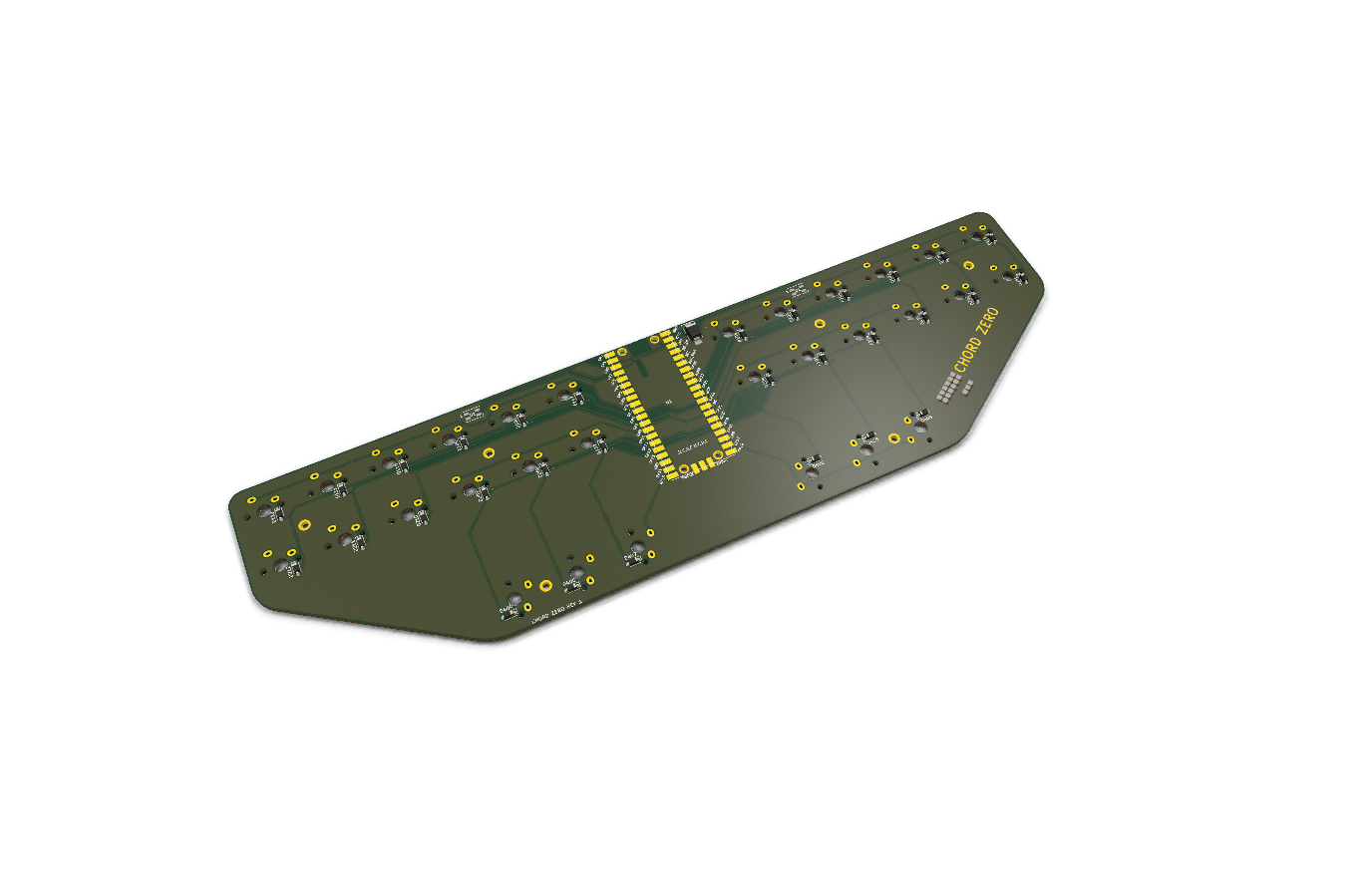

- Build method
- PCB
- Soldering
- SMD, hand-solderable (LED, diode)
- SMD required
- yes
Licensing
- Hardware
- CERN-OHL-S 2.0
- Firmware
- CERN-OHL-S 2.0
- Documentation
- CERN-OHL-S 2.0
