Treadstone32

by marksard · ★ 192 · checked today ·

32 keys unibody

MX soldered ATmega32U4 QMK

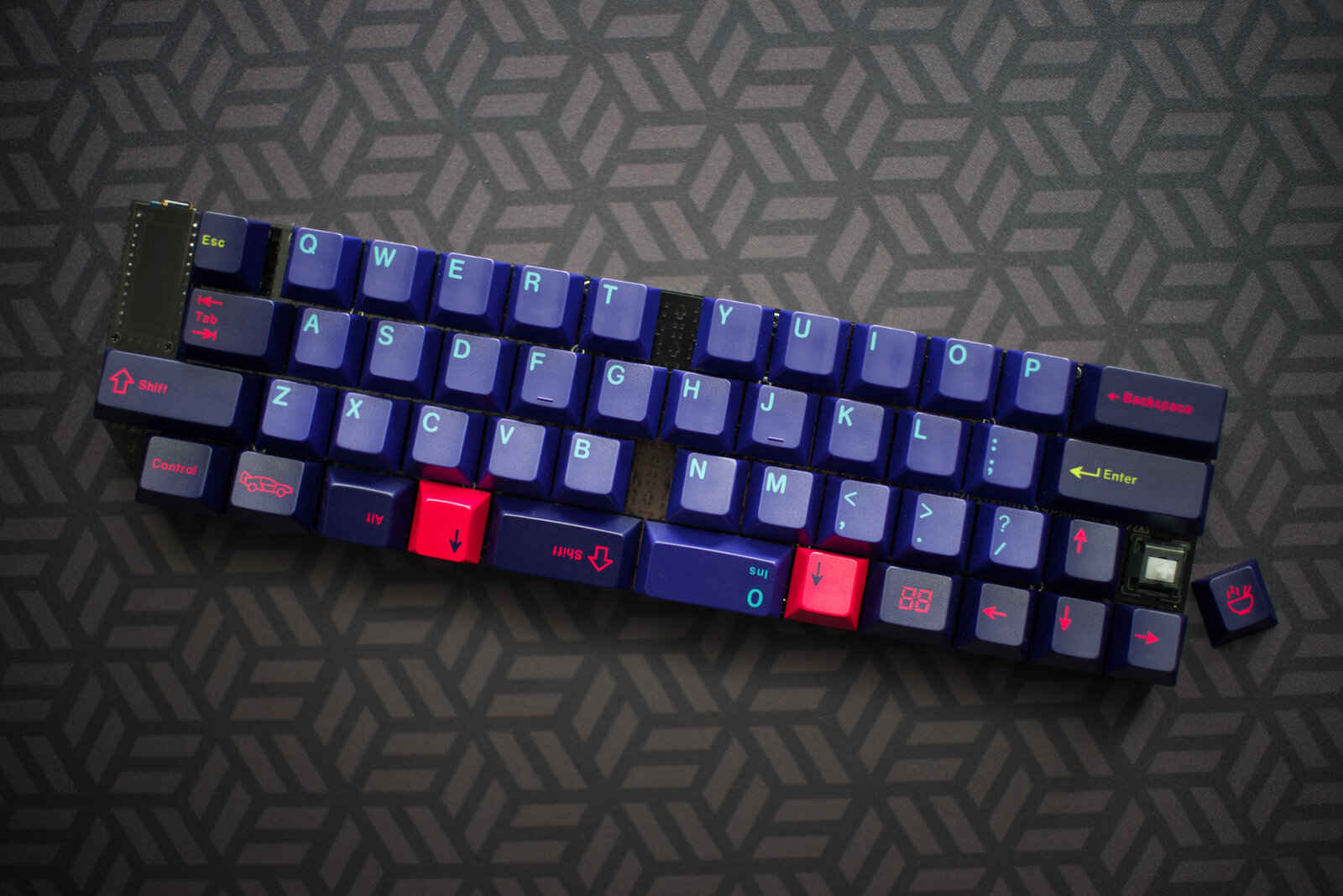

Photo of an assembled Treadstone32 — An assembled Treadstone32, from the project's own README.

What fits this board → Compare with another board →

Record 94% complete · 17 of 18 fields

✓ Layout
✓ Switch footprint
✓ Build method
✓ Controller
✓ Body
✓ Firmware
✓ Hardware license
✓ Firmware license
✓ Documentation license
✓ Key pitch
✓ Soldering
✓ Soldered MCU
✓ Firmware targets
✗ Summary
✓ Key wiring
✓ Hotswap
✓ Splay
✓ Stagger

No summary recorded.

Layouts

32 keys

Spec

Shape

Body: unibody
Splay: no
Stagger: row-staggered
Key spacing: MX spacing · 19.05 × 19.05 mm

Switches

Switch footprint: MX
Hotswap: Kailh socket, Gateron socket

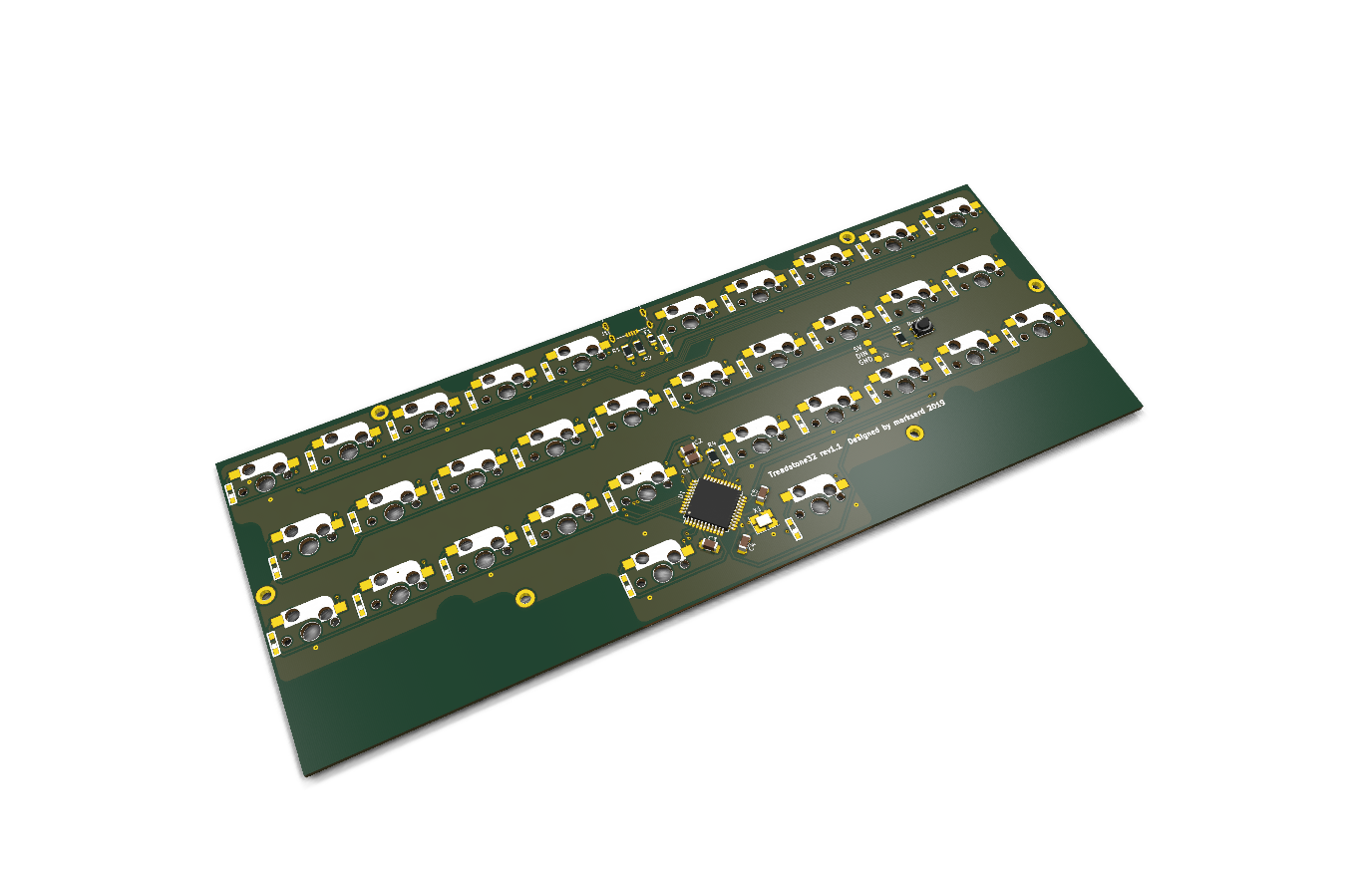

Electronics

Controller: soldered ATmega32U4
Connectivity: Wired — the soldered ATmega32U4 has no radio
USB port: — not recorded —
Firmware: QMK (marksard/treadstone32/lite), QMK (marksard/treadstone32/rev1)
Firmware targets: ATmega32U4
Key wiring: 8×5 matrix, column-to-row diodes
Room for: — not recorded —
Power switch: no
Exposed components: no

Building it

Build method: PCB
Soldering: SMD, hand-solderable (MCU, other)
SMD required: yes

Licensing

Hardware: MIT
Firmware: MIT
Documentation: MIT

Sources

https://github.com/marksard/keyboards
