touhoupad v2
10 keys unibody
MX Pro Micro socket QMK

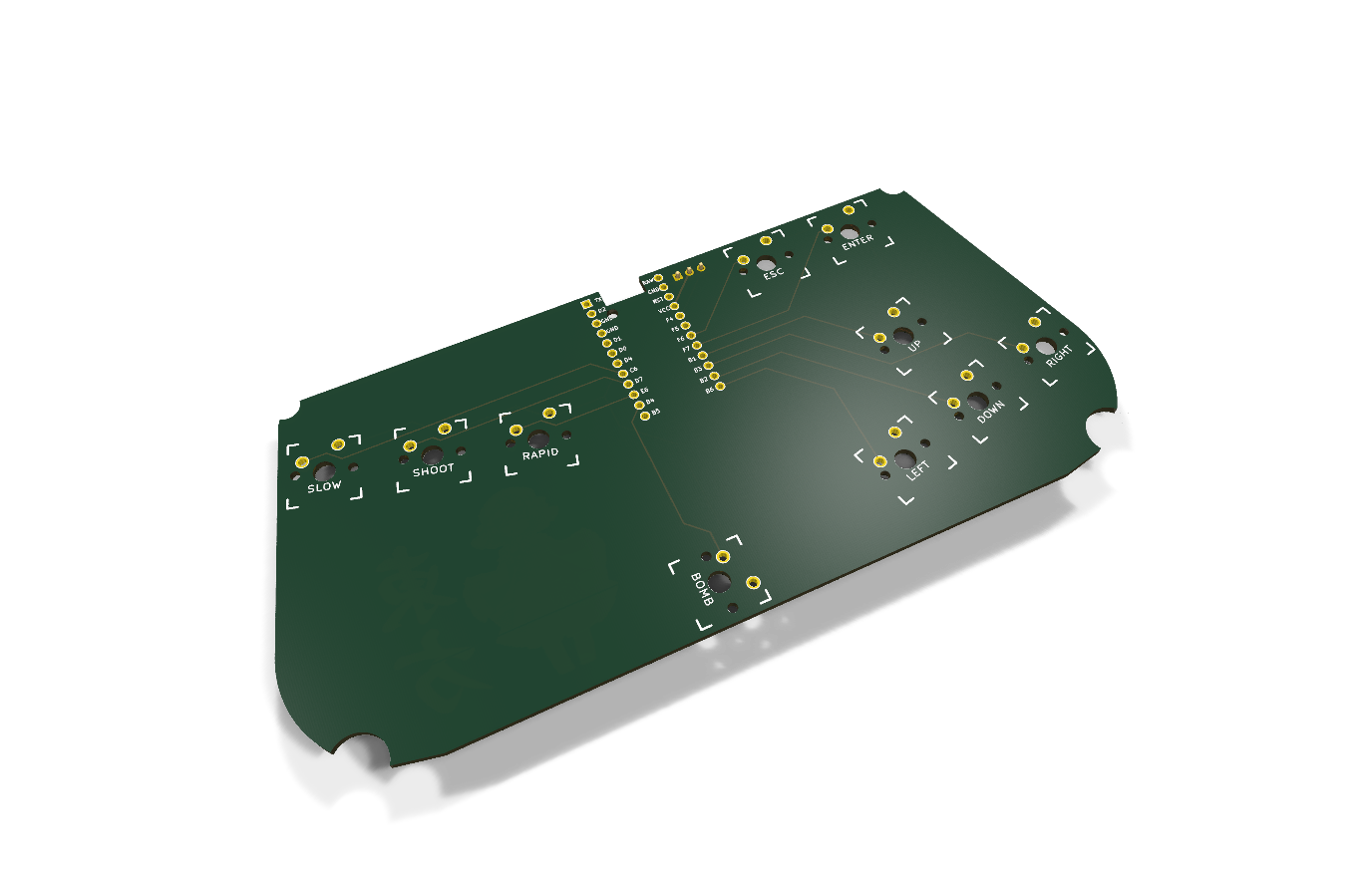

project.kicad_pcb.
No switches or keycaps: this is the board as manufactured.
What fits this board → Compare with another board →
Record 88% complete · 15 of 17 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware license
- ✓ Firmware license
- ✓ Documentation license
- ✓ Key pitch
- ✓ Soldering
- ✓ Firmware targets
- ✓ Summary
- ✓ Key wiring
- ✓ Hotswap
- ✗ Splay
- ✗ Stagger
Ergonomic gamepad to play Touhou Project games. Left-hand controls shoot/slow/bomb, and right hand controls movement. The bomb button is supposed to be pressed with the left thumb.
Layouts
- 10 keys
Spec
Shape
- Body
- unibody
- Splay
- — not recorded —
- Stagger
- — not recorded —
- Key spacing
- MX spacing · 19.05 × 19.05 mm
Switches
- Switch footprint
- MX
- Hotswap
- Mill-Max, or solder the switches in
Electronics
- Controller
- Pro Micro socket
- Connectivity
- Wireless with a nice!nano v2 — needs a ZMK config
- USB port
- USB-C or micro-USB, depends on the dev board
- Firmware
- QMK (pimentoso/touhoupad)
- Firmware targets
- ATmega32U4
- Key wiring
- 1×10 matrix, column-to-row diodes
- Room for
- — not recorded —
- Power switch
- no
- Exposed components
- — not recorded —
Building it
- Build method
- PCB
- Soldering
- through-hole (connector)
- SMD required
- no
Licensing
- Hardware
- all rights reserved — no license stated
- Firmware
- all rights reserved — no license stated
- Documentation
- all rights reserved — no license stated
