TH75
86 keys unibody
MX soldered ATmega32A QMK

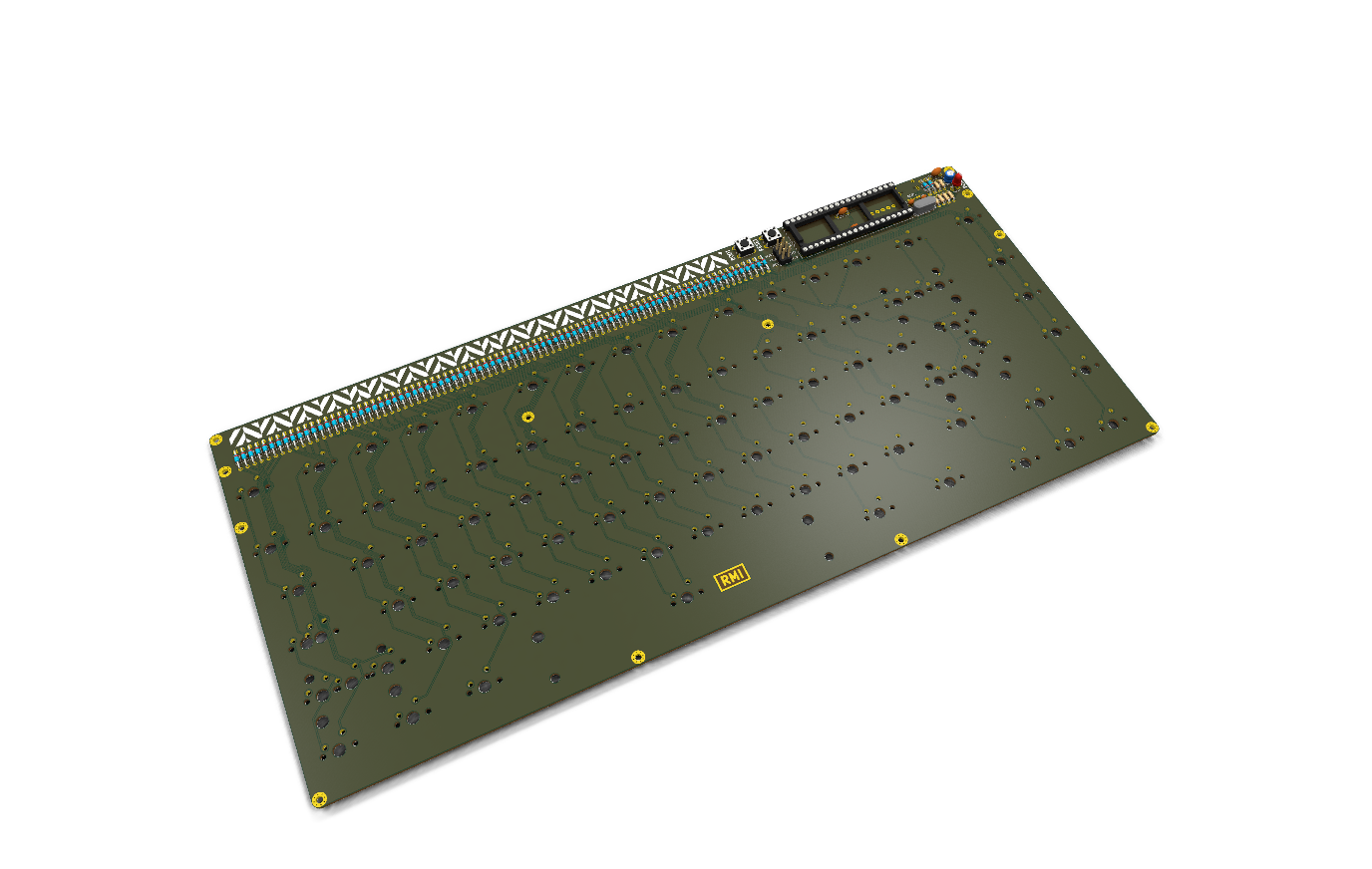

TH75.kicad_pcb.
No switches or keycaps: this is the board as manufactured.
What fits this board → Compare with another board →
Record 100% complete · 18 of 18 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware license
- ✓ Firmware license
- ✓ Documentation license
- ✓ Key pitch
- ✓ Soldering
- ✓ Soldered MCU
- ✓ Firmware targets
- ✓ Summary
- ✓ Key wiring
- ✓ Hotswap
- ✓ Splay
- ✓ Stagger
Through-hole 75% Keyboard
Layouts
- 86 keys
Spec
Shape
- Body
- unibody
- Splay
- no
- Stagger
- row-staggered
- Key spacing
- MX spacing · 19.05 × 19.05 mm
Switches
- Switch footprint
- MX
- Hotswap
- Mill-Max, or solder the switches in
Electronics
- Controller
- soldered ATmega32A
- Connectivity
- Wired — the soldered ATmega32A has no radio
- USB port
- — not recorded —
- Firmware
- QMK (rmi_kb/herringbone/pro)
- Firmware targets
- ATmega32A
- Key wiring
- 7×15 matrix, column-to-row diodes
- Room for
- — not recorded —
- Power switch
- no
- Exposed components
- yes
Building it
- Build method
- PCB
- Soldering
- SMD, fine-pitch (USB)
- SMD required
- yes
Licensing
- Hardware
- CC-BY-NC-SA-4.0
- Firmware
- CC-BY-NC-SA-4.0
- Documentation
- CC-BY-NC-SA-4.0
