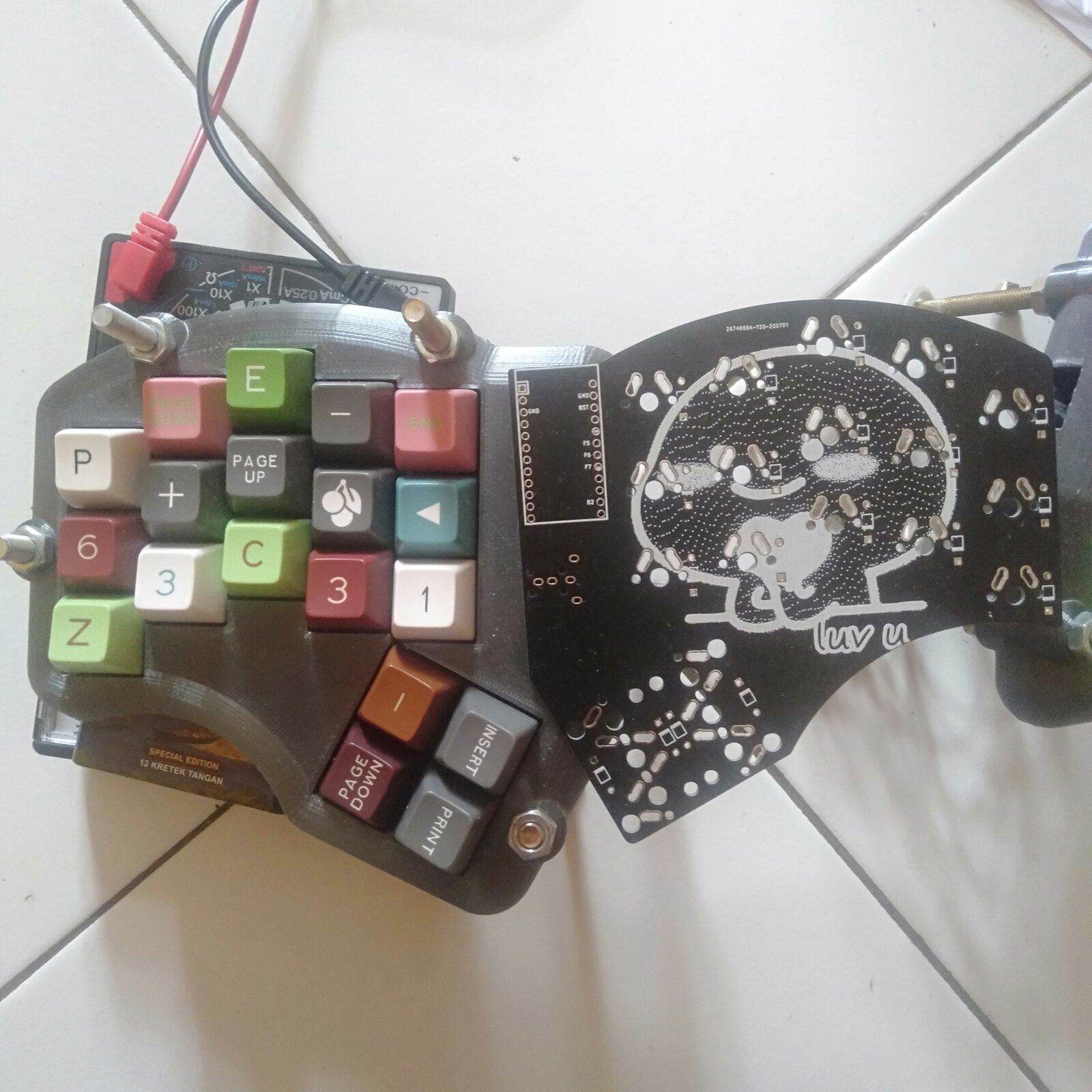

Squiggle Goldberg
38 / 34 keys split
Alps / MX Pro Micro socket QMK
What fits this board → Compare with another board →
Record 82% complete · 14 of 17 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware licence
- ✓ Firmware licence
- ✓ Documentation licence
- ✓ Key pitch
- ✓ Soldering
- ✗ Firmware targets
- ✗ Summary
- ✓ Key wiring
- ✗ Switch sockets
- ✓ Splay
- ✓ Stagger
No summary recorded.
Layouts
- 38 keys
- 34 keys
Spec
Shape
- Body
- split, 2 halves
- Split link
- TRRS cable
- Splay
- no
- Stagger
- column-staggered
- Key spacing
- 19.05 mm · MX-stem keycaps (OEM, SA, XDA, Cherry)
Switches
- Switch footprint
- Alps, MX
- Switch sockets
- — not recorded —
Electronics
- Controller
- Pro Micro socket
- Connectivity
- Wireless with a nice!nano v2 — needs a ZMK config
- USB port
- USB-C or micro-USB, depends on the dev board
- Firmware
- QMK (ibnuda/squiggle/rev1)
- Firmware targets
- — not recorded —
- Key wiring
- 4×5 matrix, column-to-row diodes
- Room for
- — not recorded —
Building it
- Build method
- PCB
- Soldering
- through-hole (connector)
- SMD required
- no
Licensing
- Hardware
- GPL-3.0-or-later
- Firmware
- GPL-3.0-or-later
- Documentation
- GPL-3.0-or-later
