Skeleton68rev2
68 keys unibody
MX soldered RP2040 QMK
Skeleton68rev2.kicad_pcb.

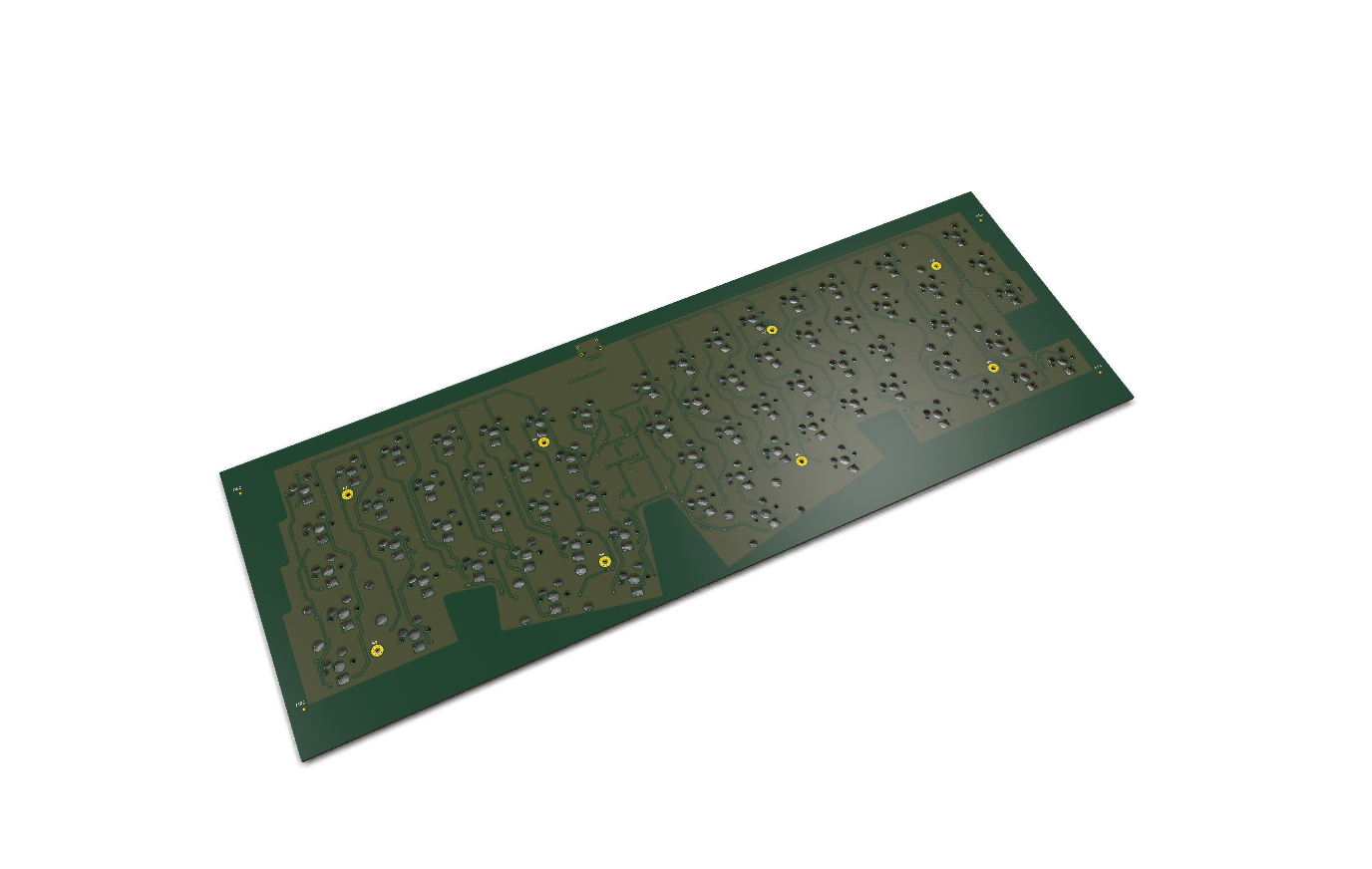

No switches or keycaps: this is the board as manufactured.
What fits this board → Compare with another board →
Record 100% complete · 18 of 18 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware license
- ✓ Firmware license
- ✓ Documentation license
- ✓ Key pitch
- ✓ Soldering
- ✓ Soldered MCU
- ✓ Firmware targets
- ✓ Summary
- ✓ Key wiring
- ✓ Hotswap
- ✓ Splay
- ✓ Stagger
アクリル積層ケースを使った Alice 配列のキーボードです。（開発時名称: Skeleton68rev2）
Layouts
- 68 keys
Spec
Shape
- Body
- unibody
- Splay
- no
- Stagger
- row-staggered
- Key spacing
- MX spacing · 19.05 × 19.05 mm
Switches
- Switch footprint
- MX
- Hotswap
- Kailh socket, Gateron socket
Electronics
- Controller
- soldered RP2040
- Connectivity
- Wired — the soldered RP2040 has no radio
- USB port
- USB-C
- Firmware
- QMK (skeletonkbd/frost68)
- Firmware targets
- RP2040
- Key wiring
- 5×16 matrix, column-to-row diodes
- Room for
- — not recorded —
- Power switch
- no
- Exposed components
- no
Building it
- Build method
- PCB
- Soldering
- SMD, fine-pitch (MCU, USB, passive, IC)
- SMD required
- yes
Licensing
- Hardware
- CC-BY-NC-4.0
- Firmware
- CC-BY-NC-4.0
- Documentation
- CC-BY-NC-4.0
