rosaline
from the Rosaline family
51 / 47 / 46 keys unibody
MX soldered ATmega328P QMK

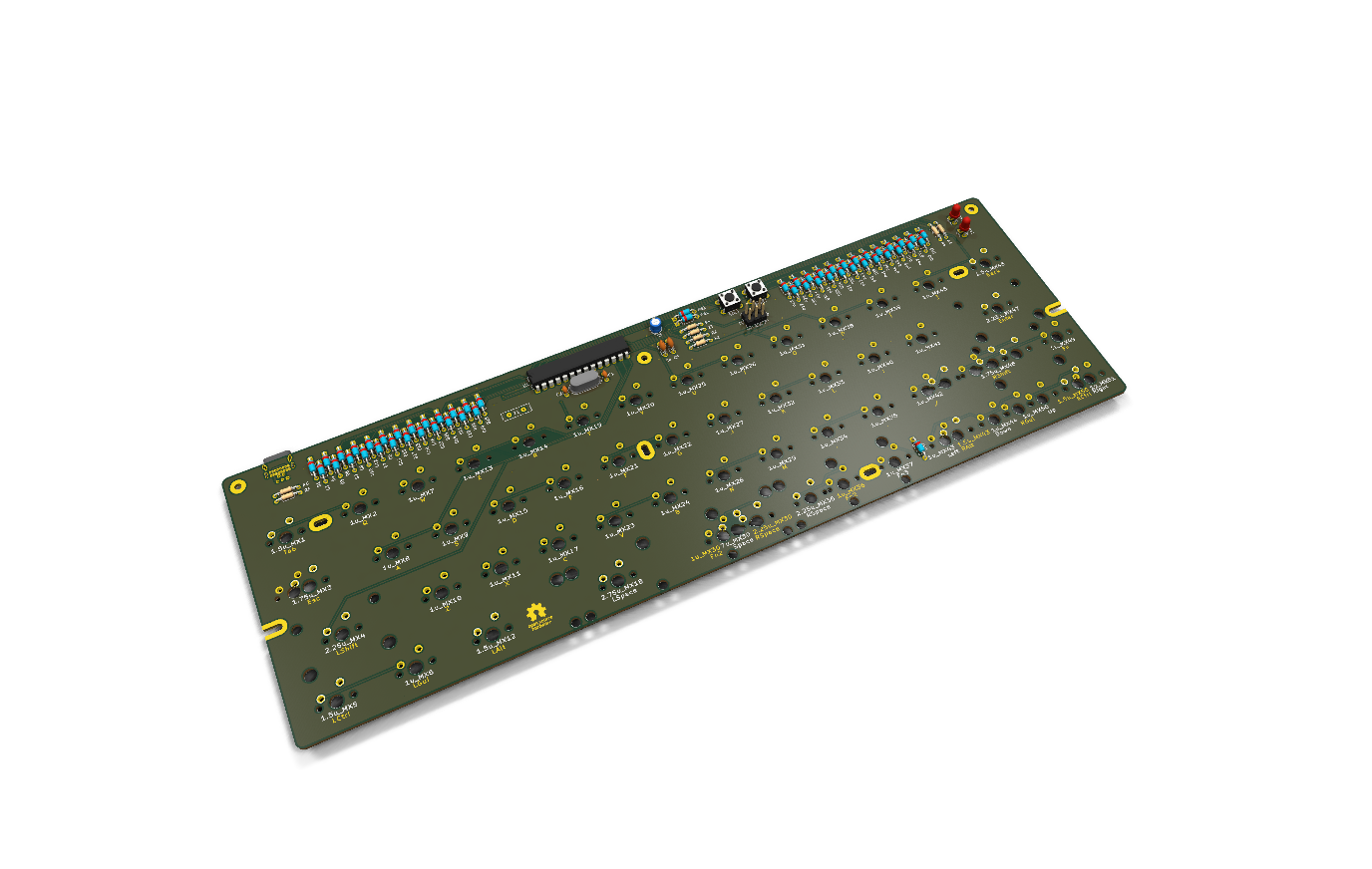

rosaline.kicad_pcb.
No switches or keycaps: this is the board as manufactured.
What fits this board → Compare with another board →
Record 83% complete · 15 of 18 fields
- ✓ Layout
- ✓ Switch footprint
- ✓ Build method
- ✓ Controller
- ✓ Body
- ✓ Firmware
- ✓ Hardware license
- ✓ Firmware license
- ✓ Documentation license
- ✓ Key pitch
- ✓ Soldering
- ✓ Soldered MCU
- ✓ Firmware targets
- ✗ Summary
- ✓ Key wiring
- ✓ Hotswap
- ✗ Splay
- ✗ Stagger
No summary recorded.
Layouts
- 51 keys
- 47 keys
- 46 keys
Spec
Shape
- Body
- unibody
- Splay
- — not recorded —
- Stagger
- — not recorded —
- Key spacing
- MX spacing · 19.05 × 19.05 mm
Switches
- Switch footprint
- MX
- Hotswap
- Mill-Max, or solder the switches in
Electronics
- Controller
- soldered ATmega328P
- Connectivity
- Wired — the soldered ATmega328P has no radio
- USB port
- on a separate USB daughterboard
- Firmware
- QMK (peej/rosaline/staggered)
- Firmware targets
- ATmega328P
- Key wiring
- 8×8 matrix, column-to-row diodes
- Room for
- — not recorded —
- Power switch
- no
- Exposed components
- yes
Building it
- Build method
- PCB
- Soldering
- through-hole (MCU, USB, LED, diode, connector, other)
- SMD required
- no
Licensing
- Hardware
- MIT
- Firmware
- MIT
- Documentation
- MIT
